Home > Products > Ceramic sleeve/ring > Wear Resistant Alumina Ceramic Tubes/ceramic Rods

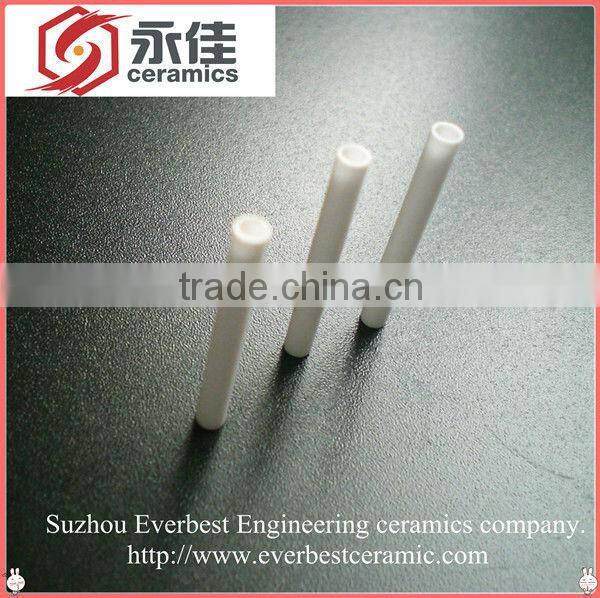

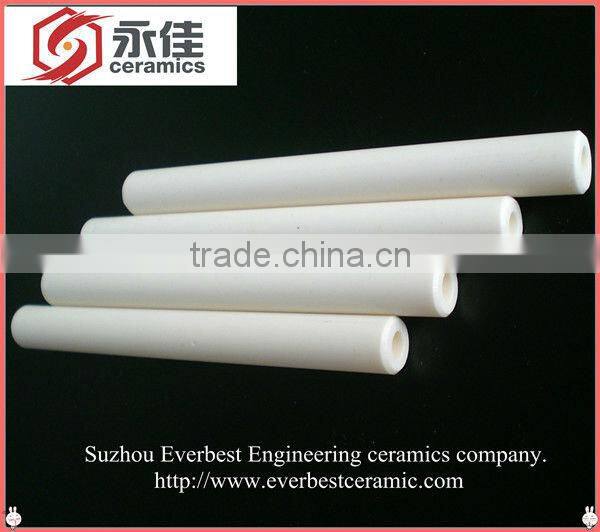

Wear Resistant Alumina Ceramic Tubes/ceramic Rods
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Type | Ceramic Tubes | |
| Application | Structure Ceramic | |||
| Brand Name | EB |
Product Description
Specifications
1.Material:95% Alumina2.Method of moulding:drying pressing
3.Polishing surface
4,Wear resistance, customizable
High wear resistant Alumina ceramic tubes
Feature
Alumina ceramic pipe has the advantages of high wear-resisting,good corrosion resistance , high intensity , precision process, good smoothness, polishing surface and so on.It widely used in a variety of mechanical equipment.
Property
Items | Unit | 95%Al2O3 | 99.5%Al2O3 |
Density | g/cm3 | 3.7 | 3.9 |
Flexural Strength | MPa | 313 | 340 |
Compressive Strength | MPa | 3400 | 3600 |
Modulus of Elasticity | GPa | 350 | 380 |
Impact Resistance | MPa·m1/2 | 4 | 5.1 |
Weibull Modulus | m | 10 | 10 |
Vickers Hardness | HV0.5 | 1800 | 1900 |
Thermal Conductivity | W/mk | 24 | 27 |
Highest Application Temperature | °C | 1600 | 1750 |
Volume Resistivity at 20°C | Ω.cm20 | >1014 | >1014 |
Dielertric strength | KV/mm | 20 | 25 |
Thermal expansion | X10-6/K | 5.0-8.3 | 5.4-8.3 |
Forming methods includes
1,drying pressing
2,isostatic pressing
3,hot pressing casting
The application of our product
1, Ceramic shaft for aquatic animals equipment filter pump
2, Ceramic plunger for high pressure cleaner.
3,Wearlessness,resistant acid-base and high intensity ceramic assembly apply to petroleum ,chemical and chemical industry.
4,Wearlesness, corrosion resistance parts apply toprecisionmachine.
Remarks
Customized production is aviable, for more information, please do not hesitate to tell me.Dimension, Tolerance, Surface Roughness, Concentricity, Perpendicularity and otherspecification are upon your requirements.
Contact Us
- Suzhou Everbest Engineering Ceramics Co., Ltd.
- Contact nameTaicy Diao Chat Now
- Phone86-512-67261802
- AddressCaofeng Road, Xukou Town, Wuzhong Area, Suzhou, Jiangsu
