Home > Products > Ceramic rod ,shaft > High Polish With Good Density Alumina Ceramic Sleeve and Shaft

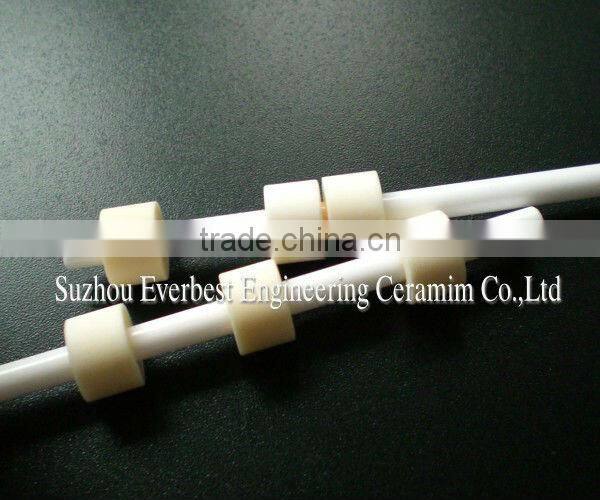

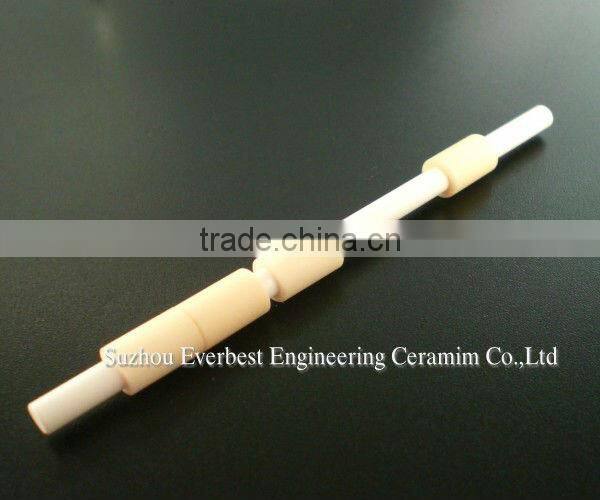

High Polish With Good Density Alumina Ceramic Sleeve and Shaft
- SHANGHAI
- T/T Credit Card PayPal
You May Like
-
High Purity 99.5% Industrial Alumina Ceramic
-
Wear Resistance Industrial 99%Alumina/Ceramic Piston/Shaft/Rods
-
Machinable High Temperature Zirconia Ceramic Rods Quality Choice
-
High Purity Polished Machinable 99% Al2o3 Tube
-
High Purity Mechanical Pump Ceramic Shaft
-
Precision Alumina Ceramic Plunger Pump
Product Details
| Place of Origin | Jiangsu, China | Type | Ceramic Rods | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | Custome design | Brand Name | EB |
Product Description
Specifications
1.Material:99% Alumina2.Wear resistance,
3.High mechanical strenght
4,Custom design
5,Eco-friendly,favourable price
Feature
Alumina Ceramic bushing and shaft has the advantages of super hardness,high wear-resisting,good corrosion resistance ,high temperature tolerance,precision process, high mechanical strength, good chemical stability,good smoothness, mechanical seal good, and so on.
Property
Items | Unit | 95%Al2O3 | 99.5%Al2O3 |
Density | g/cm3 | 3.7 | 3.9 |
Flexural Strength | MPa | 313 | 340 |
Compressive Strength | MPa | 3400 | 3600 |
Modulus of Elasticity | GPa | 350 | 380 |
Impact Resistance | MPa·m1/2 | 4 | 5.1 |
Weibull Modulus | m | 10 | 10 |
Vickers Hardness | HV0.5 | 1800 | 1900 |
Thermal Conductivity | W/mk | 24 | 27 |
Highest Application Temperature | °C | 1600 | 1750 |
Volume Resistivity at 20°C | Ω.cm20 | >1014 | >1014 |
Dielertric strength | KV/mm | 20 | 25 |
Thermal expansion | X10-6/K | 5.0-8.3 | 5.4-8.3 |
Forming methods includes
1,Drying pressing
2,Isostatic pressing
3,Hot pressing casting
The application of our product
1, Ceramic shaft for aquarium equipment filter pump
2, Ceramic plunger for high pressure cleaner.
3,Wearlessness,resistant acid-base and high intensity ceramic assembly apply to petroleum ,chemical and chemical industry.
4,Wearlesness, corrosion resistance parts apply to precision machine.
Remarks
Customized production is available, for more information, please do not hesitate to tell me.Dimension, Tolerance, Surface Roughness, Concentricity, Perpendicularity and other specification are upon your requirements.
Contact Us
- Suzhou Everbest Engineering Ceramics Co., Ltd.
- Contact nameTaicy Diao Chat Now
- Phone86-512-67261802
- AddressCaofeng Road, Xukou Town, Wuzhong Area, Suzhou, Jiangsu
