Home > Products > Ceramic rod ,shaft > High Strength Zirconia Ceramic Bar
High Strength Zirconia Ceramic Bar
- SHANGHAI
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Type | Ceramic Plates | |
| Application | Industrial Ceramic | |||
| Model Number | Customizable | Brand Name | Everbest |
Product Description
Specifications
1.Material:zirconia2.Wear resistance
3.High mechanical strenght
4,Custom design
5,Eco-friendly

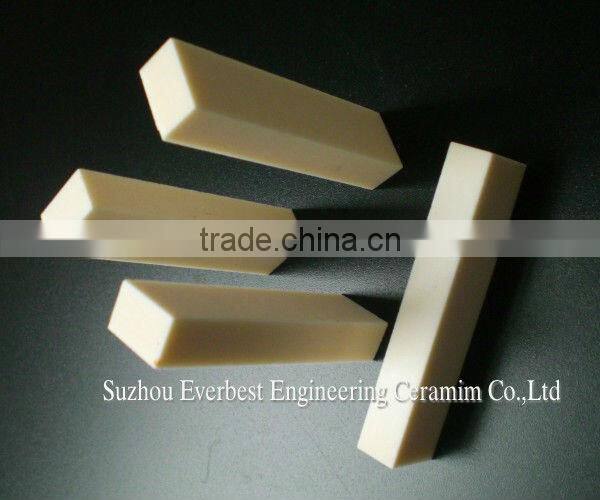

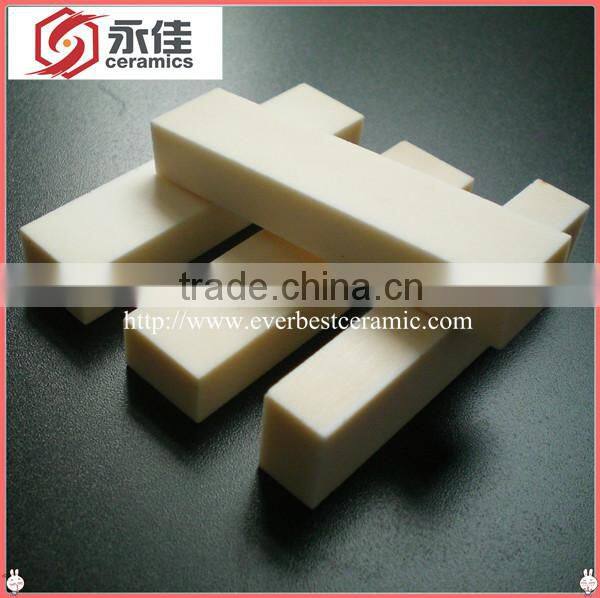

High strength zirconia ceramic bar
Feature
Zirconia Ceramic bar has the advantages of super hardness,high wear-resisting,good corrosion resistance ,high temperature tolerance,precision process, high mechanical strength, good chemical stability,good smoothness, mechanical seal good, and so on.
Property
Items | Unit | 95%Al2O3 | 99.5%Al2O3 |
Density | g/cm3 | 3.7 | 3.9 |
Flexural Strength | MPa | 313 | 340 |
Compressive Strength | MPa | 3400 | 3600 |
Modulus of Elasticity | GPa | 350 | 380 |
Impact Resistance | MPa·m1/2 | 4 | 5.1 |
Weibull Modulus | m | 10 | 10 |
Vickers Hardness | HV0.5 | 1800 | 1900 |
Thermal Conductivity | W/mk | 24 | 27 |
Highest Application Temperature | °C | 1600 | 1750 |
Volume Resistivity at 20°C | Ω.cm20 | >1014 | >1014 |
Dielertric strength | KV/mm | 20 | 25 |
Thermal expansion | X10-6/K | 5.0-8.3 | 5.4-8.3 |
Application
Ceramic bar has the advantage of Wearlessness,resistant acid-base and high intensity ceramic assembly apply to petroleum ,chemical and chemical industry.it has good Wearlesness, corrosion resistance parts apply to precision machine.
More about us.
Suzhou Everbest Engineering ceramic Co., Ltd, which has more than 14 years experience in industrial ceramic area, a Professional manufacturer in pump accessories such as ceramic rod, shaft, ceramic sleeve, ceramic sheet, ceramic plunger, ceramic bushing etc.
With more than 100 skilled workshop staffs and several experienced engineers, with testing room available.
Our aim is to make the most durable and reliable products with stable price to meet customers' demand.
Remarks
Customized production is available, for more information, please do not hesitate to tell me.Dimension, Tolerance, Surface Roughness, Concentricity, Perpendicularity and other specification are upon your requirements.
