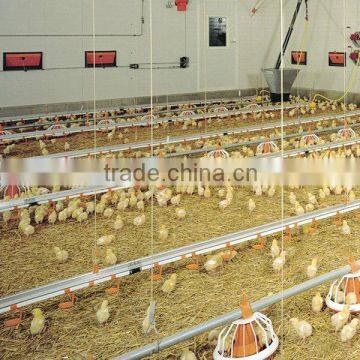

Full Set Automatic Poultry Equipment for Broiler Poultry Farm House

FOB Price

US$ 5,000 - 30,000 / Piece

1 Piece(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	Superherdsman
Model Number	Customized

Product Description

Shandong Superherdsman Husbandry Machinery Co., Ltd. was founded in September 2009, is located in Wudi County Economic Development Zone, Shandong Province, China. The company is a production-oriented enterprise, which can integrate poultry equipment development, production, sales, installation, technical services, import &export and poultry farm construction together to provide comprehensive service. The company can provide international advanced level ground feeding and cage feeding equipments for broilers, breeders and layers and ducks. The rich products line can meet different requirements of customers, and can provide customized services according to the customer’s needs. The company’s products sell well in china and have already been exported to more than 30 countries and regions around the world .

The Poultry house equipments composed of :

1) Main Feeding System

2) Pan Feeding System

3) Nipple Drinking System

4) Ventilation System

5) Environment Control System

6) Cooling Pad System

7) Spaying System

8) Curtain System

9) Hot Blast Stove Heating System

1.Main Feeding System

This system delivers feed from the silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line which control the motor on and off automatical to release automatic delivery.

Consists	Item Name	Specifications	Remarks
silo( or big feed hopper), drive system, sensor, main feeding line pipe, auger	feed silo	8t/10t/14t	1.Silo foundation and the embedded parts should be borne by the buyer; 2.Feed silo adopts galvanized steel belt or fiber reinforced plastic, which is customized by the customer's demand;
	big feed hopper	600kg/800kg
	drive system	Italy motor, 0.75kW
	sensor	world top class products
	main feeding line pipe	world top class products
	auger	world top class products

2.Pan Feeding System

This system deliver feed automatically through motor under the control of feed sensor,which ensure birds feeding during whole growing period.

Consists	Item Name	Specifications	Remarks
sub feed bin(with accessories), drive system, sensor, four holes hot galvanized pipe, feed pan, winch handle, manual lifter winch, auger	sub feed bin(with accessories)	70kg	1.Special purpose high quality drive motor;2.World advanced concept designed feeding pan;
	drive system	Italy motor, 0.75kw
	sensor	world top class products
	four holes hot galvanized pipe	3m/set
	feed pan	with feed limit leaf
	winch handle	MRS products
	manual lifter winch	MRS products
	auger	world top class products

3.Nipple Drinking System

This system can provide fresh and clean water for poultry which is crucial for the growth of poultry.The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.

Consists	Item Name	Specifications	Remarks
water line front-end module, doser, drinking system main inflow pipe, pressure regulator connecting hose, middle pressure regulator parts, nipples drinking line, lifter winch, winch handle, drinking line hanging parts	water line front-end module	pure material good quality pipe	1.Pure raw materials drinking water pipe.
	doser(with accessories)	world top class products
	dosing pump(with accessories)	world top class products
	dosing bucket	100kg
	drinking system main inflow pipe	pure material good quality pipe
	pressure regulator connecting hose	pure material good quality products
	middle pressure regulator parts	world top class products
	nipples drinking line	12nipples/3m, 16nipples/4m
	lifter winch	MRS1500
	winch handle	MRS550
	drinking line hanging parts	reliable and long service life

4.Ventilation System

This system controls climate conditions,fresh air,humidity and temperature in poultry shed,it is vital for growing birds.This system include Poultry house fan, Cooling pad,Air inlet window.

Consists	Item Name	Specifications	Remarks
50" fan, 36" fan, frequency converter, air inlet, air inlet motor, manual winch, right and left cart with accessories	50" fan	SIEMENS motor	1.Special production process to ensure the smooth running of low noise and no vibration;2.Japan imported belt, to ensure long-term use without deformation;3.Air inlet adopts reasonable design mechanism, easy to open, good seal and heat preservation performance.
	36" fan	SIEMENS motor
	frequency converter	3kW
	air inlet	three direction
	air inlet motor	reliable and long service life
	manual winch	H-1500-B
	right and left cart with accessories	reliable and long service life

5.Environment Control System

This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working mode according to the local climate and raising environment.

Consists	Item Name	Specifications	Remarks
environmental controller, environmental sensor, humidity sensor, negative pressure gauge, power box, watt-hour meter box, light regulator, main control box(with alarm), sub control box, UPS power supply group(regulator control box use), lighting system(bulb not included), wires and fixtures	environmental controller	Temptron607/610/616, AC-2000 PLUS, Rotem Platinum PLUS	1.Main parts all adopts world class products to ensure the reliability;
	environmental sensor	world top class products
	humidity sensor	world top class products
	negative pressure gauge	world top class products
	power box	reliable and long service life
	watt-hour meter box	reliable and long service life
	light regulator	60A
	main control box(with alarm)	reliable and long service life
	sub control box	reliable and long service life
	UPS power supply group(regulator control box use)	with battery and charger
	lighting system( light bulb not included)	for boiler
	wires and fixtures	reliable and long service life

6.Cooling Pad System

Cooling pad surface coated with special material, which can ensure the cooling pad surface no moss, and inhibit the growth of bacteria; The top set with dredge water cooling pad, to make sure uniform water spread.

Consists	Item Name	Specifications	Remarks
cooling pad (aluminum alloy frame), protective curtain cloth, curtain system(include motor), circulating water system, filter, pump	cooling pad (aluminum alloy frame)	1.66m0.15m , 1.96m0.15m	1.Cooling pad paper adopts the Finland import pulp, breeding special purpose corrugated angle, 2-3 times cooling effect of the ordinary cooling pad;2.Cooling pad glue uses Taiwan brand product, strong adhesion strength, ensure the cooling pad's hardness and toughness, durable;3.The frame adopts aluminum alloy material, anti rust.
	protective curtain cloth	reliable and long service life
	curtain system(include motor)	reliable and long service life
	circulating water system	reliable and long service life
	filter	Taiwan brand product, reliable and long service life
	pump	0.75kw,anti block pump

7.Spraying System

This system effectively cools,humidifies,dedusts and disinfects the henhouse(the temerature is quickly reduced by 3-8 degrees centigrade within a few minutes).

Consists	Item Name	Specifications	Remarks
3/8'' copper tube, nylon tube, double opening spaying sitting, copper spaying nozzle, copper T-connection part, ball valve, valve connection, direct connection, L-shaped connection, mobile main spaying machine, high pressure hose, high pressure slow shock tube, filter	3/8'' copper tube	tube thickness: 1mm	1.The main spaying machine adopts Taiwan brand product, high temperature automatic protection device, the water absorption capacity is 20-38L/minute;2.Nylon tupe adopts the import products, pressurebearing capacity is 30-90kg, corrosion resistance;3.Pipeline and spraying sitting 's pressure bearing capacity is 100kg;4.Filtration system using honeycomb filter, 400 hole filtering mesh.
	nylon tube	tube thickness: 2.7mm
	double opening spaying sitting	copper
	copper spaying nozzle	3/8'', 25-30mm
	copper T-connection part	3/8''
	ball valve	3/8''
	valve connection	3/8''
	direct connection	copper
	L-shaped connection	copper
	mobile main spaying machine	3.7kW
	high pressure hose	reliable and long service life
	high pressure slow shock tube	reliable and long service life
	filter	reliable and long service life

8.Curtain System

Curtain system is used for the open structure poultry house with no side wall, which is mainly used in the area which has high temperature weather all the year round.

Consists	Item Name	Specifications	Remarks
curtain cloth, curtain drive system	curtain cloth	reliable and long service life	1.The drive system is optional, can use motor drive system or manual drive system, customerized per the customer's demand.
curtain cloth, curtain drive system	curtain drive system	reliable and long service life

9.Hot Blast Stove Heating System

In cold weather, hot blast stove heating system is widely used for heating the poultry house, which has good performance and can save the heating cost.

Consists	Item Name	Specifications	Remarks
hot blast stove	hot blast stove	MRE products	1.Equiped with smoke pipe .

We can also provide you below service:

1. Poultry house site selection;

2. Poultry house design and construction;

3. Poultry equipment installation;

4. Poultry house worker training;

5. Rearing technology guidance;

6. After-sale service;
