Full Set Automatic Broiler Feeding and Nipple Drinking System
- 100 Set / Sets per Month
- Qingdao
- T/T
You May Like
-
Full Set High Quality Automatic Poultry Feeder and Drinker Equipment for Broiler
-
Full Set Automatic Poultry Equipment for Broiler Poultry Farm House
-
Complete Set Automatic Poultry House Equipment for Chicken Breeding
-
High quality automatic poultry farm equipment for broiler
-
Poultry shed equipment
-
Full Set High Quality Poultry Feeding and Nipple Drinking System for Chicken
Product Details
| Place of Origin | Shandong, China | Brand Name | Superherdsman | |
| Model Number | Customized |
Product Description
Shandong Superherdsman Husbandry Machinery Co., Ltd. was founded in September 2009, is located in Wudi County Economic Development Zone, Shandong Province, China. The company is a production-oriented enterprise, which can integrate poultry equipment development, production, sales, installation, technical services, import &export and poultry farm construction together to provide comprehensive service. The company can provide international advanced level ground feeding and cage feeding equipments for broilers, breeders and layers and ducks. The rich products line can meet different requirements of customers, and can provide customized services according to the customer’s needs. The company’s products sell well in china and have already been exported to more than 30 countries and regions around the world .
The Poultry house equipments composed of :
1) Main Feeding System
2) Pan Feeding System
3) Nipple Drinking System
4) Ventilation System
5) Environment Control System
6) Cooling Pad System
7) Spaying System
8) Curtain System
9) Hot Blast Stove Heating System
1.Main Feeding System
This system delivers feed from the silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line which control the motor on and off automatical to release automatic delivery.
Consists | Item Name | Specifications | Remarks |
silo( or big feed hopper), drive system, sensor, main feeding line pipe, auger | feed silo | 8t/10t/14t | 1.Silo foundation and the embedded parts should be borne by the buyer; 2.Feed silo adopts galvanized steel belt or fiber reinforced plastic, which is customized by the customer's demand; |
big feed hopper | 600kg/800kg | ||
drive system | Italy motor, 0.75kW | ||
sensor | world top class products | ||
main feeding line pipe | world top class products | ||
auger | world top class products |
2.Pan Feeding System
This system deliver feed automatically through motor under the control of feed sensor,which ensure birds feeding during whole growing period.
Consists | Item Name | Specifications | Remarks |
sub feed bin(with accessories), drive system, sensor, four holes hot galvanized pipe, feed pan, winch handle, manual lifter winch, auger | sub feed bin(with accessories) | 70kg | 1.Special purpose high quality drive motor;2.World advanced concept designed feeding pan; |
drive system | Italy motor, 0.75kw | ||
sensor | world top class products | ||
four holes hot galvanized pipe | 3m/set | ||
feed pan | with feed limit leaf | ||
winch handle | MRS products | ||
manual lifter winch | MRS products | ||
auger | world top class products |

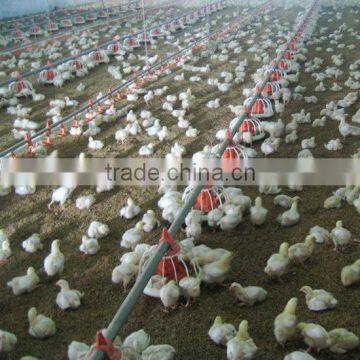

3.Nipple Drinking System
This system can provide fresh and clean water for poultry which is crucial for the growth of poultry.The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.
Consists | Item Name | Specifications | Remarks |
water line front-end module, doser, drinking system main inflow pipe, pressure regulator connecting hose, middle pressure regulator parts, nipples drinking line, lifter winch, winch handle, drinking line hanging parts | water line front-end module | pure material good quality pipe | 1.Pure raw materials drinking water pipe. |
doser(with accessories) | world top class products | ||
dosing pump(with accessories) | world top class products | ||
dosing bucket | 100kg | ||
drinking system main inflow pipe | pure material good quality pipe | ||
pressure regulator connecting hose | pure material good quality products | ||
middle pressure regulator parts | world top class products | ||
nipples drinking line | 12nipples/3m, 16nipples/4m | ||
lifter winch | MRS1500 | ||
winch handle | MRS550 | ||
drinking line hanging parts | reliable and long service life |
4.Ventilation System
This system controls climate conditions,fresh air,humidity and temperature in poultry shed,it is vital for growing birds.This system include Poultry house fan, Cooling pad,Air inlet window.
Consists | Item Name | Specifications | Remarks |
50" fan, 36" fan, frequency converter, air inlet, air inlet motor, manual winch, right and left cart with accessories | 50" fan | SIEMENS motor | 1.Special production process to ensure the smooth running of low noise and no vibration;2.Japan imported belt, to ensure long-term use without deformation;3.Air inlet adopts reasonable design mechanism, easy to open, good seal and heat preservation performance. |
36" fan | SIEMENS motor | ||
frequency converter | 3kW | ||
air inlet | three direction | ||
air inlet motor | reliable and long service life | ||
manual winch | H-1500-B | ||
right and left cart with accessories | reliable and long service life |
5.Environment Control System
This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working mode according to the local climate and raising environment.
Consists | Item Name | Specifications | Remarks |
environmental controller, environmental sensor, humidity sensor, negative pressure gauge, power box, watt-hour meter box, light regulator, main control box(with alarm), sub control box, UPS power supply group(regulator control box use), lighting system(bulb not included), wires and fixtures | environmental controller | Temptron607/610/616, AC-2000 PLUS, Rotem Platinum PLUS | 1.Main parts all adopts world class products to ensure the reliability; |
environmental sensor | world top class products | ||
humidity sensor | world top class products | ||
negative pressure gauge | world top class products | ||
power box | reliable and long service life | ||
watt-hour meter box | reliable and long service life | ||
light regulator | 60A | ||
main control box(with alarm) | reliable and long service life | ||
sub control box | reliable and long service life | ||
UPS power supply group(regulator control box use) | with battery and charger | ||
lighting system( light bulb not included) | for boiler | ||
wires and fixtures | reliable and long service life |
6.Cooling Pad System
Cooling pad surface coated with special material, which can ensure the cooling pad surface no moss, and inhibit the growth of bacteria; The top set with dredge water cooling pad, to make sure uniform water spread.
Consists | Item Name | Specifications | Remarks |
cooling pad (aluminum alloy frame), protective curtain cloth, curtain system(include motor), circulating water system, filter, pump | cooling pad (aluminum alloy frame) | 1.66m*0.15m , 1.96m*0.15m | 1.Cooling pad paper adopts the Finland import pulp, breeding special purpose corrugated angle, 2-3 times cooling effect of the ordinary cooling pad;2.Cooling pad glue uses Taiwan brand product, strong adhesion strength, ensure the cooling pad's hardness and toughness, durable;3.The frame adopts aluminum alloy material, anti rust. |
protective curtain cloth | reliable and long service life | ||
curtain system(include motor) | reliable and long service life | ||
circulating water system | reliable and long service life | ||
filter | Taiwan brand product, reliable and long service life | ||
pump | 0.75kw,anti block pump |
7.Spraying System
This system effectively cools,humidifies,dedusts and disinfects the henhouse(the temerature is quickly reduced by 3-8 degrees centigrade within a few minutes).
Consists | Item Name | Specifications | Remarks |
3/8'' copper tube, nylon tube, double opening spaying sitting, copper spaying nozzle, copper T-connection part, ball valve, valve connection, direct connection, L-shaped connection, mobile main spaying machine, high pressure hose, high pressure slow shock tube, filter | 3/8'' copper tube | tube thickness: 1mm | 1.The main spaying machine adopts Taiwan brand product, high temperature automatic protection device, the water absorption capacity is 20-38L/minute;2.Nylon tupe adopts the import products, pressurebearing capacity is 30-90kg, corrosion resistance;3.Pipeline and spraying sitting 's pressure bearing capacity is 100kg;4.Filtration system using honeycomb filter, 400 hole filtering mesh. |
nylon tube | tube thickness: 2.7mm | ||
double opening spaying sitting | copper | ||
copper spaying nozzle | 3/8'', 25-30mm | ||
copper T-connection part | 3/8'' | ||
ball valve | 3/8'' | ||
valve connection | 3/8'' | ||
direct connection | copper | ||
L-shaped connection | copper | ||
mobile main spaying machine | 3.7kW | ||
high pressure hose | reliable and long service life | ||
high pressure slow shock tube | reliable and long service life | ||
filter | reliable and long service life |
8.Curtain System
Curtain system is used for the open structure poultry house with no side wall, which is mainly used in the area which has high temperature weather all the year round.
Consists | Item Name | Specifications | Remarks |
curtain cloth, curtain drive system | curtain cloth | reliable and long service life | 1.The drive system is optional, can use motor drive system or manual drive system, customerized per the customer's demand. |
curtain drive system | reliable and long service life |
9.Hot Blast Stove Heating System
In cold weather, hot blast stove heating system is widely used for heating the poultry house, which has good performance and can save the heating cost.
Consists | Item Name | Specifications | Remarks |
hot blast stove | hot blast stove | MRE products | 1.Equiped with smoke pipe . |
We can also provide you below service:
1. Poultry house site selection;
2. Poultry house design and construction;
3. Poultry equipment installation;
4. Poultry house worker training;
5. Rearing technology guidance;
6. After-sale service;
