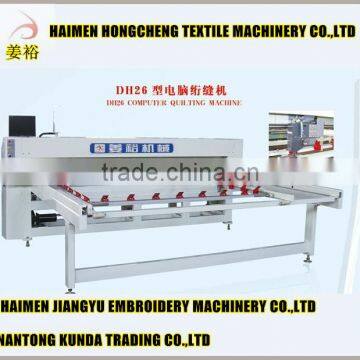

DH26 COMPUTER QUILTING MACHINE

FOB Price

USD $7700.00 - $7700.00 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	JIANGYU	Model Number	DH-26
Max Sewing Speed	2000rpm	Max Sewing Thickness	1200gsm
Number of Head	Single Head	Moving Style	Head Moved
Voltage	220V	Power(W)	50Hz1.5Kw
Dimension(LWH)	5.8m4.2m1.4m	Weight	1000KG
Certification	CE Certificate	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Type	DH26-2628	DH26-2832	DH26-3032	DH26-3535
Quiliting Size	2.6*2.8m Max	2.8*3.2m Max	3.0*3.2m Max	3.5*3.5mMax
Needle Drop Size	2.4*2.6m Max	2.6*3.0m Max	2.8*3.0m Max	3.3*3.3m Max
Sewing-Machine	Single-line style, double-line lock style, big Rotary Shuttle
Sewing Thick	1200g/m2(Max)
Sewing Speed	2000(SPM) (Stitch)2~7mm
Needle	MR5 18~22#
Dimensions	541.4m	5.44.21.4m	5.44.41.4m	5.851.4m
Power	220VAC,50Hz,1.5KW
Weight	1700KG	1800KG	1900KG	2000KG

FUNCTION:

1.Any pattern auto-quilting.

2.Quilting with equal stitch, and it is easy to amend stitch and speed.

3.Clockwise and counterclockwise quilting and empty forward or backward or threading button is provided.

4.The needle automatically stops at high position when the machine stops.

5.It automatically returns to original point.

6.It has the function of pattern tracing to make the needle position quickly.

7.It has the function to collect statistics of work and time.

8.It has the function of browsing patterns, and through setting up the pattern side, it can automatically enlarge or reduce patterns.

9.It is equipped with USB which can store more than 200 designs.
