Home > Products > Shotcrete machine series > Hot Sale Spray Concrete Machine
Hot Sale Spray Concrete Machine
- tianjin shanghai
 - T/T

You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | HR | Model Number | HPZ |
Product Description
Specifications
Hot sale spray concrete machineThrough the rotor, unobstructed discharging
Low-voltage high-speed conveying

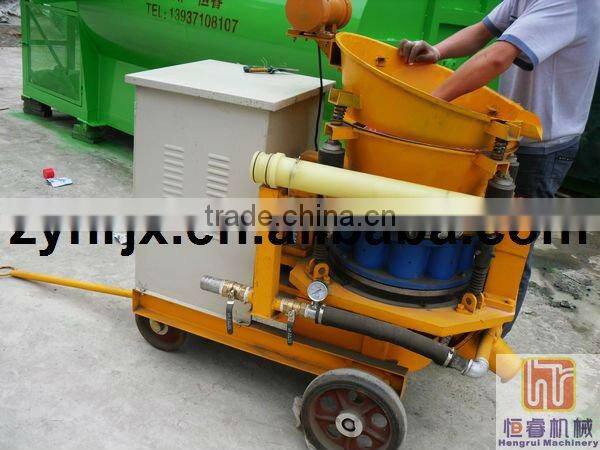

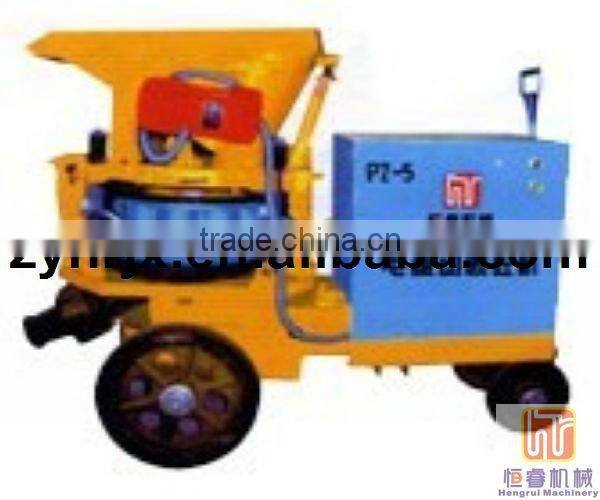

Hot sale spray concrete machine
Application:
This shotcrete machine is widely used in construction for mines, coal mines, tunnel, subway, swimming poor, culverts, hydropower projects, and some construction operations.
Features:
Comprehensive, the variety is complete, great, three kinds of medium and small models and continuous types of spiral prepare burden mixers, suit users to select for use according to different execution conditions.
Adopt the tide type or wet type to spray. Straight general formula rotor material adopts the high wear-resisting plastic material of the sizing with producing the material elbow, have dispelled the bonding of the machine and stopped up completely. Reduce the dust effectively, reduce the resilience.
It is low-voltage to adopt, the operation principle that the low-speed vortex air current sends, sprays at short range ,question of overcoming the tube, pulse of stopping up ,emanating etc, enable spraying the material to flow evenly, steadily, improve and gush out one layer of quality
The permanent safe equipment is especially suited to gushing out the homework and adding the steel to link the homework in tide, reduce the dust and resilience by a wide margin, improve the homework environment. The dust density is reduced to under 20, the resilience rate does not exceed 15% , can rise to gush out one layer of intensity 20-30 mpa.
Technical parameter
Item  | HPZ-5  | HPZ-7  | HPZ-9  |
Output  | 5m3/h  | 7m3/h  | 9m3/h  |
nv.dist  | 200m  | 200m  | 200m  |
Water cement ratio  | ≤0.4  | ≤0.4  | ≤0.4  |
Max.Aggregate.size  | φ15mm  | φ15mm  | φ20mm  |
Hose inner size  | φ50mm  | φ50mm  | φ65mm  |
Operating air pressure  | 0.2~0.4Mpa  | 0.2~0.4Mpa  | 0.2~0.4Mpa  |
Air consumption  | 7~8 m3/min  | 7~8 m3/min  | 10~12 m3/min  |
Motor power  | 5.5kw  | 6kw  | 7.5kw  |
Voltages  | 380v  | 380v  | 380v  |
Weight  | 550kg  | 700kg  | 850kg  |
