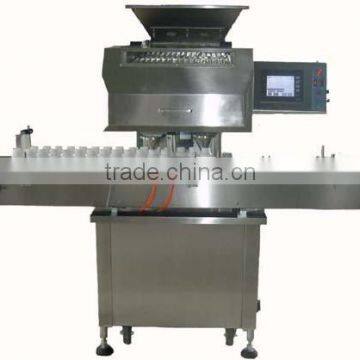

Tablet & capsule counting and filling machine

Specifications

GS-16 counts grain through 16 strips of channel,medicament can lay off through passing two classes automatically,filling medicines is uniform and counting tablets is precise,being sutiable for all kinds of single bottle filling quantity and tablet type,changing variety without

replacing any mould.

It adopts the OMRON  PLC  control and the sensitive technology of the CCD and its distinguishing rate is high,responding speed is fast,and the operating is the stepless timing.it is very convenient to operate;its control system is controlled by adopting the man machine

interface touch screen.Adopting international name brand  photo-electricity controlling system

,controls when bottles are lacking and blocking then cease automatically,the operating is stable and reliable.Materials touching with the medicine conforms to the requirement of GMP.

Features:

1. Speed up to 60 cpm based on 100-count bottle with vibration system.

2. Counter dscrepancies is less than 0.1%

3. Operation stable and low noise.

4. Bottle convey smoothly with single-track conveyor.

5. Full-set protecting device keep operation steady and reliable.

6. Touch screen control system which is easy to control.

7. Simple straight forward operator controls.

8. On-screen trouble description which is easy to solve.

9. Stainless steel frame.

Main technical data:

Capacity: 3000-6000 pieces/min based on 20-999 pieces/bottle

Medicament size: tablet >7mm,hard capsule:0#,1#,2#,3#,4# ,and soft capsule

Bottleneck size:>25MM

Bottle size: 35-60 mm

Motor power: 500W.220V/50-60HZ 1 phase

Weight: 600 kg

Overall size: 1800*1540*1600 mm
