Electric reach truck

FOB Price

USD $3,200 - $5,000 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	China
Brand Name	SUNRISE	Model Number	MFA
Type	Powered Pallet Truck	Power Souce	DC Motor
Rated Loading Capacity	2000KG	Max. Lifting Height	5500mm
Min. Lifting Height	30MM	Fork Length	1070MM
Fork Width	100MM	Overall Dimensions	308010902100MM
Certification	CE	After-sales Service Provided	Overseas third-party support available

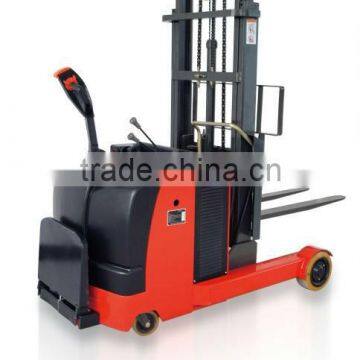

Electric Reach Truck
24V DC Driving Motor
Max Loading Capacity:2000kg
Max Lifting height: 5500mm

Descriptiom Model No.	MFA20-16	MFA20-24	MFA20-25	MFA20-30	MFA15-35	MFA15-40	MFA15-45
Load Capacity (KG)-H≤2500mm	2000	2000	2000	2000	1500	1500	1500
Load Capacity at Max. Height	2000	2000	2000	1800	1600	1200	800
Max. Lifting Height (MM)-H2	1600	2400	2500	3000	3500	4000	4500
Load center MM -C	500	500	500	500	500	500	500
Overall Length without pedal (MM)--L	3065				3065		3080
Overall Width (MM) -W2	1090				1090
Wheelbase (MM) --X	1665.5				1665.5
Height (MM)-Mast Lowered--H1	2140	1787	1837	2087	2337	2596	2846
Height (MM)-Mast Extended--H3	2455	3255	3355	3855	4355	4855	5355
Height (MM)-Fork --H4	60				60
Height (MM)-Pedal -H5	166				166
Front Overhang (MM)--Y	136.5				136.5
Fork Size L×W (MM)	1070*100				107010040
Between Forks (MM)--W1	200-660				200-660
Reach Stroke (MM)--S	700				700
Min. Turning Radius(MM)--Wa	1930				1930
90° Stacking Aisle(MM) (1000*1000 Pallet)--Ast	2895				2895		2910
Grade Ability %	6/9				6/9
Travel Speed km/h-Laden/unladen	4.0/5.8				4.0/5.8
Lifting Speed (mm/s)--Laden/Uladen	100/135				100/135		100/135
Driving Wheel (MM)	Φ215*75
Balance Wheel (MM)	Φ150*50
Front Wheel (MM)	Φ267*114
Battery V/AH-Domestic Brand	24/210
Charger V/A	24/30
Driving Motor (KW)	1.2				1.2
Lifting Motor (KW)	3.5
Service Weight (with battery) KG	1740	1835	1845	1865	1885	2010	2035
OPTIONAL	FAAM Battery,Arm Rest,Fork Tilting Function;Side Loading Battery;

....
