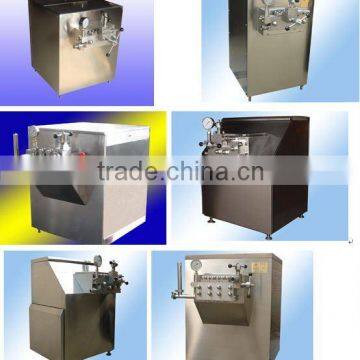

LH Series Sterilized Milk Special High Pressure Homogenizer
- shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | Minhua | |
| Model Number | LH | Application | Other, Emulsifier, Emulsifier | |
| Type | Other, Emulsifying Machine, Mixing Machine |
Product Description
Specifications
LH series condensed milk special high pressure homogenizerDescription
The LH series homogenizer is the new product developed by our company based on the up-to-date
International technology of 1990 s.
The equipments is used to homogenize, emulsify, spray and high pressure transport liquid
Materials whose viscosity is lower than 0.2 p.as, temperature is lower than 80 c (liquid-liquid
Phase or liquid-solid phase).
In working, with the advance and return movement of plunger piston, open and close of rebound
Valve and covered core inside the pump, to control the slight clearance between the valve head and valve base inside the adjusting valve effectively, so form strong high pressure energy.
The materials could fulfill the purpose of homogenization and emulsification under the instant action of combined force of turbulent flow, cutting, collision and cavity.
The equipment is widely used in the production, scientific research and technical development of a lot of areas, such as: food, dairy food, drink, pharmacy, chemical industry, biological technology and so on.
Technical parameters
Model | Rated flow(L/h) | Max. pressure(MPa) | Work pressure(MPa) | Power (KW) | Overall size(cm) |
LHY200-25 | 200 | 25 | 20 | 22 | 139.5*113*143 |
LHY400-25 | 400 | 25 | 20 | 37 | 163*148*205 |
LHY4000-50 | 4000 | 50 | 45 | 18.5 | 132*148*140 |
LHY1000-60 | 1000 | 60 | 50 | 11 | 115*101*110 |
LH500-25 | 500 | 25 | 20 | 7.5 | 103*74.5*99 |
LH1000-25 | 1000 | 25 | 20 | 11 | 103*74.5*99 |
LH1500-25 | 1500 | 25 | 20 | 18.5 | 136*101*122 |
LH2500-25 | 2500 | 25 | 20 | 22 | 136*101*122 |
LH3000-25 | 3000 | 25 | 20 | 30 | 136*101*122 |
LH4000-25 | 4000 | 25 | 20 | 37 | 141*112*147 |
LH5000-25 | 5000 | 25 | 20 | 45 | 141*112*147 |
LH8000-25 | 8000 | 25 | 20 | 75 | 203.2*142*226 |
LH12000-25 | 12000 | 25 | 20 | 110 | 344*203*154 |
LH16000-25 | 16000 | 25 | 20 | 160 | 368*201*183 |
LH500-30 | 500 | 30 | 20 | 5.5 | 103*74.5*99 |
LH1000-30 | 1000 | 30 | 25 | 11 | 103*74.5*99 |
LH2000-30 | 2000 | 30 | 25 | 22 | 136*101*122 |
LH3000-30 | 3000 | 30 | 25 | 30 | 141*112*147 |
LH4000-30 | 4000 | 30 | 25 | 45 | 141*112*147 |
LH5000-30 | 5000 | 30 | 25 | 55 | 163*148*205 |
LH6000-30 | 6000 | 30 | 25 | 75 | 203*142*226 |
LH8000-30 | 8000 | 30 | 25 | 90 | 203*142*226 |
LH10000-30 | 10000 | 30 | 25 | 110 | 343*203*154 |
LH12000-30 | 12000 | 30 | 25 | 132 | 368*201*183 |
LH500-40 | 500 | 40 | 35 | 7.5 | 103*74.5*99 |
LH1000-40 | 1000 | 40 | 35 | 15 | 115*86*110 |
LH1500-40 | 1500 | 40 | 35 | 22 | 132*110*129 |
LH2000-40 | 2000 | 40 | 35 | 30 | 137*101*122 |
LH3000-40 | 3000 | 40 | 35 | 45 | 141*112*147 |
LH4000-40 | 4000 | 40 | 35 | 55 | 165*148*205 |
LH6000-40 | 6000 | 40 | 35 | 90 | 201*147*226 |
LH8000-40 | 8000 | 40 | 35 | 110 | 203*142*226 |
LH10000-40 | 10000 | 40 | 35 | 160 | 368*201*183 |
LH12000-40 | 12000 | 40 | 35 | 160 | 368*201*183 |
LH1000-50 | 1000 | 50 | 45 | 18.5 | 131.5*110*129 |
LH6000-50 | 6000 | 50 | 45 | 110 | 201*147*226 |
LH500-60 | 500 | 60 | 50 | 11 | 131.5*110*129 |
LH1000-60 | 1000 | 60 | 50 | 22 | 131.5*110*129 |
LH1500-60 | 1500 | 60 | 50 | 30 | 140*113*143 |
LH2000-60 | 2000 | 60 | 50 | 37 | 140*113*143 |
LH3000-60 | 3000 | 60 | 50 | 75 | 163*148*205 |
LH4000-60 | 4000 | 60 | 50 | 90 | 200*147*226 |
LH6000-60 | 6000 | 60 | 50 | 160 | 368*201*183 |
LH1000-70 | 1000 | 70 | 60 | 37 | 131.5*148*140 |
