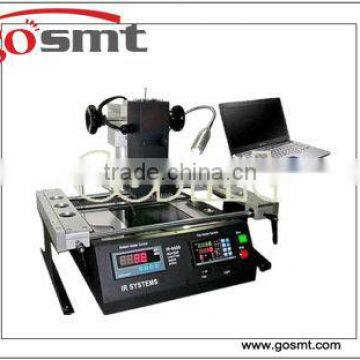

BGA Rework System
- 50 Set / Sets per Month
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Gosmt | |
| Model Number | GP1212 |
Product Description
Specifications
1.BGA Rework System2.Support computer control
3.Lead free rework
4.German infrared heater
5.durable
BGA Rework Station
Parameter
| Basic Parameters | |
| Heating | German infrared heater |
| Dimension | L480mm*W485mm*H420 mm |
| Weight | 15.3kg |
| Total weight | About 17 kg, vary with the different need of the users |
| Electrical Parameters | |
| Power | 220V AC |
| Upper Heating | German infrared heater |
| Size of Upper heating | 80mm*80 mm |
| Consumption of upper heating | 400W |
| Bottom Heating | German infrared heater |
| Size of Bottom heating | 185 mm*185 mm |
| Consumption of Bottom heating | 1000W |
| General power | 1450W |
| Temperature Control | |
| Control mode of Upper | Independent temperature control, high-precision closed-loop control, precision ± 0.5%, Alarm, USB linked computer systems, curve control |
| Control mode of Bottom | Independent temperature control, high-precision closed-loop control, precision± 0.5%, Alarm, USB |
| Rework Function | |
| SMD | Suit for welding, remove or repair packaged devices such as BGA, PBGA, CSP, multi-layer substrates, EMI metallic shield product and solder/lead free Rewor, kwelding |
| Size of applicable chips | ≤70mm*70 mm |
| Size of applicable PCB | ≤400mm*305 mm |
Main Components:
1. Upper Heater (German infrared heater)
2. Highly Sensitive K-temperature sensor
3. PCB Table
4. Power Switch
5. Bottom Temperature Control
6. Cooling Switch
7. Lighting Switch
8. Stop Switch
9. Start Switch
10. Upper Programmable Temperature Control (USB connection notebook computer, for curve control)
11.Bottom Heater (German infrared heater 900W)
12. LED lamp (imported LED lamp, long service life, the luminosity high)
13.X-Y Lifting Regulator
14. Upper FAN
15. Bottom FAN
16. Above section connection mouth (The Upper heating, fan )
17. Temperature probe connection mouth (Upper)
18. 220V power
19. Connect computers serial interface
Rework Operation Steps
1. Preparation
1) Fix motherboard
2) shift sensor , close to BGA chip.
3) Adjust the height of heating head with adjustment knob
(BGA chip in the middle of heating head, heating head away from BGA chip ≥ 2cm)
2. Start heating
1)Open power switch.
2)Select the appropriate temperature program segment, and then press the start switch.
Can press the stop switch to stop operation .
