Home > Products > Forklift > Hydraulic Block Clamps

Hydraulic Block Clamps

FOB Price

US$ 3,500 - 5,000 / Piece

1 Piece(Min. Order)

Port Guangzhou
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	SUNRISE, Sunrise brand
Model Number	ZK27-B3, ZK27-B3

Product Description

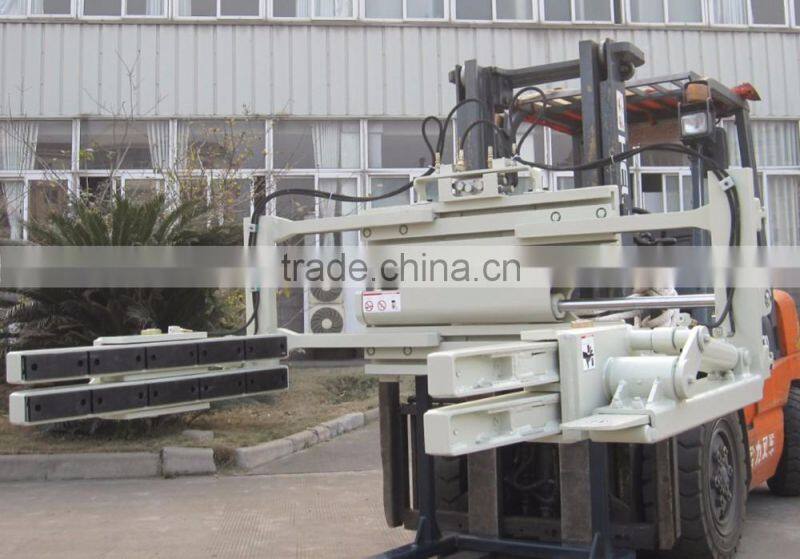

hydraulic block clamps

Concrete block Clamps:

Concrete block clamp could be used for holding variety of stone and concrete blocks ,especially in operations of non pallet transporting and piling of concrete blocks ,bricks ,stones and so on.

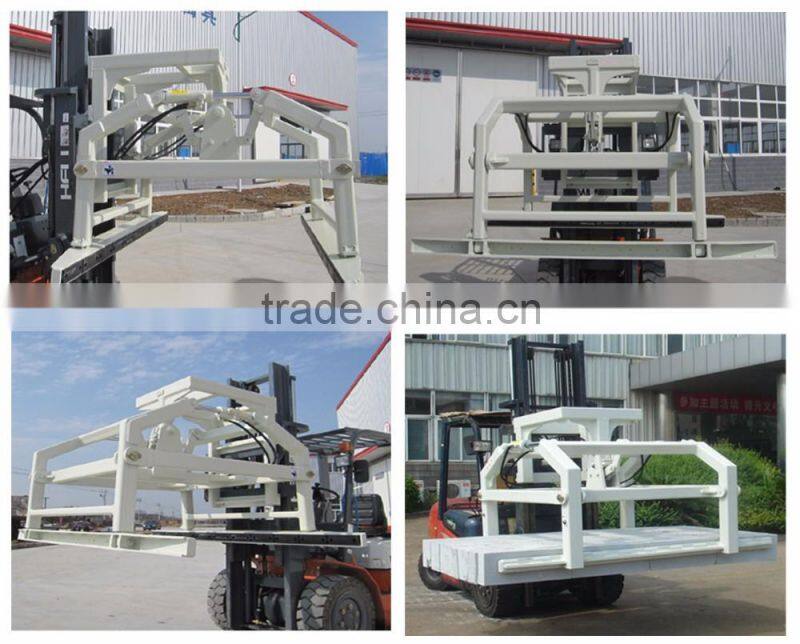

forklift concrete block clamp

Model	Carrying capacity @ Load Center (Kg@mm)	Installation Grade	Adaptation Forklift	arm range E (mm)	Arm high H (mm)	Arm length L (mm)	Arm thicknessT (mm)	Overall height A (mm)	Fork frame width of the minimum(mm)	Frame width B (mm)	Level of focus CGH (mm)	Omission from ET (mm)	Weight (Kg)
ZK06G-A1	600@500	Ⅱ	1-2.5t	100-1100	118	1330	187	670	830	1040	383	117	580
ZK27G-A1	2700@500	Ⅱ	1-2.5t	326-1614	242	1146	208	755	970	1010	220	129	766
ZK27G-B1	2700@500	Ⅲ	3-4.5t	326-1614	242	1520	195	752	1260	1300	475	129	930
ZK27G-B2	2700@500	Ⅲ	3-3.5t	326-1614	242	1146	208	752	970	1010	220	129	766
ZK27G-B3	2700@500	Ⅲ	3-3.5t	326-1614	131	1146	193	754	970	1010	305	129	605
ZK27G-B4	2700@500	Ⅲ	3-4.5t	650-2000	208	1365	192	800	970	1250	438	154	1100

Note:

1, the actual truck / carrying capacity is a comprehensive factory obtained from the forklift.

2, this is a matching increase in group 2 required additional forklifts require asphalt.

Pressure for flow meter

Model	Pressure value(Bar)	Flow value(L/min)
	Maximum	Lateral movement			Clamping action
	Maximum	Least	Recommend	Maximum	Least	Recommend	Maximum
ZK27G-B*	160	4	23	38	15	38	38

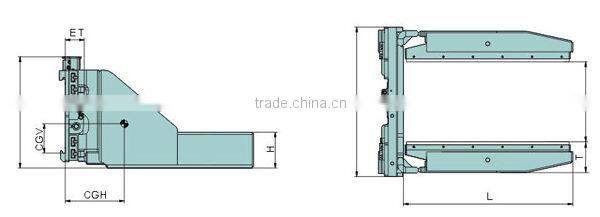

Concrete block Clamps technical data:

hydraulic block clamps

Buying Guides

Providing below details would help us to choose suitable block clamps for you:

Working condition:	Answers
Type of brick:
Size/single brick
The number of brick in a pile
Packaging/yes or no
Size/brick pile
Weight/pile(Kg)
Forklift Brand
Forklift Capacity(T)
Others

Recommended Model

Advantages

1. Spare parts of imported well-known brands make high strength of products.

2. Good design makes the product work long time and with high efficiency.

3. Dust-free plant and full inspection system ensure the products' quality.

4.Removable rubber pad easy to replace after wear.

Outstanding design ability:

eg:push/pull paper roll clamp design:
