China PVC& Powder Coated Expanded Metal Mesh
- xingang
You May Like
-
Aluminum, Carbon Steel, Stainless Steel Flattened Expanded Metal
-
Flattened Expanded Metal ( 15 Years Factory,competitive Price)
-
China Stretch Metal Mesh for Decoration
-
China Manufacture Best Price Decorative Expanded Metal Mesh Good Products
-
China Manufacture Stianless Steel Decorative Expanded Metal Mesh Good Products
-
China Manufacture Expanded Metal Mesh/aluminum Expanded Metal Mesh/galvanized Expanded Metal Mesh
Product Details
| Place of Origin | Hebei, China | Material | Stainless Steel Wire | |
| Type | Expanded Mesh | Application | Woven Wire Mesh | |
| Weave Style | Other, woven | Wire Diameter | 0.5mm-5mm | |
| Technique | Woven | Model Number | HT-026 | |
| Brand Name | PVC& powder coated expanded metal mesh |
Product Description
PVC& powder coated expanded metal mesh
Expanded Metal is an extraordinarily versatile material - one with thousands of uses. It comes in four basic types, and it has four primary areas of application.
Basic types are raised (or standard), flattened and architectural (or decorative) meshes. The major areas of use are for enclosure, protection, support and decoration.
Expanded metal products are produced from solid sheets or plates of carbon, galvanized and stainless steel, as well as aluminum and a variety of alloys of copper, nickel, silver, titanium and other metals.

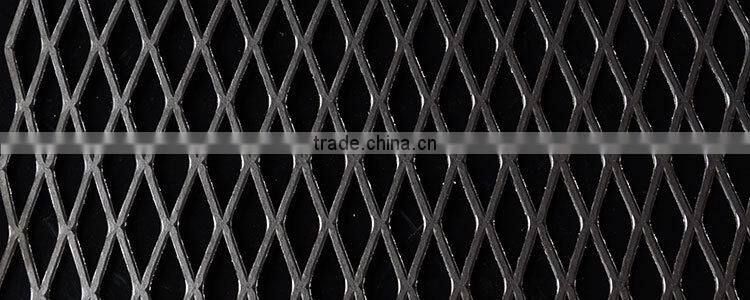

Flattened expanded metals : Manufactured by passing the standard expanded metal through a cold roll reducing mill parallel to the LWD. By flattening the sheet, the bonds and strands are turned down to produce a smooth and flat surface, reducing the overall thickness and elongating the diamond pattern (LWD). Cross roll flattening is done by passing the expanded metal sheet through a cold roll reducing mill parallel to the SWD. The result is the same except the diamond pattern SWD is elongated.
Specification of carbon steel flattened expanded metal
| Carbon Steel-Flattened | ||||||||
| style | Design | Opening | Size of | Overall | Percent | |||
| Size | Size | Strands | Thickness | Open | ||||
| (Inches) | (Inches) | in inches | Inches | Area | ||||
| SWD | LWD | SWO | LWO | Width | Thickness | |||
| 1/4"#20 | 0.25 | 1.05 | 0.084 | 0.715 | 0.079 | 0.03 | 0.03 | 35 |
| 1/4"#18 | 0.25 | 1.05 | 0.075 | 0.715 | 0.08 | 0.04 | 0.04 | 35 |
| 1/2"#20 | 0.5 | 1.25 | 0.375 | 1 | 0.079 | 0.029 | 0.029 | 65 |
| 1/2"#18 | 0.5 | 1.25 | 0.312 | 1 | 0.097 | 0.039 | 0.039 | 60 |
| 1/2"#16 | 0.5 | 1.25 | 0.312 | 1 | 0.096 | 0.05 | 0.05 | 63 |
| 1/2"#13 | 0.5 | 1.25 | 0.265 | 1 | 0.107 | 0.07 | 0.07 | 52 |
| 3/4"#16 | 0.923 | 2.1 | 0.75 | 1.75 | 0.111 | 0.048 | 0.048 | 74 |
| 3/4"#14 | 0.923 | 2.1 | 0.688 | 1.813 | 0.105 | 0.061 | 0.061 | 74 |
| 3/4"#13 | 0.923 | 2.1 | 0.688 | 1.782 | 0.106 | 0.07 | 0.07 | 74 |
| 3/4"#10 | 0.923 | 2.1 | 0.637 | 1.755 | 0.16 | 0.07 | 0.07 | 68 |
| (13ga) | ||||||||
| 3/4"#9 | 0.923 | 2.1 | 0.563 | 1.688 | 0.165 | 0.12 | 0.12 | 63 |
| (10ga) | ||||||||
| 1"#16 | 1 | 2.5 | 0.813 | 2.25 | 0.098 | 0.05 | 0.05 | 78 |
| 1-1/2"#16 | 1.33 | 3.2 | 1.062 | 2.75 | 0.119 | 0.048 | 0.048 | 83 |
| 1-1/2"#14 | 1.33 | 3.2 | 1.602 | 2.75 | 0.134 | 0.06 | 0.06 | 80 |
| 1-1/2"#13 | 1.33 | 3.2 | 1.062 | 2.75 | 0.116 | 0.07 | 0.07 | 80 |
| 1-1/2"#9 | 1.33 | 3.2 | 1 | 2.563 | 0.158 | 0.11 | 0.11 | 75 |
Specification of stainless steel flattened expanded metal
| Stainless Steel-Flattened | ||||||||
| style | Design | Opening | Size of | Overall | Percent | |||
| Size | Size | Strands | Thickness | Open | ||||
| (Inches) | (Inches) | in inches | Inches | Area | ||||
| SWD | LWD | SWO | LWO | Width | Thickness | |||
| 1/4"#18 | 0.25 | 1.2 | 0.08 | 0.66 | 0.09 | 0.047 | 0.047 | 28 |
| 1/2"#18 | 0.5 | 1.26 | 0.312 | 1 | 0.098 | 0.04 | 0.04 | 60 |
| 1/2"#16 | 0.5 | 1.26 | 0.312 | 1 | 0.99 | 0.05 | 0.05 | 60 |
| 1/2"#13 | 0.5 | 1.26 | 0.24 | 0.915 | 0.132 | 0.08 | 0.08 | 57 |
| 3/4"#18 | 0.923 | 2.1 | 0.75 | 1.812 | 0.118 | 0.04 | 0.04 | 75 |
| 3/4"#16 | 0.923 | 2.1 | 0.75 | 1.812 | 0.118 | 0.05 | 0.05 | 75 |
| 3/4"#13 | 0.923 | 2.1 | 0.625 | 1.75 | 0.12 | 0.07 | 0.07 | 75 |
| 3/4"#9 | 0.923 | 2.1 | 0.562 | 1.687 | 0.15 | 0.119 | 0.119 | 61 |
| 1-1/2" | 1.33 | 3.15 | 1.062 | 2.75 | 0.128 | 0.05 | 0.05 | 80 |
| #16 | ||||||||
| 1-1/2" | 1.33 | 3.15 | 1 | 2.625 | 0.13 | 0.079 | 0.079 | 80 |
| #13 | ||||||||
| 1-1/2"#9 | 1.33 | 3.15 | 0.937 | 2.625 | 0.165 | 0.119 | 0.119 | 75 |
Specification of aluminum steel flattened expanded metal
| Aluminum-Flattened | ||||||||
| style | Design | Opening | Size of | Overall | Percent | |||
| Size | Size | Strands | Thickness | Open | ||||
| (Inches) | (Inches) | in inches | Inches | Area | ||||
| SWD | LWD | SWO | LWO | Width | Thickness | |||
| 1/2".051 | 0.5 | 1.27 | 0.312 | 1 | 0.104 | 0.04 | 0.04 | 61 |
| 1/2".081 | 0.5 | 1.27 | 0.312 | 1 | 0.105 | 0.06 | 0.06 | 58 |
| 3/4".051 | 0.923 | 2.215 | 0.75 | 1.812 | 0.122 | 0.04 | 0.04 | 72 |
| 3/4".081 | 0.923 | 2.125 | 0.687 | 1.75 | 0.143 | 0.07 | 0.07 | 70 |
| (Lt.) | ||||||||
| 3/4".081 | 0.923 | 2.125 | 0.687 | 1.75 | 0.181 | 0.07 | 0.07 | 63 |
| (Hvy) | ||||||||
| 3/4".125 | 0.923 | 2.125 | 0.625 | 1.75 | 0.187 | 0.095 | 0.095 | 62 |
| 1-1/2".081 | 1.333 | 3.15 | 1.062 | 2.75 | 0.143 | 0.055 | 0.055 | 77 |
| 1-1/2".125 | 1.333 | 3.15 | 1 | 2.75 | 0.181 | 0.08 | 0.08 | 70 |

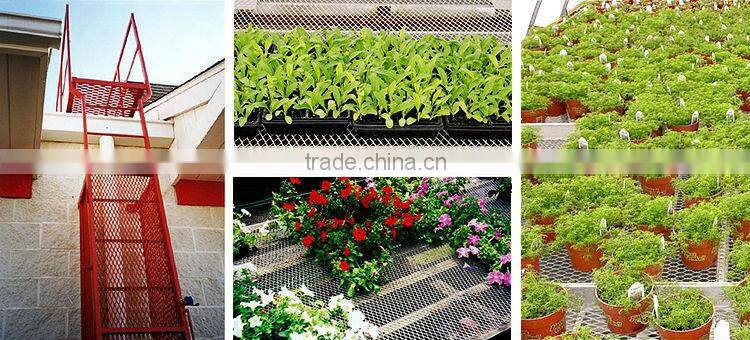

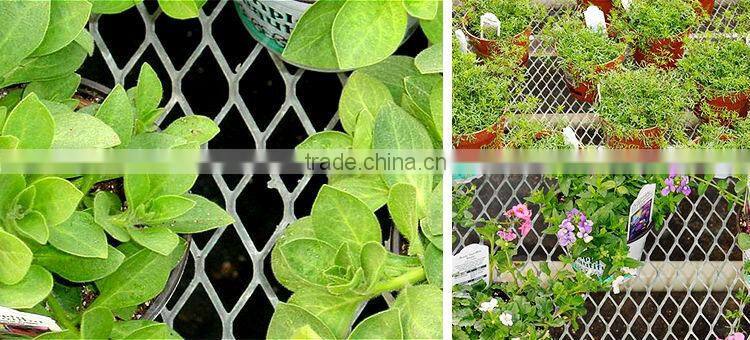

Application

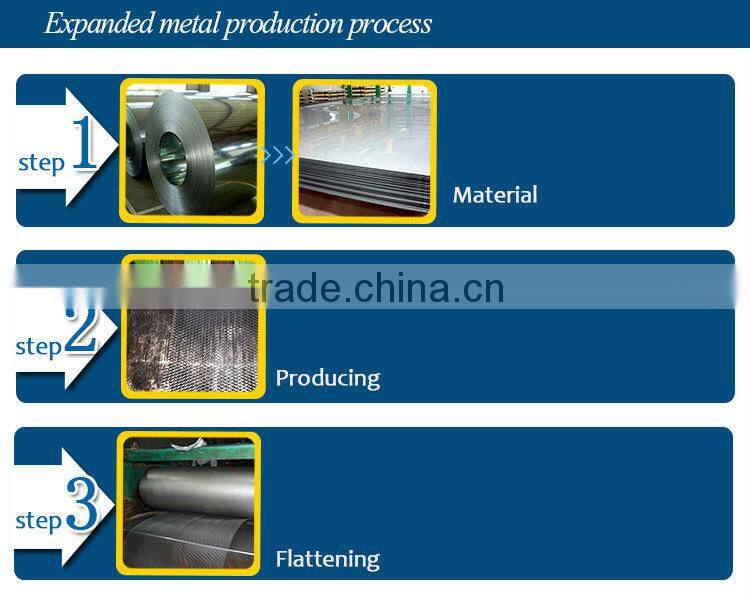

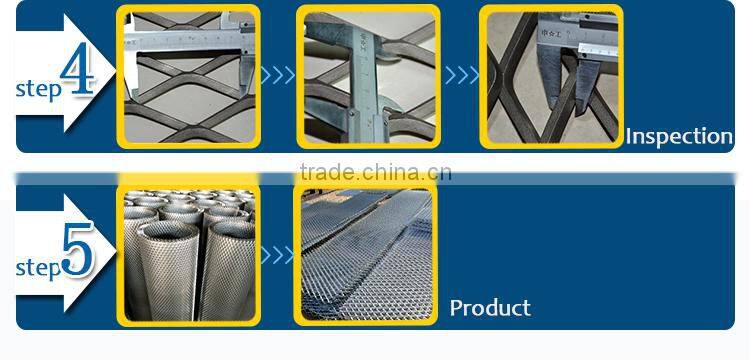

Production Process
