China Steel Grating Used for Trench Cover
- xingang
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
China Plain Type Steel Grating
-
2016 Hot Selling Cheap Solid Small Steel Plate Mesh
-
2016 Hot Selling Cheap Solid Galvanize Expanded Mes2016 Manufacturers Selling Stock Firm Expanded Plastic Mesh Sheeth
-
2016 Manufacturers Selling Stock Firm Thick Expanded Metal Mesh
-
2016 Manufacturers Selling Stock Firm Expanded Metal Mesh Deck
-
2016 Manufacturers Selling Stock Firm 4ft x 8ft Sheets Expanded Metal Mesh
Product Details
| Place of Origin | Hebei, China | Material | Other, steel | |
| Type | Welded Mesh | Application | Other, trench covers / walkways / catwalks / stair treads | |
| Weave Style | Other, welded mesh | Technique | Welded Mesh | |
| Model Number | HT-036 | Brand Name | steel grating used for trench cover |
Product Description
steel grating used for trench cover
Steel Grating is known for its durability and surface hardness. The patented steel coating is applied to steel grating in a plasma spray random hatch matrix, resulting in peaks and valleys of slip resistance. The coating is applied at over 4,000 psi and hardened to between 55 – 63 on the Rockwell “C” scale.
From heavy duty to light duty, steel grating is offered in various styles of bar sizes and spacing. Whether you’re looking for a steel grating that can hold fork lift traffic or ADA compliance, we have a style of steel grating to meet your needs. Steel grating can be fabricated to detailed specifications or is available in stock sizes.
Material: Carbon Steel and Stainless Steel

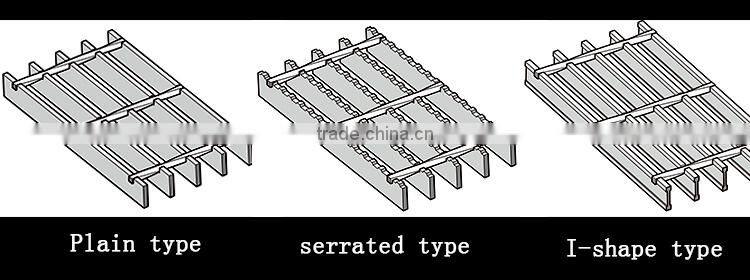

Types of steel grating:
Specification List of Steel Grating
| mesh | size | strand | size | Quality Kg/m2 | Standard inch France L*S(mm) Weight(kg/panels) | |
| SW | LW | T | W | WEIGHT | 1000*2000 2.0M2 | 1219*2348 2.972M2 |
| 12 | 30.5 | 1.2 | 1.5 | 2.38 | 4.76 | 10.6 |
| 12 | 30.5 | 1.5 | 1.8 | 3.57 | 7.14 | 10.6 |
| 12 | 30.5 | 2.0 | 3.0 | 7.93 | 15.9 | 23.6 |
| 12 | 30.5 | 2.0 | 2.0 | 5.29 | 10.6 | 15.7 |
| 22 | 50.8 | 1.5 | 2.0 | 2.16 | 4.32 | 6.42 |
| 22 | 50.8 | 2.0 | 2.0 | 2.88 | 5.76 | 8.65 |
| 22 | 50.8 | 3.0 | 3.0 | 6.49 | 13.0 | 19.3 |
| 34 | 76.2 | 1.5 | 2.0 | 1.40 | 2.8 | 4.16 |
| 34 | 76.2 | 2.0 | 2.5 | 2.33 | 4.66 | 6.92 |
| 34 | 76.2 | 3.0 | 3.5 | 4.90 | 9.80 | 14.6 |
| 34 | 76.2 | 3.0 | 3.0 | 4.20 | 8.40 | 12.5 |
| 34 | 76.2 | 4.0 | 4.0 | 7.46 | 14.9 | 22.1 |
| 34 | 76.2 | 4.5 | 5.0 | 10.50 | 21.0 | 31.20 |
| 36 | 101.6 | 4.0 | 5.0 | 8.81 | 17.6 | 26.2 |
| 36 | 101.6 | 4.5 | 5.0 | 9.91 | 19.8 | 29.4 |
| 36 | 101.6 | 4.5 | 6.5 | 12.90 | 25.8 | 38.3 |
| 36 | 101.6 | 6.0 | 7.0 | 18.50 | 37.0 | 55.0 |
| 36 | 101.6 | 6.0 | 6.0 | 15.9 | 31.8 | 47.2 |
| 36 | 101.6 | 6.0 | 6.5 | 17.20 | 34.40 | 51.10 |
| 34 | 135.4 | 4.0 | 5.0 | 9.33 | 18.7 | 27.7 |
| 34 | 135.4 | 4.5 | 5.0 | 10.50 | 21.0 | 31.2 |
| 34 | 135.4 | 5.0 | 6.0 | 14.00 | 28.0 | 41.6 |
| 34 | 135.4 | 6.0 | 7.0 | 19.60 | 39.2 | 58.3 |
Recommended for free-standing Mezzanines or rack supported catwalks and walkways
Available in range of widths, lengths and finishes
Custom manufactured to suit your exact application
Exclusive 'Great Coat' powder coat paint finish available

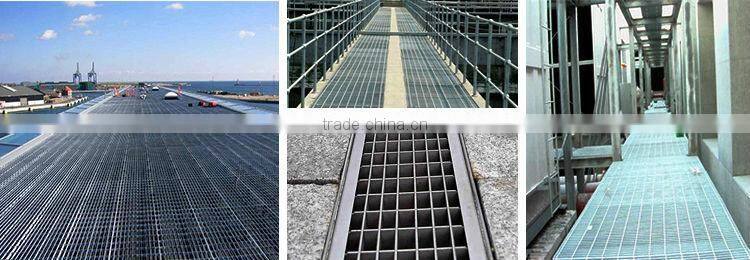

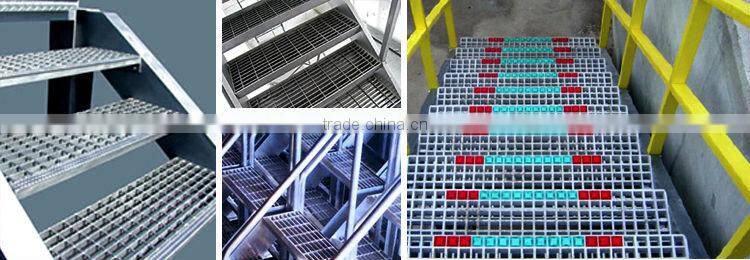

Steel grating is prevalently used in applications where strength and durability are critical. Steel grating is utilized throughout industrial settings for trench covers, walkways, catwalks, stair treads and various other applications. From manufacturing plants to steel mills, steel grating remains slip resistant, even when covered in oil.

Production process
