HI-RIB Mesh(High Rib)/Expanded Rib Lath(direct Factory)
US$ 1 - 6
/ Sheet
100 Sheets(Min. Order)
- xingang
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Manufacturing Factory Galvanized Rib Lath,formwork Netting
-
High-quality Ceiling Plaster Rib Lath 600*2500
-
Cheap!China Metal Rib Lath Manufacture
-
Construction High Ribbed Expanded Metal Lath
-
Honeycomb Expanded Metal Mesh/expanded Metal Rib Lath/expanded Wall Plastering Quality Choice
-
China High Ribbed Formwork Lath
Product Details
| Place of Origin | Hebei, China | Brand Name | HI-RIB Mesh(High rib)/Expanded Rib Lath(direct factory) | |
| Model Number | hightop-40 | Material | Galvanized Sheet |
Product Description

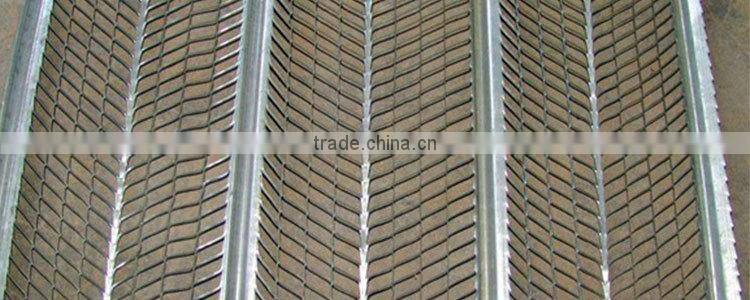

HI-RIB Mesh(High rib)/Expanded Rib Lath(direct factory)
Product Description
Rib Lath is a versatile metal lath stiffened by the longitudinal ribs. It has V ribs and greater tensile strength which offering excellent plaster base and reinforcement for all types of walls, ceilings, partitions and fireproofing of steel beam, and columns. Rib lath is ideal for providing a high degree key of mechanical bonding with render or plaster.
Material: Galvanized Steel Sheet and Stainless Steel Sheet
Specifications of rib lath
According to the opening size (Sw x Lw), rib lath can be divided into the following four kinds.
| Rib Distance | Rib Height | Opening size( Sw x Lw) | Width |
| 150mm | 5.0mm | 12.5*17mm | 600mm |
1 Sw x Lw: 12X8mm
| Thickness(mm) | Sw*Lw(mm) | Rib Height(mm) | Rib Distance(mm) | Weight (Kg/m²) | Width(mm) |
| 0.30 | 12*8 | 5 | 100 | 1.2 | 610 |
| 0.35 | 12*8 | 5 | 100 | 1.4 | 610 |
| 0.40 | 12*8 | 5 | 100 | 1.6 | 610 |
| 0.30 | 12*8 | 8 | 100 | 1.2 | 610 |
| 0.35 | 12*8 | 8 | 100 | 1.4 | 610 |
| 0.40 | 12*8 | 8 | 100 | 1.6 | 610 |
2 Sw× Lw: 3.5x13mm
| Thickness(mm) | Sw*Lw(mm) | Rib Height(mm) | Rib Distance(mm) | Weight (Kg/m²) | Width(mm) |
| 0.30 | 3.5*13 | 4 | 60 | 1.27 | 610 |
| 0.35 | 3.5*13 | 4 | 60 | 1.49 | 610 |
| 0.40 | 3.5*13 | 4 | 60 | 1.70 | 610 |
| 0.30 | 3.5*13 | 4 | 75 | 1.27 | 750 |
| 0.35 | 3.5*13 | 4 | 75 | 1.49 | 750 |
| 0.40 | 3.5*13 | 4 | 75 | 1.70 | 750 |
3 Sw× Lw: 20x9mm
| Thickness(mm) | Sw*Lw(mm) | Rib Height(mm) | Rib Distance(mm) | Weight (Kg/m²) | Width(mm) |
| 0.35 | 20*9 | 8 | 75 | 1.00 | 610 |
| 0.40 | 20*9 | 8 | 75 | 1.13 | 610 |
| 0.45 | 20*9 | 8 | 75 | 1.27 | 610 |
4 Sw× Lw: 16x11mm
| Thickness(mm) | Sw*Lw(mm) | Rib Height(mm) | Rib Distance(mm) | Weight (Kg/m²) | Width(mm) |
| 0.30 | 16*11 | 8 | 150 | 0.88 | 610 |
| 0.35 | 16*11 | 8 | 150 | 1.18 | 610 |
| 0.40 | 16*11 | 8 | 150 | 1.46 | 610 |
Application:Partition wall,Tunnel / sewers project,Floor,etc
Packaging & Shipping
Packaging details: packing with steel belt,then put it on steel pallet.
