Hot Selling Product 3 Phase Servo Voltage Stabilizer 50kva

Brief introduction

SBW series compensation voltage stabilizer is highly beneficial when the electricity supply to the site is at a higher or lower voltage level than needed. This system stabilizes the input voltage to be stable and generates a reliable output voltage to the residential, commercial, industrial site. Therefore, it can achieve energy saving and electricity bill reduction by decreasing power consumption.

SBW series large power compensation full automatic voltage stabilizer is the second generation of stabilizer, mainly used for factory or large power equipment, like generator, CNC machine etc.

Features

(1) The AC voltage regulator is equipped with bypass system

(2) Compensated voltage technology is adopted

(3) Wide input voltage range

(4) Over voltage protection

(5) The voltage regulator has output voltage three phase auto-balance function

(6) SBW voltage regulators are widely used in electric power supply systems.

Technical Parameters

Power range: 20KVA-200KVA (single phase)

Input voltage: single phase 220V±20% (176-264V), optional 220V±30% (154-286V) or larger range

Output voltage: single phase 220V±3%

Power range: 20KVA-2500KVA(three phase)

Input voltage: 3 phase 380V±20% (304-456V), optional 380V±30% (266-494V) or larger range

Output voltage: 3 phase 380V±3%

Custom made products in special input & output voltage is available,  like 3 phase 220v, 400v, 415v, etc

Working frequency: 50Hz/60Hz;  Response time: ≤1s;  Efficiency: ≥98%

Waveform distortion: Do not produce additional waveform distortion

Protection function: overload, over current, over voltage, under voltage, short  circuit, etc

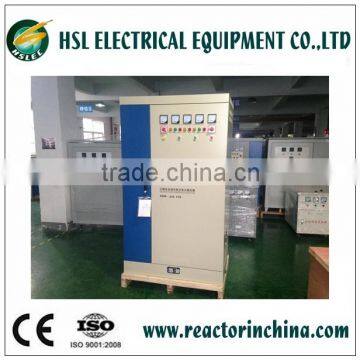

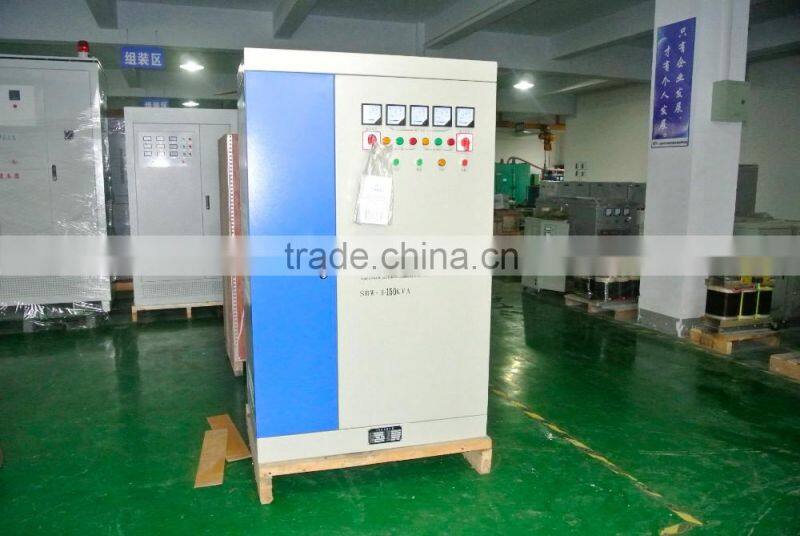

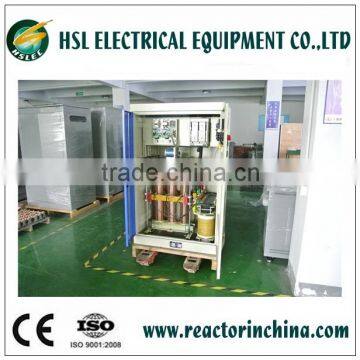

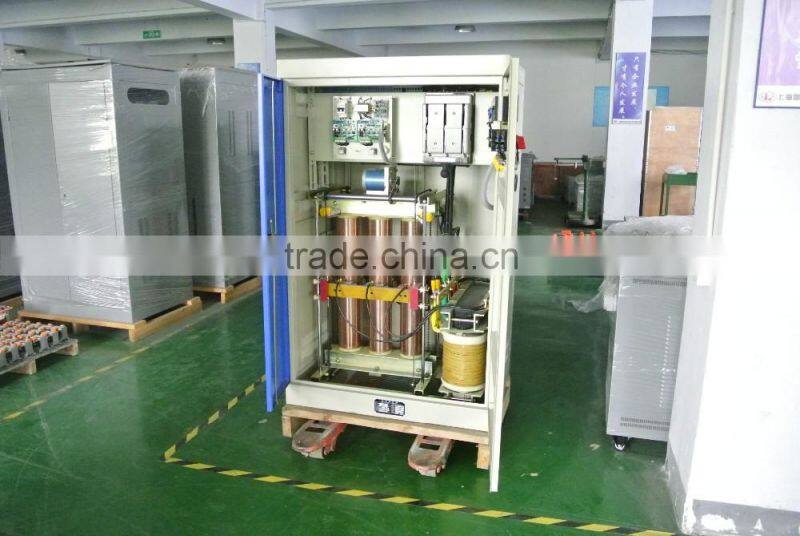

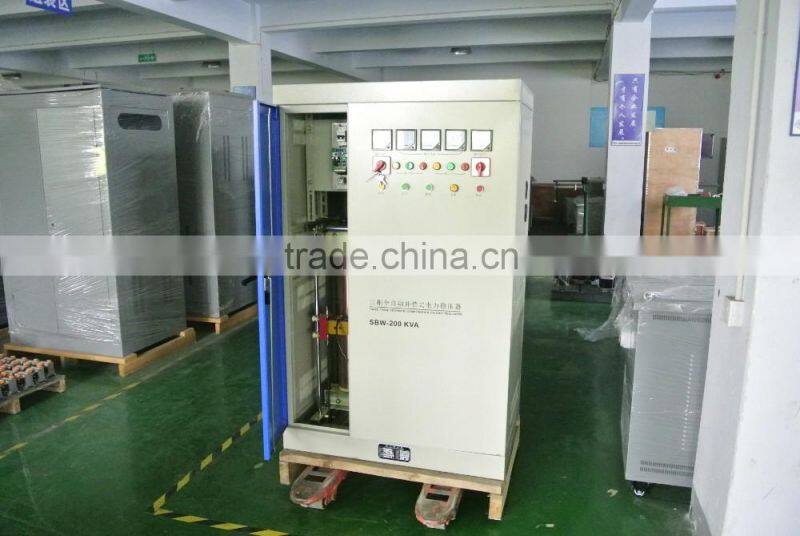

Pictures

1. Pre sale service

     a.  make technical solution

     b.  send quotation, technical data sheet and drawing

     c.  make manufacturing plan, testing plan and shipping plan

2. In sale service

    a. supervise the manufacturing schedule totally in accordance with the plan

    b. send photos to customer during every manufacturing process(hold point)

    c. inform the customer one week before testinng.

    d. book hotel and ticket for customer if they will come do FAT.

3. After sale service

    a. installation and commissioning

    b. training  the workers

    b. quick response within 12 hours at any time

Founded in 1992, Hua Sheng Long Electrical Equipment Co. Ltd. (HSLEC), a provider of standard and custom transformers and reactors combined, is one of the leading electrical drive companies in China. Our design engineers, in collaboration with specialists from Yanshan University of Qinhuangdao and a couple of leading research institutes in the industry, have worked assiduously over the years to offering end-users with seamless solutions to fit into their development plans. Being a supplier to global brands in the likes of Siemens and ABB, we have won patronage of a host of companies from home and abroad.

HSL has a long tradition of electric drive experience and innovation. We constantly strive to expand our product line and boost standard of services to meet emerging customer needs.

 1.Q: Are you manufacturer or trading company?

   A:  Manufacturer

2.Q: What is your minimum order quantity?

   A: 1 set.

3.Q: What is your delivery time ?

   A: Depend on the type of transformer.

4.Q: What is your payment term?

   A:  30% advance by T/T  , 70% before delivery by T/T or L/C   or we can discuss about it.

5. Q: What kind of supporting documentation you can provide normally

    A: Quotation,outline drawing,manufacturing plan, quality control plan  testing plan, financial report, type test report(KEMA, CESI),reference list,etc
