dry type electric power transformer with price
- 1000 Set / Sets per Month
- ningbo shanghai tianjin shenzhen or as customer's requirements
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | HSLEC | |
| Model Number | SCB10 | Usage | Power | |
| Phase | Three | Coil Structure | Toroidal | |
| Coil Number | Other, 2 |
Product Description

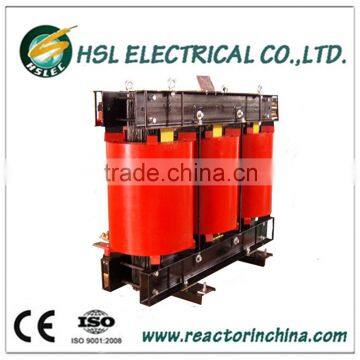

dry type electric power transformer with price
Introduction
SC (B)10 Three Phase Resin lnsulation Dry Type Power Transformer is improved and heighten in the base of SC(B) 9. The notable different is Power load loss of SC(B)10 is dropping 15%than SC8, 20% in power no-load loss.
Iron core: Made up of high quality cold rolled silicon steel sheet that is for electric engineering |
Low voltage winding: Made up of a whole copper foil coil |
High voltage winding: Made up of sectional type vacuum casting double glass fiber covered coils |
LV & HV terminal: Variable wiring mode,chich is convenient for installation |
Resilient pad: Avoid mechanical resonance, and reduce noise |
Clamp and trolley: The wheel of trolley can rotates to 90°, It is convenient for vertical and horizontal movement |
Packing type resin insulation: With advantages of damp proof,anti-damp and hot, flame-retardant,and self-extinguish. |
Protective Case: Normally dry type transformer is not equipped with protection case, i.e. IP00, but we can also provide IP20 or IP23 enclosure according to meet customer's demand. |
Overload capability: Overload capability of the transformer is relative to factors like the structure, ambient temperature, initial load and so on. The following curve for reference. |
The basic order data
| 1. Rated Capacity: 1200kva~10000kva |
| 2. Rated Voltage: 6~35kv |
| 3. Rated Voltage for Equipped Capacitor Group |
| 4. Rated Current and Max. Continuous Current |
| 5. Installation Method(Horizontal Or Vertical) |
| 6. Operation site (Indoor and Outdoor) |
| 7. Angle of Incoming and out coming Terminals |
| 8. Product Executive Standard: JB5346 GB10229 IEC289 |
Product Features
| 1. High mechanical strength and strong short circuit resistance ability; |
| 2. Good moisture resistance and run with 90% humidity; |
| 3. Advanced structure, small dimension, light weight and low partial discharge; |
| 4. High insulation level and equal electric field distribution; |
| 5. Maintenance free; |
| 6. Run with 140% rated load under forced air cooling; |
| 7. Fireproof, explosion-proof, pollution-free and low-noise makes it's able to be directly installed in the load center. |
Service Conditions
| 1. Service Site: Indoor Or Outdoor |
| 2. Ambient Temp: -5~40 Degree( Or According To Customer's Requirement) |
| 3. Altitude: ≤1000m( If It Exceeding To 1000m, Pls Declare In Order). |
| 4. Max Wind Speed: 35m/S |
| 5. Relative Humidity: ≤90% |
| 6. Earthquake Resistant Capability: Horizontal Direction 0.3g Verticle Direction 0.15g (Or By Customer's Requirements) |
product show
Enclosure
HSLEC
1. Qinhuangdao hua sheng long electric co., LTD. is founded in 1992, and it is a high-tech enterprise in hebei province.
2. It is a company has the experience of both research and manufacture, it also serve in the integration of dry type transformer and reactor professional enterprises, the annual production capacity can get the level of more than 500000 kva.
3. We are able to research,develop,and produce many types of dry type transformer and dry type reactor, high and low voltage transformers, air core reactor, line reactor and so on.
4.The company's products are not only qualified by the "national transformer quality supervision and inspection center", and "national electric power distribution equipment quality supervision and inspection center testing", but also was identified as the preferred supplier of these well-known enterprises.
1. 23 years' manufacturing experience |
2. One machining workshop, two wire winding workshops, complete special-use and universal-use equipment,a complete set of inspection equipment, and large-scale winding equipment |
| 3. CE & ISO certificate |
| 4. OEM / ODM |
| 5. Production capacity: more than 500,000 kVA per year |
| 6. Our customers: Siemens, Emerson,ABB ,GE, Fuji, Allen-Bradley, Eurotherm, LG,etc. |
| 7. Manufactuer's price: Factory direct sale, most competitive price |
| 8. Quality assurance: All the transformers and reactors will go through lots of tests carefully before dispatch: Raw material check, Winding test, Assemble test, Painting check, Nameplate check and routine tests. |
Certification
International Market
1. During the past 18 years, we have continued to improve our equipment and quality control system.
2. HSLEC is a top ranked manufature in China electrical equipment industry, whose power transformer, current-limiting reactor are exporeted to 11 countries, including America, India, Thailand, Turkey, Georgia Singapore, Philippines, Holland, Indonesia, Zinbabwe and Brunie.
Customer visit
Equipment
Test after production
| 1. Measurement of winding resistance |
| 2. Measurement of voltage ratio and check of voltage vector relationship |
| 3. Measurement of impedance voltage, short-circuit impedance and load loss |
| 4. Measurement of no-load loss and current |
| 5. Dielectric tests |
| 6. Insulation oil test |
| 7. Impulse voltage test |
| 8. Temperature rise test |
| 9. Short-circuit test |
| 10. Acoustic sound level measurements |
1.HSLEC offer a wide variety High Voltage and Low Voltage power products, including power transformers, distribution transformers, aie core reactors, iron core reactors and out put reactors compatible to variety frequency converters.
2. In addition, we can fulfill your OEM requests.
1. Q: How can you guarantee the quality of your product?
A: The credit of our company comes from our perfect products material,we canalso show u by pictures or video if u like.
2. Q: What is your minimum order quantity?
A: 1 set.
3. Q: What is your delivery time ?
A: Depend on the type of product.
4. Q: What is your payment term?
A: 30% advance by T/T, 70% before delivery by T/T or L/C or we can discuss about it.
5. Q: What kind of starndard you follow?
A: IEC, GB etc
6. Q: What kind of supporting documentation you can provide normally
A: Quotation,outline drawing,manufacturing plan, quality control plan,testing plan, financial report,reference list,etc
7. Q:What is your normal wanrranty period?
A: 12 months after goods shipped.
8. Q: Can u do installation and commissioningn in user's site?
A: Yes, we can send our installation team to user's country for service.
9. Q: Are you manufacturer or trading company?
A: Manufacturer
