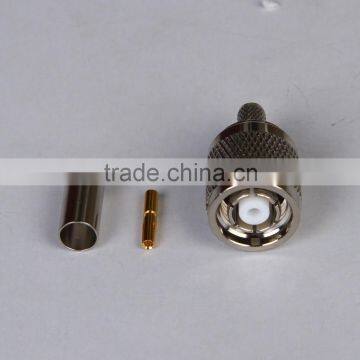

Reverse polarity TNC male body female pin RF connector
US$ 0.5 - 2.5
/ Piece
10 Pieces(Min. Order)
- Hongkong
- Credit Card
You May Like
-
RF COAXIAL CONNECTOR,TYPE TNC CONNECTOR, 50OHM,RIGHT ANGLE/PLUG,MALE,MATCHING.
-
TNC Male Connector Crimp/Solder Attachment For RG58, LMR-195 Cable
-
tnc male crimp,tnc male twist on,tnc connector for rg58 rg59 rg6 rg213
-
Shenzhen rp tnc female connector
-
Factory price electrial circular connector TNC male crimp for RG174 cable coaxial connector
-
tnc switch rf connector
Product Details
| Place of Origin | Guangdong, China | Brand Name | SH-Link | |
| Model Number | RP-TNC-C-TK3-2 | Type | TNC | |
| Application | RF | Gender | Female |
Product Description
Reverse polarity TNC connector,crimp,50 ohm.
High quality and favourable price
According to the request of customer,the reverse polarity connectors produced by our company is to distinguish with difference original series procucts.(for example SMA,TNC,BNC,etc).It can change the link form,prevent mistakes,and diminish the systematic wastage.It has the same technical characteristic,materials,standard same with the original series of products.
| MAJOR TECHNICAL CHARACTERISTICS | ||
| Temperature range | -55—+155℃(PE Cable -40—+85℃) | |
| Vibration | 150m/S²(10-2000Hz)15g | |
| Impedance | 50Ω | |
| Frequency range | DC-11GHz | |
| Working voltage | 500V r.m.s at sea level | |
| Withstanding voltage | 1500V r.m.s at sea level | |
| Contact resistance | ||
| Center contact | ≤10 mΩ | |
| Outer contact | ≤2.5 mΩ | |
| Insulation resistance | ≥5000MΩ | |
| Center conductor retention force | ≥0.57N | |
| Insertion loss | ≤0.20dB | |
| Voltage Standing Wave Ratio | ||
| Straight | ≤1.22/3GHz | |
| Right angle | ≤1.30/3GHz | |
| Durability(mating) | ≥500(Cycles) | |
| Material & Plating | ||
| body | brass | nickel plated |
| pin contact | brass | gold or silver plated |
| socket contact | beryllium-copper | gold or silver plated |
| resilient contact | Tin bronze | gold plated |
| insulator | PTFE | |
| crimp ferrule | copper alloy | nickel plated |
| O-ring sealing | 6146 silicone rubber | |
| Applicable standard | MIL-C-39012 | |
| CECC 22200 | ||
| IEC-60169-17 | | |
