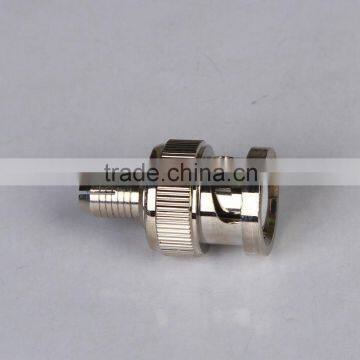

Bnc Terminal Connector,usb to Bnc Cable
- Hongkong
- Credit Card
You May Like
-
Female to Male to Female Tee BNC Adaptor
-
BNC Female Panel Mount Solder Pot Terminal 4 Holes Flange-BNC Connector
-
BNC Female Right Angle Bulkheaded rf Connector for Pcb Mount
-
RF Connector 90-degree 50 Ohm Bnc Pcb Mount Right Angle Female Connector (plating Nickel)
-
Bnc Female to Female Connector for Video Camera CCTV
-
BNC Double Female Coaxial Connector for Pcb
Product Details
| Place of Origin | Guangdong, China | Brand Name | sh-Link | |
| Model Number | BNC-C-75J4-5 | Type | BNC | |
| Application | RF | Gender | Male |
Product Description
Specifications
1.Type BNC
3.impedance:75ohm
4.nickel plated
TYPE BNC is one kind of RF coaxial connectors using a bayonet type coupling mechanism,characteristic impedance has two types:50Ω and 75Ω.They can be quick connect/disconnect,reliable lock etc.They are widely used in connection with the RF coaxial cables in computer field,network or wireless, medical equipment and electronic instrument.
MAJOR TECHNICAL CHARACTERISTICS
Temperature Range | -55~+155°C(PE Cable-40~+85°C) |
Impedance | 50Ω 75Ω |
Frequency Range | DC~4GHz |
Working Voltage | 500V r.m.s at sea level |
Withstanding Voltage | 1500V r.m.s at sea level |
Contact resistance | a)Center Contact ≤1.5m Ω b)Outer Contact ≤1m Ω |
Insulation resistance | ≥5000MΩ |
Center conductor retention force | ≥0.57N |
Insertion Loss | ≤0.20dB/3GHz |
Voltage Standing Wave Ratio | Straight ≤1.22/3GHz Right angle ≤1.30/3GHz
|
Durability(mating) | ≥500times(cycles) |
MATERIAL & PLATING
Body | brass | Nickel plated |
Pin contact | brass | Gold or silver plated |
Socket contact | Beryllium-copper | Gold or silver plated |
Resilient contact | Tin bronze | Gold or silver plated |
insulator | PTFE |
|
Crimp ferrule | Copper alloy | Nickel or gold plated |
O-ring sealing | 6146silicone rubber |
|
APPLICABLE STANDARD
MIL-C-39012;
CECC 22120
IEC 60169-8
