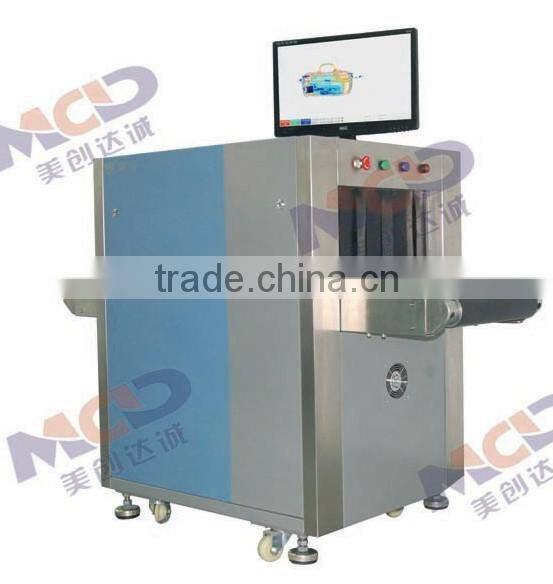

Shenzhen Factory ISO1600 Film Safety Guarantee X-ray Scanning Machine

Specifications

shenzhen factory ISO1600 Film Safety Guarantee X-ray Scanning Machine

Specification

• Tunnel Size: 500(W)*300(H) mm
• Conveyor Speed: 0.22m/s
• Conveyor Max Load: 20kg
• Dose per Inspection: <2.9 μGy/h
• Resolution: <0.101mm Metal Wire
• Penetration: 8mm Steel
• Film Safety: Guarantee ISO1600 Film
• X-ray Leakage: <0.05 μGy/h (at a distance of 5cm From external housing)

 X-ray Generator

• Generate direct: Upward
• Generate angle: 60 degree
• Anode Voltage: 80Kv
• Anode power: 0.4 to 0.5mA
• Cooling / Duty Cycle: Oil Cooling /100%

Image System

• X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
• Monitor: High Resolution Color, LCD Accord, 17 inch
• Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
• Image Grey Level: 4096
• Image Max Resolution: 1024 * 1280 pixel
• Image Processing: 24bit for processing real time
• Image storage: Storage 60000 pictures in real time
• Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

Installation Data

• Operation temperature/Humidity: 0°C-45°C/20%-95% (non-condensing)
• Storage Temperature/Humidity: -20°C-60°C/20%-95% (non-condensing)
• Operation Power: 220VAC (±10%)50±3Hz
• Power Consumption: 1.0 KW (max), 0.3KW (working)
• Noise: <65db

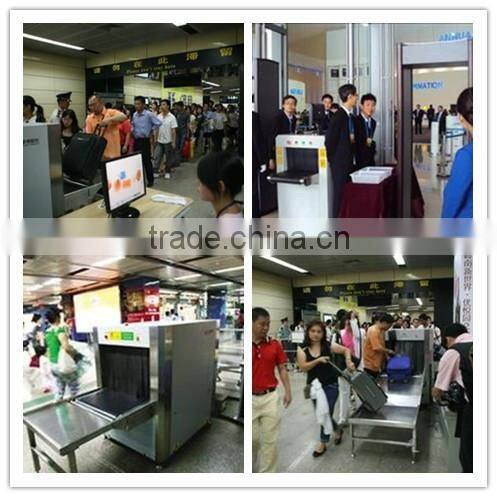

Application:

         Used in the factory testing of security products and business units such as: electronic factories, shoe factories, toy factories, courts, railway stations, and event bag, line security management package
