Free Sample Indoor Outdoor using High Brightness dot matrix led screen

Free Sample Indoor Outdoor using blue High Brightness dot matrix led screen

Application:

1)       Semi-outdoor/outdoor or indoor using, elevators/lift, led strip display, clock display and other different display areas of digital instruments, display screen modules, mechanical & medical equipments etc.

2)       Customized LED Panel Displays: Application for household appliance, special using LED items.

Specification/Parameter:

1)       Size Available: Φ3.0mm, Φ3.7mm, Φ5.0mm, Φ7.62mm, Φ10mm

Lens/Epoxy: Water Clear, Diffused color, Red color, Green color etc.

2)       Emitted Color Available

Single: Red, Orange, Yellow, Green, Blue, Yellowish-Green, White color LED

Bi-color: Red & Green, Red & Blue, Red & Orange, Green & Yellow etc.

RGB: Red & Green & Blue, Red/Yellow/Green etc. or other customized combination

3)       Characteristics:

1. High luminous intensity output
2. Low voltage and current operation
3. Ultra-low power consumption, Solid-state lighting chips inside, SSL.
4. IC compatible, easy mounting & installation on PCB/sockets
5. Meet TUV ROHS certifications
6. Providing free sample for testing for common models

Size & Dimension/Pins Layout, Circuit Diagram

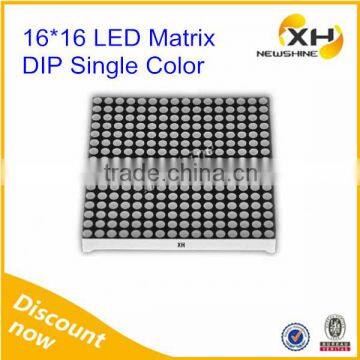

Related 5*7 5*8 8*8 16*16 LED dot matrix display component modules

[--1.9mm 8*8 LED Dot Matrix XH-7088, 2.0CM*2.0CM]

[--2.9mm/3.0mm 5*7 LED Dot Matrix XH-12057] Image as above.

[3.0mm 8*8 LED Dot Matrix XH-12088, 3.2CM*3.2CM]

Advantages of Our LED diaplsy components/LED dot matrix/LED segment/alphanumeric digits display

1. 7*24 hours online Email service

2. Quick production schedule/arrangement

3. Professional LED display/panel/solutions provided

4. OEM/ODM services provided

5. Multi-ways for payment terms & Shipping solutions.

Major technological process of NEWSHINE LED dot matrix/digit/alphanumeric displays

Shipping Solutions with NEWSHINE

Also, by AIR/SEA are all available for future cooperation; Drop-Shipping supportable.

Payment Terms:

PP, Western Union, T/T ,

ESCROW, Ali-Secure, L/C, OA are all negotiable for long-term cooperation!

Common Questions:

1. What's the LED display components advantages, compared to LCD items?

: Brighter intensity luminous, multi-color LED choices & longer lifespan.

Also we could do special/customized LED panel display solutions base on prototype design/projects.

2. Are your LED dot matrix/digit & alphanumeric displays DIP or SMD encapsulation?

: All NEWSHINE led dot matrix, led digit displays, led customized displays are using DIP encapsulations.

3. How long can the display items last during high-temp. reflow soldering?

: 3 Seconds @260degrees.

Could not be stay longer than 3 seconds in high temperature conditions.

4. Could we use common China Post shipping, to test the samples?

: Yes, we can provide free sample plus free China Post shipping for common items, otherwise

this will last a little longer period to see the led dot matrix display/digital display items.

Should wait for the transportion patiently!

For more or any questions, contact us freely via EMAIL or other IM! Energy Saving Specialist—

SHENZHEN NEWSHINE OPTICS CO.,LTD

Free Sample provided, please click 'Send' to contact us freely!
