Automatic Feeding Flexo Printing and Slotting Carton Machine

 Shanghai Automatic feeder printing and slotting Carton machinery

Outline

Automatic paper feeder is a constantly paper feeding device researched and produced for incontinuous mass production of the carton box printer, molding machine and die-cutter of the old chain paper feeding in carton box factory. This can improve manually incontinuous paper feeding and ensure the straight paper feeding, which not only raise working efficiency, but also reduce the labor strength and waste rate.

Main specifications:

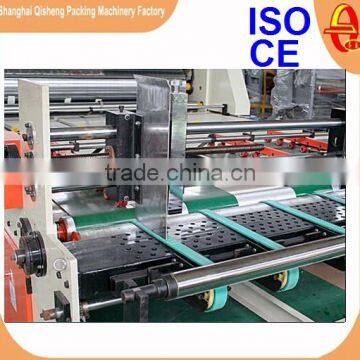

Automatic Paper feeding section

1. Cardboard size adjustment adopts screw roller adjusting system,      one man operating, simple and fast.
2. Available for adjustable paper platform, more adaptable for      kinds of cardboard, stable and precise paper feeding.
3. Adopts advanced seamless rubber strap, which has big friction,      long life, low voice, easy maintenance and high economic efficiency.
4. Double stretch power control, convenient and reliable.
5. Transmission roll adopts decorative design roll, which increase      the friction between strap and roll, ensure stable and fast cardboard      feeding.
6. This machine includes electric and magnetic clutch separating      brake system.
7. This machine adopts PLC auto program control, so it has high      automatic extent.
8. Frequency converter drives motor to realize stable velocity      change operating.
9. Light and electric signal brakes by PLC control power and      magnetic clutch to keep pace with the main engine.

Paper feeding section

–         Automation chain paper feed

–         The prop fixes position , ensures that paper feed is accurate.

–         Automatic counting.

Printing section

–         Planetary transmission and electrical positioning. 360-degree adjustment in both dynamic and static condition.

–         The embossing rollers get apart from printing template once machine stops.

–         The upper ink roller is equipped with load-free system that prevents ink from getting dried when machine is running.

–         Colors of 1 to 4 can be combined easily.

–         The pneumatic provides ink circulatory system from attracting style.

–         Top-quality paper separating and grooving blades are used.

–         Printing roller equipped with a rapid hang mould device.

–         Step pedal is used to control the side of printing plate when in mounting and dismounting.

Slotting section

–         360-degree electromotion adjustment of grooving position.

–         the four grooving blades linkage adjustment.

–         Top-quality steel blades are used to ensure slotting smoothness.

–         Gear wheel adopt 45 # steel forging , quenching of high frequency.

–         Non-bonds transmission gears are joined together, which ensures long-term printing precision.

–         Dip-in lubrication ensures long life usage.

–         Electromotion shifting and pneumatic locking is used on printing and grooving parts.

 Electric parts adopt international and domestic famous brand to ensure the stable motion
