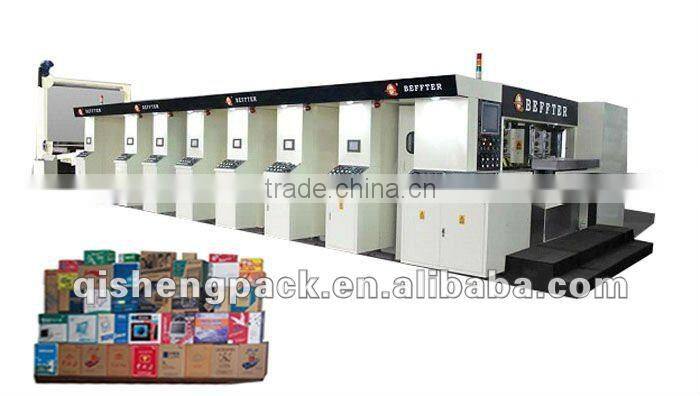

Fixed Five Colors Printing Glazing and Die-cutting Carton Machinery

Specifications

Fixed Five Colors Printing Glazing and Die-cutting Carton Machinery

Specification

1. The highest speed is 250 pics/ min.

1. Servo motor drive vacuum absorption leading edge paper feeding, the feeding accuracy is ± 0.5 mm; eliminate the machine vibration completely when feeding.

1. Paper feeding unit fixed dust extraction fan, brush and static electricity deducting equipment, completely eliminate the dust on the board, and make sure good printing quality.

1. Adopted fixed structure, single servo drive, eliminate re-error, make sure printing color accuracy, meet glaze, UV demand.

1. Full vacuum absorption transmission high accuracy, printing colors precision ± 0.20mm, pneumatic lift transport box for pasting convenience.

1. Vacuum absorption fan adopt high-flow fan, the noisy of machine lower the same machine.

1. Non-axis drive transmission servo motor and servo control system adopt Germany Bechoff original motor and drive system. Make sure the motor and system long term running accuracy and stability. Servo reducer adopts Taiwan APEX servo reducer, to meet system electromechanical transmission error 3 arcmin.

1. Anilox roll press, pressing and printing roller adjusting precision 0.03mm, numerical display.

1. Supply ink by Peristaltic pump, easy to adjust the speed flow, supply ink and circle ink pipe enclosed structure.

1. The drying system between color group, to meet high-speed printing requirement.

1. Vacuum absorption transportation in use of synchronization tooth belt, match up with accuracy aluminum alloy belt satisfied printing color accuracy, UV glazing transport belt adopt silicon rubber heat-resisting synchronizing belt, to meet synchronizing belt life on the infrared and ultraviolet irradiation.

1. 6 degree processing accuracy within every group. The coating gear box processed in the machine center, the middle of distance and form and position error <0.01mm.

1. . The machine frame and baffle, gear and boxes, feeding unit processed on the machine center, the middle of distance error <0.005mm frame and baffle 60mm.

1. The exchange of enclosed scraper system and rubber roller scraper structure, change speedy, fit for the high-screen dot and low-screen dot print.

1. Die-cutting unit adopt double servo drive to meet the phase adjustment and different speed adjustment. Make sure the rubber roller die-cutting accuracy <± 0.75 mm.

1. Glazing unit has two heating and drying system: infrared heater and ultraviolet heater can adjust at random according to demand,(the UV heater effective length 1800mm) to meet 4+2 printing demand, adopt the lengthen structure on the six colors printing vacuum absorption equipments, satisfy flexo glazing and save UV oil.

1. Enclosed scraper system original from Australia make sure adjust scraper on balance, clear the ink fast and in favor of 100 lines above demand.

1. The whole enclosed and beautiful appearance, make sure the printing paper was worked on the clear environment. Painting the paint on the appearance.

1. The control system adopts Schneider control system. Every unit separately installed touch screen for servo adjustment and clearance adjustment separately, Large store unit on the CNC, 9999 sets common use unit, change automatically, operate conveniently, transport data by computer, checking online, resolve the equipment fault fast and more speedy operate.

1. Cleaning the printing board and die-cutting memory: after cleaning, automatic reset memory and do not need to adjust again.

1. Setting the return to zero equipment on the printing and die-cutting parts.

1. Alarm system without ink, when printing ink smaller the setting value, system given the alarm automatically

1. Six colors printing can adjust accuracy only on the three paperboards. Simple and easy to operate.

One: Feeding unit

 Seven: Main parameters
