Home > Products > Automatic Printing Slotting Die cutting Machine > Automatic Corrugated Feeding Printing and Die Cutting Machine Carton Box Making Production Line

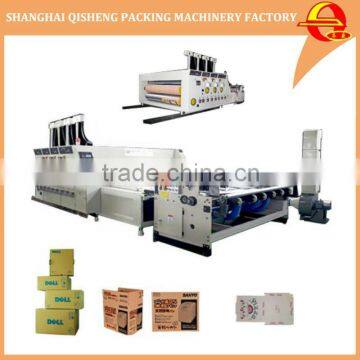

Automatic Corrugated Feeding Printing and Die Cutting Machine Carton Box Making Production Line
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Medical | |
| Packaging Type | Cartons | Packaging Material | Metal | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220/380V | Power | 4kw | |
| Place of Origin | Shanghai, China | Brand Name | Qisheng | |
| Model Number | ZYM | Weight | 12ton | |
| Dimension(L*W*H) | 6300X3300X2700 | Certification | ISO CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Automatica carton printing and die cutting machine.1.Paper feeding section.
2.Printing section.
3.die cutting section.
Automatic corrugated feeding printing and die cutting machine carton box making production line
Function and Feature:
Our company has developed ZYM series of roller printing and die-cutting machines, , which is a new ideal production equipment in carton production industry in recent years. The device is mainly the automatic document feeder board., printing, slotting, corner cutting, trimming, drilling (any shape), and other procedures forming a printing and die cutting equipment, the compact mechanical structure, simple operation, adjustment convenient, advanced performance, high efficiency, ensure that processing of high-grade cardboard carton production industry an ideal replacement machine. Suitable for a variety of shaped cardboard boxes or cartons.
Main technical parameter:
Model | ZYM1200*2400 | ZYM1200*2800 |
Color Group | Three Colour | Three Colour |
Maximum Mechanical Velocity(pages/min) | 60 pages/min | 60 pages/min |
Maximum Size of Paper(MM) | 1200*2200 | 1200*2500 |
Maximum Size of Printing (MM) | 1200*2000 | 1200*2500 |
Minimum Size of Paper (MM) | 320*350 | 320*350 |
Maximum Size of Die-cutting(MM) | 1200*2000 | 1200*2500 |
Blade for Die-cutting (MM) | 25.4 | 25.4 |
Thickness of standard printing board(MM) | 7 | 7 |
Power of motor | 11KW | 15KW |
Precision for paper feeding | Degree of bending of national standard,kicking paper error of plus or minus 1.5mm | Degree of bending of national standard,kicking paper error of plus or minus 1.5mm |
Precision for die-cutting | Degree of bending of national standard,slotting error of plus or minus 2.0mm | Degree of bending of national standard,slotting error of plus or minus 2.0mm |
Precision of color register | Degree of bending of national standard,colour register error of plus or minus 1.5mm | Degree of bending of national standard,colour register error of plus or minus 1.5mm |
Size of machine | 7400mm*3800mm*2500mm | 7400mm*4200mm*2500mm |
