Home > Products > HEUI test bench > HEUI Injector Test Bench

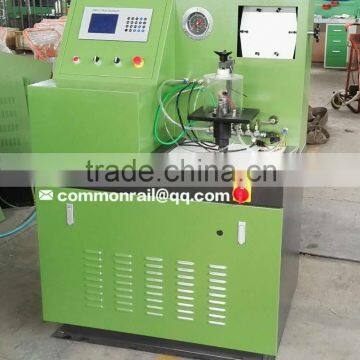

HEUI Injector Test Bench
US$ 300 - 4,000
/ Set
1 Set(Min. Order)
- QINGDAO
- T/T Credit Card
You May Like
-
3408 HEUI Test Bench
-
New HEUI TEST BENCH FOR for CAT C7 C9
-
New style high-end heui injector test bench
-
HEUI test bench,test all kinds of HEUI injectors
-
new design HEUI test bench( hydralic electronic Unit injector ) tester
-
HEUI test bench,test all kinds of HEUI injectors/HEUI hydraulic cylinder injector test bench can test all the HEUI injector
Product Details
| Voltage | 220V/380V | Certification | CE/ISO | |
| Applicable Models | DIESEL CAR | Brand Name | NANTAI | |
| Model Number | HEUI | Warranty | 1 Years |
Product Description
Application
test bench is designed to test up to four HEUI injectors, which are equipped on the following engines:
· Navistar T444E, as Ford 7.3L PowerStroke Engines
· Navistar DT466E
· Navistar I530E
· Caterpillar 3126B
- Adapting Kits for Testing One Ford 6.0L PowerStroke Engine HEUI Injector
· Adapting Kits for Testing One CAT C7/C9 HEUI Injector
· Adapting Kits for Testing One CAT 3408 HEUI Injector
Function
· Measurement fuel delivery of four HEUI injectors
· Sealing test for injector upper seat of the solenoid control valve
Specification
· AC Power: 3–Phase, 380V/50Hz or 230V/60Hz or 460V/60Hz
· Drive System for Actuation Pump
- 7.5kW AC Induction Motor
· VFD(Variable Frequency Drive) Motor Controller
· Actuation Pump
· Pressure Range of Actuation Oil: 0~3000psi (0~210bar)
· Low Pressure Test Oil Supply:0~60psi (0~4bar)
· Test Oil Tank Capacity:10.5US gallons (40 liters)
· Test Oil Temperature Control
· Range: 30~50°C
· Accuracy: +/- 1°C
· Digital Display
· Test Oil
· The HUS-1001 is designed to run on single test oil for both oil injection and high pressure actuation to HEUI injectors.
· The test oil should meet ISO4113 standard.
· Injection Quantity Measurement:Two Groups of 4 Graduates, 45/150cc
· Full Functioned HEUI Control Module
· Test Oil Filtration: 5µm, Full Flow
Main Features of HEUI Control Module
Adjustable Range of Equivalent Engine Speed of Fuel Injection | 0~4000 rpm |
Adjustable Range of Injection Pulse Width | 0~6ms |
Fuel Delivery Measurement Counter Range | 1~9999 |
Simple, User-Friendly Display and Mini-Key Pad | |
Optional Add-On and Accessories
· Refrigerator type fuel cooler for fuel temperature control,
· Adapting Kits for Nozzle Spray Pattern Analysis
· Injector Assembly Tool Kits
· O-Ring Sets
