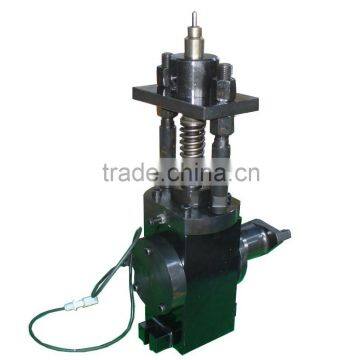

EUI/EUP TESTER/ CAM BOX

The repair tester is designed to perform repair tests for different type of Electronic Unit Injectors (EUI) and Electronic Unit Pumps (EUP).The tester consists of a mechanical cam box with specified EUI/EUP adapter kits and an electronic controller, The cam box will be driven by a standard high pressure fuel injection pump test bench.

Design Features

l          One cambox for all major EUI/EUP models with corresponding adapters and camshafts

l          Cambox mounting height 125mm (from the center of camshaft to bench mounting platform) for Bosch type pump test bench

l          Controller is designed for three kinds of drive mode:

n         Low voltage for most battery voltage driven EUI/EUP

n         High voltage for Cat EUI

n         Cumming Celect EUI

l          Adjustable Begin of Injection (BOI) in Crank Angle Degrees

l          Adjustable Injection Period (PW) in Crank Angle Degrees

l          Engine standard cam lobe designs:

n         Four levels of cam lift

n         Constant velocity cam lobe to generate higher injection pressure, 3 times higher than cheap eccentric cams
