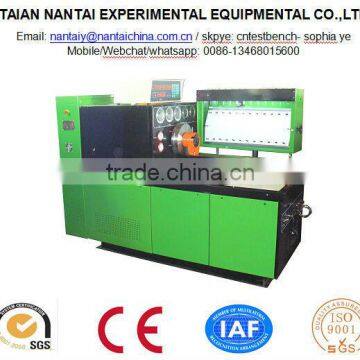

12PSB-IV Diesel injection Pump test bench

12PSB-III                    12PSB-IV

Attention: The differences between two models, 12PSB-IV has one more function (advance angel) than 12PSB-III. l Introduction

12PSB series diesel fuel injection test bench is design for customer’s require. This series test bench, include most popular model: 12PSB-III, 12PSB-IV, adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy.  It is the kind of product with high quality and good price in our business.

Main function

1. Measurement of each cylinder delivery at any speed 2. Test point and interval angle of oil supply of injection pump. 3. Checking and adjust the mechanical governor. 4. Checking and adjusting the distributor pump. 5. Experiment and adjusting of behavior of supercharging and compensatory 6. Measurement of oil return of distributing pump 7. Testing of the electromagnetic valve of distributor pump. (12V/24V) 8. Measurement of the internal pressure of distributor pump. 9. Checking of the advance angle of advance device. (Only for 12PSB-IV) 10. Checking the sealing of injection pump body 11. Install auto-sucking oil tube to check oil supply pump (including VE pump.)

Skype: cntestbench   Manager: Ye Shuang ( Sophia)

Technical characteristic

12PSB-III/IV

 Output power(KW)  5.5 7.5 11 15 18.5 kw
1. Test cylinders: 12

2.RPM 0-4000

3.Ten speed preset

4.With 12v/24v DC power

5.digital display of oil count times

6.Digital display of temperature.

7. With air supply  8.Measurement of oil return of distributing pumps.

9. Measure oil flux of VE pumps.

10.Measure the internal pressure of VE pump

11. BASIC COLOR: GREEN AND BLUE  or on request
