High Precision Aluminium Alloy Strips Straightening Machine on Sale

Introduction

    Series JY straightening machine is mainly used forprecision straightening for the metal bar after peelingor granding and pre-straightening  for the metal bar.

    The machine adopted special  curve between upper concave and the lower convex two straightening rolls to realize calendering and straightening at the same time,which greatly improved the working efficiency.

Series JY two-rolls Straightening Machine consists of two-beams and four-columns structure,prestressed structure and frame structure.

Components

 Main Machine

   The upper and lower body respectively

install a straightening roller,the upper roller is concave ,the lower roller is convex.

   According to the diameter and the material properties of the bar,respectively to adjust upper and lower straightening roller angle,electric lift part adjust the gap between the two straightening rolls,start the cooling lubrication system,driven by main motor,to complete calendering and straightening at the same time.

    Frequency conversion stepless speed,real-time display the gap between upper roll and lower roll.Guide sleeves are installed in the inlet and outlet.Its location can be adjusted,playing guide and support role.During processing,the bar can accurately enter and leace the straightening rolls.

Cooling Lubrication System

Cooling lubrications by cooling pump suction,through multiple pipelines from the front spray mozzle to the roll gap and the bar,playing cooling and lubricationing role.After converging,follow together into the coolant tank.Coolant tank design three layer protection filter,to ensure lubricating coolant cleaness.

Electrical System

    The transmission system adopts frequency conversion stepless speed regulation,feeding system,adjustment system,cooling and lubricating system controled by AC power.

The main power supply is AC380v 50Hz,control power supply is AC220V 50Hz.Control system for low voltage power supply(DC24v).


Entry Guide System and Exhaust System

The upper and lower cylinders respectively control the upper and lower nylon rollers lifting,meanwhile,two motors drive two nylon rollers rotating.Then clamp the bars entering the entrance of the guide sleeve.


Two nylon rollers clamp the workpieces and asssure the workpiece not easy to slip,reliable work.

 Auxiliary Machine

Automatic loader and unloader,greatly saving labor cost.

After straightening,all the collection racks are equiped with protective layer to avoid any scratches.

Rough Processing Flow

Characteristics

1,fast feeding and straightening speed,which can reach 10-30m/min.

2,with special carves ,it can straighten and calender materials at the same time.

3,highe precision.straighteness can be 0.15-0.4mm/m,surface roughness Ra≤0.8μm.

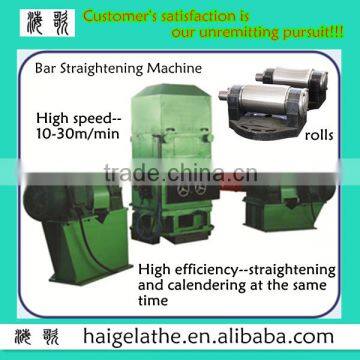

    The most vital part of a straightener is the two

straightening rollers, which desigined by our qualified engineers.The up roller is concaveand the lower one is convex,which formed a special curve to press strongly onto thematerials to realize straightening,as well as

straightening

Technical Parameters of JY80

Our Services

A. 12 months Warranty period.

B. 24 hours welcome to your enquiry.

C.Customized design is available. OEM& ODM are approved.

D.overseas installation,commssioning,training,etc.

E.Special discount can be provided to our distributor.

Company Overview

      Yantai Haige Machine Tools Co., Ltd (original Yantai Ruihai Machinery Co., Ltd) establishes in 1999 and is a professional company engaged in producing finishing equipment and processing equipment of bright material, such as centerless lathe (commonly known as peeling machine or flaying machine), straightening machine, abrasive belt grinder (buffing machine), screw whirling mill and their auxiliary machines. It is an innovative and high technology enterprise, which integrates research and development, production and sale of finishing equipment for professional slender axles

    Diameters of products manufactured by the machine vary from Φ5mm to Φ350mm. The company can contract for full-set planning, design and manufacture of metal bar, tubing, and finishing line of wire rod, and meet the needs of customers at different levels. We are able to help users achieve digitization and automation control and management. We can also meet the needs of larger enterprises at home and abroad, and enterprises which require the equipments have higher degree of automation, to fundamentally enhance users’ production efficiency and product quality.

    The company regards quality of products as the life. It has passed ISO9001 international quality system certification, and strictly enforces the ISO9001 international quality management system. Dependent on strong software and hardware facilities and strict quality control, the company has passed the acceptance of State Administration for Entry-Exit Inspection and Quarantine Bureau, and furthermore, centerless lathe and straightening machine have won the Export License of Product Quality.
