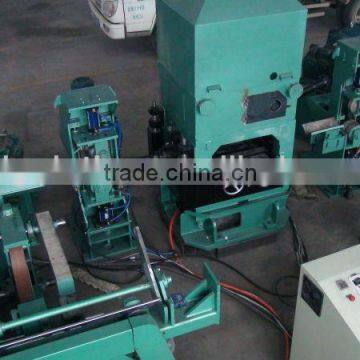

2-roller metal rod bar straightening machine

Specification

JY40

Raw

Material

Diameter Range(mm)

(excluding drawingmaterial)

Tensile Strength σ_b≤450(M pa)

Φ10≤d≤Φ40(Length ≥2000)

Tensile Strength σ_b≤1000(M pa)

Φ10≤d≤Φ38(Length ≥2000)

Surface Hardness

≤HB380(≤HRC42)

Straightness(mm/m)

Bright Steel≤3     Black Material≤4

Diameter Tolerance

Bright Steel≤IT10  Black Material d-2-GB/T702-2004

Circular Degree

≤50% of diameter tolerance

Surface Roughness(Ra)

Bright Steel≤3.2mm~6.3mm

Finished

Products

Straightness(mm/m)

Bright Steel≤0.25   Black Material≤1.0

Diameter Tolerance

Bright Steel≤IT8  Black Material:Much better than raw material

Surface Roughness(Ra)

Bright Steel≤0.8μm Black Material:Much better than raw material

Roller Quantity (pcs)

2

Roller Diameter(mm)

Φ200

Straightening Feeding Speed(m/min)

2~14

Main Machine Motor Power(KW)

30X 2

Lifting Motor Power(KW)

1.1

Outline Dimensions (Length*Width*Height)

(for your reference)

Main Machine   5.5mX2.0mX2.4m

Full Set(including Auxiliary Machine) 15.5mX3.6mX2.4m

Weight

(for your reference)

Main Machine 6.0T

Full Set(including Auxiliary Machine) 11.0T

Total Capacity(for your reference)(KW)

62

Compressed Air Source(user prepare by themselves)

0.5~0.8MPa,3m³/min,two-stage oil-water separator
