mobile and tablet PC view waterproof wifi rear view camera for heavy duty truck
- Guangzhou
- T/T Credit Card PayPal
You May Like
-
wireless rearview camera system wifi IR night vision front camera for car
-
Digital Signal APP control IP69 waterproof wifi wireless front camera for car
-
TF card storage HD 1080P smart phone APP control wireless rear view car camera
-
2015 Hot Good Night Vision Waterproof WiFi Reversing Cameras for Caravans
-
WiFi Car Camera New Lattice LED Light Night Vision Car Wireless Camera with Sun Visor
-
New Lattice LED Light Night Vision Car Wireless Camera with Sun Visor
Product Details
Type | Reverse Camera | Voltage | Other, DC12V to DC32V | |
Power | Max, 300 mA | Car Make | Truck,Tractor,Trailer,Car | |
Place of Origin | Guangdong, China | Brand Name | SHIVISION | |
Model Number | C0872 | Warranty | 1 Years |
Product Description
mobile and tablet PC view waterproof wifi rear view camera for heavy duty truck
Application Place
Widely used in all kinds of vehicles as front and rear view products.
Detail Specifications:
Features
Voltage: 12v-32v
Video Format: M-JPEG
Minimun illumination: 0 lux
Water proof and dust proof, fit for out door using
Camera project:0.3M 1/4 inch CMOS Sensor

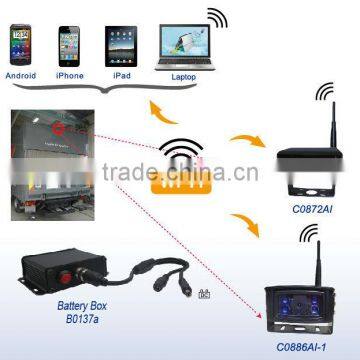

P to P transportation via WIFI,Support IphoneIPADAndroid smart phone remote surveillance
Data specifications
Image Sensor | 1/4 CMOS VGA DIGITAL Sensor PAS6371 | ||
Effective Pixel | 640*480 | ||
Day& Night | Auto/Color/B&W | ||
Video format | 640*480 30fps | ||
Video record | client software setup | ||
Mirror/Normal image switch | Client software setup | ||
Mirror | Client software setup | ||
Microphone | Yes | ||
Mini. Illumination | 0 lux(with IR) | ||
Transmit output power | 17dBm | ||
Transmitting distance | 30M,100m ( barrier-free) | ||
Mobile monitor | LAN Peer to peer connection monitoring via Smart Phone (iPhone or Android) | ||
Resolution | 640*368 (30fps),320*240(30fps) | ||
Video Compression | M-JPEG | ||
Image Compression | MJPEG | ||
Delaying time | 300ms | ||
compression ratio | 128Kbps~4Mbps | ||
Frame rate | PC:30fps(VGA),30fps(QVGA);IphoneIPAD:20-25fps(VGA), | ||
Wireless Standard | IEEE 802.11b/g/n,WEP/WPA1/WPA2 | ||
client software | UCCAM | ||
Connection | DC female | ||
Lens | f = 2.5mm | ||
Lens Angle | 90° | ||
Language | Chinese/English | ||
Waterproof protection level | IP69K | ||
Power (Max.) supply | DC12-32V |
Detail images:
