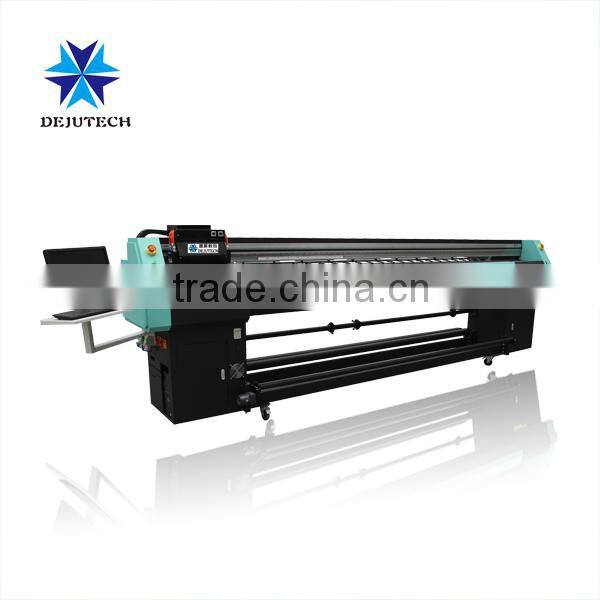

Latest Roll to Roll UV Printer With UV LED Lamp 3.2m , Wall Paper Printing Machine

 1. Ink detection alarm system
When anyone ink barrel color ink is about to
run out, this system can point out what color
ink you need to add ink.

 2. Use Vacuum Ink supply Systems
Use Vacuum Ink supply Systems that satisfy
with long time printing .

3. High-power to the servo motor
Original DELTA servo motor, with digital accurate driver,

 developed the running accuracy of the machine.

4. Print head height adjustment
Easy operating printhead height adjustment could be used

according to all kinds of media thickness and actual printing needs.

5. leg removable structure
Can place 12 leg removable printers to one 40’ container

= cut down the freight cost = cut down the incoming price

6.Use imported UV-LED CURING LAMP
Use international famous brand UV-LED curing lamp.non-deformation, non-cracking, rapid drying, long using life.

Model

F 3308

Top Resolution

180x720,240x720,180x1080,240x1080,
180x1440,240X1440

UV energy source

UV-LED CURING LAMP

Media printing width

3.2m(126 inch)

Speed

2pass 80m2/h 3pass 65m2/h 4pass 45m2/h

Color

C ,M,Y,K / C,M,Y,K, L C,LM (Optional)

Width

3.2m(126 inch)

Media handling

Roll to Roll

Media

aper / Advertising banner /PET/PC/ PVC / Adhensive vinyl and so on

Ink

UV LED curing Ink

Image format

TIFF/JPG/EPS/PDF/BMP

Working flow

Use photoprint with PRT format to print

RIP software

photoprint 12

Control station

Windows 2000 workstation / Windows XP / Vista /Window 7

Operation environment

Power Supply:AC,50HZ/60HZ 220v(10%)
Distortion:<0.5% Temperature:18°C~26°C Humidity:40%~70%

Dimension

4420X1350X1400MM

Weight

650Kg
