IP69K Waterproof Vehicle Mounted Night Vision WIFI IP Rear Camera
- Guangzhou
- T/T Credit Card PayPal
You May Like
-
1.0 Megapixel CMOS Sensor Outdoor Waterproof Vehicle Mounted Reverse Car Camera
-
Home Usage Night Vision Robot Type Wifi ip Network Camera With Cloud Storage
-
IR Night Vision Smart Phone Monitor Mini ip Wifi Camera
-
1.3MP 720P DC5V With 32G TF Card P2P Wireless IP Cameras
-
Baby Monitor Type P2P Digital Wireless 1.3 Megapixel WIFI IP Camera
-
2014 New Security Product CCD 420TVL Hidden Doorbell Camera in CCTV Camera
Product Details
| Place of Origin | Guangdong, China | Brand Name | SHIVISION | |
| Model Number | C0886AIIP | Type | Digital Camera | |
| Style | Box Camera | Sensor | CMOS | |
| Technology | NetWork | Special Features | Waterproof / Weatherproof |
Product Description
IP69K waterproof vehicle mounted night vision WIFI IP rear camera
Application Place
Widely used in all kinds of vehicles as rear view products.
Detail Specifications:
Data specifications
| Specification | HD 720P | ||||
| Operating System | Embedded LINUX,Haisi Series Hi3516C DSP | ||||
| Image Sensor | 1/4" 1.0 megapixel CMOS sensor | ||||
| Effective Pixel | 1280(H)*720(V) | ||||
| Electronic Shutter | 1/50(1/60)s~1/100,000s | ||||
| Signal System | PAL/NTSC | ||||
| Video Compression | H.264 HighProfile, Support JPEG photograph,Support dual stream 0.1M~6Mpbs ADJ; Support Frame Rate 1~30fps ADJ; | ||||
| Video Bite Rate | 32 Kbps~8Mbps | ||||
| Dual Stream | Main Stream:1280*720;Second Stream:704*576; | ||||
| Frame Rate | 50Hz:25fps 1280*720) 60Hz:30fps (1280*720) | ||||
| Min. Illumination | Color:0.5Lux @(F1.2,AGC ON) B/W:0.08Lux @(F1.2,AGC ON) 0 Lux with IR | ||||
| Image settings | Saturation, Brightness, Contrast adjustable through Client software or web server | ||||
| Ethernet | RJ-45 (10/100Base-T) | ||||
| Network Protocols | TCP/IP, HTTP, SMTP,DNS, DDNS, DHCP, FTP, NTP, PPPOE, UPNP etc. | ||||
| Lens | 2.8mm | ||||
| Day/Night | IR-cut filter with auto switch | ||||
| Intelligent Alarm | Motion detect,Video loss,Network disconnection,IP address conflict,Storage full,Storage error | ||||
| ONVIF | YES | ||||
| Mobile monitor | Support mobile monitor(iPhone, Android) | ||||
| Client-side | Provide web, CMS, center manage software (MYEYE), and SDK for development | ||||
| Power Supply | DC12V-32V | ||||
| Protection Range | IP69K | ||||
| Operating Environment | -10°C ~+60°C, 10%-90% | ||||
| IR distance | 10-25m | ||||

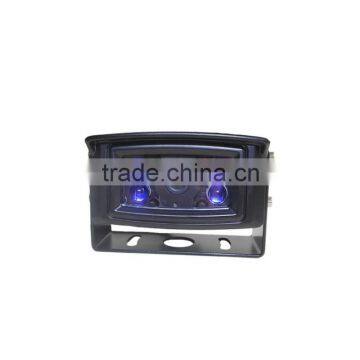

Detail images:

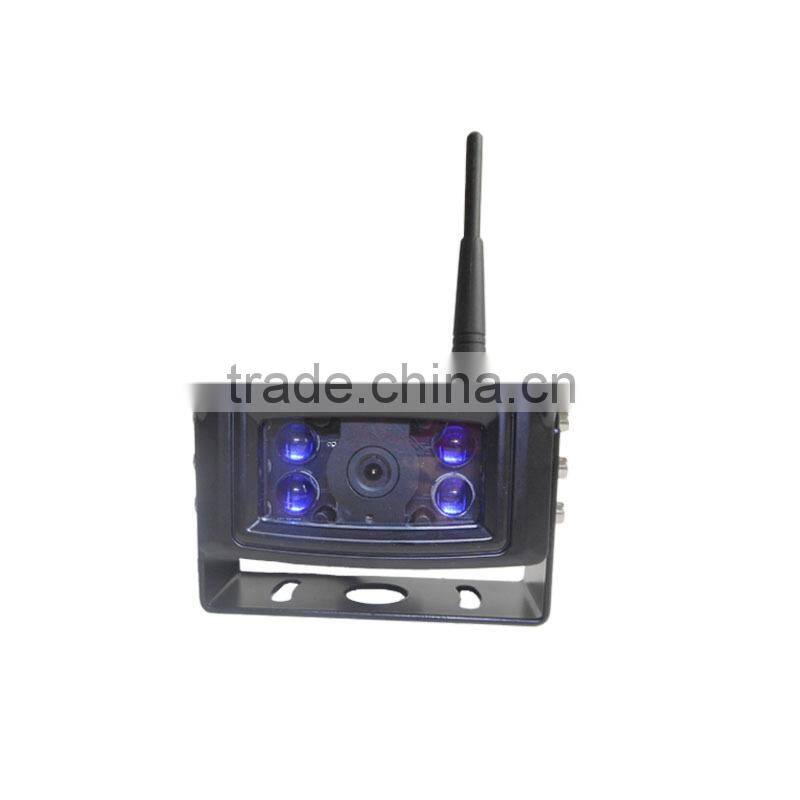

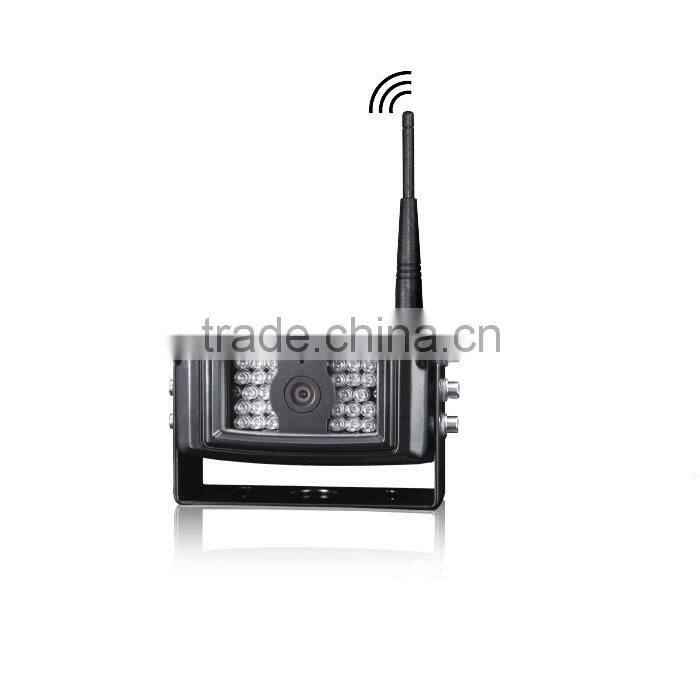

Those two types WIFI IP camera use the same camera shell ,the different is the IR LED lights.Big blue LED lights is our new type,night vision function is better but many clients like the camera with many lights ,so we do two type.
One set in one carton or as clients' requirement
For samples the products can be shipped within 7days ,For order the lead time is within 15days.
We can support all kinds of delivery ways such as by sea ,by air or all kinds express,client also can use their own carriers.
1.All goods will be inspected and test before shipment
2.All inquiry will be responded within 24 hours
3.Support high quality,competitive price and fast lead time
4.Provide lifetime technical support service
5.You can pay your order via T/T,WU,Paypal and so on
Main market show
Shivision CO., Ltd located in Tianhe District, Guangzhou, is a high-tech enterprise engaged in researching, developing, manufacturing and marketing vehicle rear vision products and surveillance products. Being in this field for more than 10 years, our company has been bringing in advanced manufacturing facilities, cutting-edge technology, and high-quality professional talents. The company has independently developed a series of intelligent cameras, digital LCD, video signal wireless processing system, image processors, and video recorders, etc.
Our company insists on "Independent R&D" and "Customer Oriented" as the business philosophy. We maintain advanced innovation ability, and keeps strict quality control of products. Through years of effort, our company has gained recognition and reputation from the majority of customers;the products are exported to overseas.
We have established trade relations with more than 150 countries, and the export rate has reached more than 95%. In addition, the company has been certified with the highest international level of quality management system in auto industry ISO/TS16949:2009, and we are also in strict accordance with the EU ROHS standard during manufacturing. Meanwhile, a variety of our products have reached the highest waterproof rating of IP69K, and approved with CE, FCC, and EMARK, etc. Besides, our company has won 4 Design Patent, 2 Utility Model Patent, and 7 Software copyright, which enable us to become one of the world's largest suppliers of rear view products in the world.
Testing machines show:
Certications:
1.Q: I like this appearance but I don't like the detail specifications, can I change the data?
A: Of course,our engineers will design the goods according to your requirement.
2.Q:May I buy 1 sets as sample for testing?
A:Yes. We can support you the sample but not free.Once when the order is confirmed we can reimburse buyer the charge.
3.Q:Which certifications your products have?
A:ISO,CE,RoHs,FCC,E-MARK and so on.If you need others we also can do for you but you have to reach the quantity.
