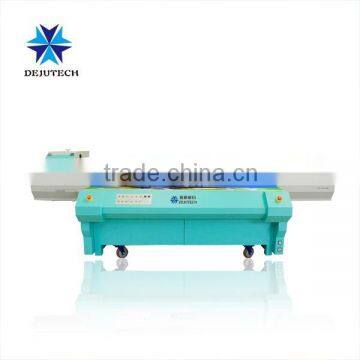

UV Glass Flatbed Printer With Ricoh GEN-5 Print Head

                                       UV glass flatbed printer with Ricoh  GEN-5 print head

Main Features

Applicable to a wide range of materials, including hard media like glass, ceramic tile, composite aluminum, metal, wood, stone, billboard, acrylic, Plexiglass, foam board, packaging paper, and flexible media like wall paper, glistening film, canvas, carpets, leather, paper and more.

 Technical advantages:

Mechanic Superiority
1.Mechanic Superiority: dual lead screw & dual guider broadside scanning mechanical structure, industry-leading machinery precision; Table loading capacity of 150KG/sqm,automatic take-off enables the printing on different sizes of media.

2.8-zone vacuum table with reversible blower for ease of loading/unloading.

3. Unique media alignment bar allowing a fast and easy media loading.

4. All-steel body, extruded aluminum table, double straight-line Guides.

5.Key parts from the most famous brands, such as IGUS towline cable from Germany, MEGADYNE synchronous belt from Italy, DELTA serve motor from Taiwan……

6.UPS inside lasting more than 4 days when the power is off.

7. Automatic altimeter system uses infrared-sensitive probe, auto-detection to adjust the height, and precise positioning. This system replaces of traditional manual lift system and it's easy to operate.

Pressure & Ink supply control:
Closed-loop automatic control, reliable printing quality; pneumatic control components imported from Japan, guaranteed quality.

The machine can be configured as K C M Y/K C M Y LcLm/K C M Y *2 and K C M Y +W;Moreover,the machine could spray with white color as bed or cover or spot-color printing.

Technical Specifications
