Home > Products > SMD LED Chips > SMD LED
SMD LED
                            US$ 0.01 - 0.01
                                                            / Piece


                                                1000 Pieces(Min. Order)

                    - Shenzhen or Guangzhou or HK
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
Product Details
| Model Number | JL-3528-W | Chip Material | InGaN | |
| Emitting Color | Warm White | Luminous Intensity | 7-8LM | |
| Luminous Flux(lm) | 7-8LM | Power | 0.06W | |
| Power Dissipation | 80 | Color Rendering Index(Ra) | 85 | |
| Color Temperature | 2800-3000K ,6000-6500K ,10000-13000K | Operating Temperature(℃) | -25, +80 | |
| Storage Temperature(℃) | +40, +60 | Place of Origin | China | |
| Brand Name | JL | Certification | CE |
Product Description
Product Description
Factory LED Diode red/yellow/blue/green/pink LED SMD 3528 high quality
| Item | Symbol | Test condition | Min | Type | Max | Unit |
| Forward voltage | VF | IF=20mA | 3.2 | _ | 3.4 | V |
| Reverse current | IR | VR=5V | _ | _ | 10 | μA |
| Luminous intensity | IV | IF=20mA | 7 | _ | 8 | lm |
| Color Temperature | CCT | IF=20mA | 6000 | _ | 6500 | K |
| Color Rendering Index | CRI | IF=30mA | _ | 85 | Ra | |
| Spectrum line half width | Δλ | IF=20mA | 60 | _ | 70 | nm |
| Viewing Angle | 2θ1/2 | IF=20mA | 120 | _ | 140 | deg |
Remark:The tolerance of intensity:±15%, The tolerance of wave length:±1nm,The tolerance of forwards voltage: ±0.05V.     Only reference for above data when testing.
Detailed Images
Die Bond

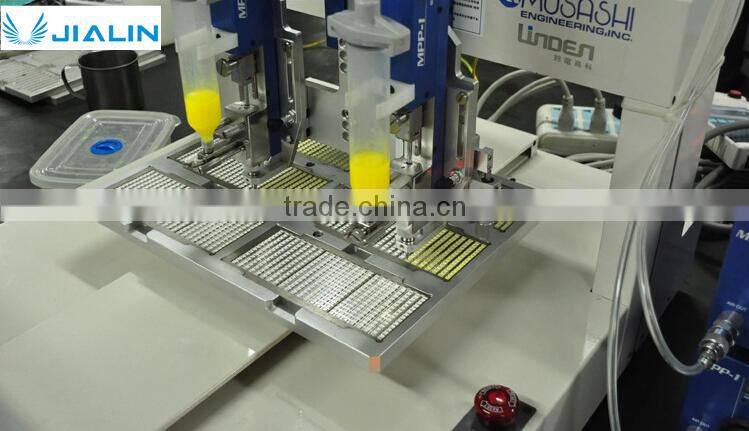

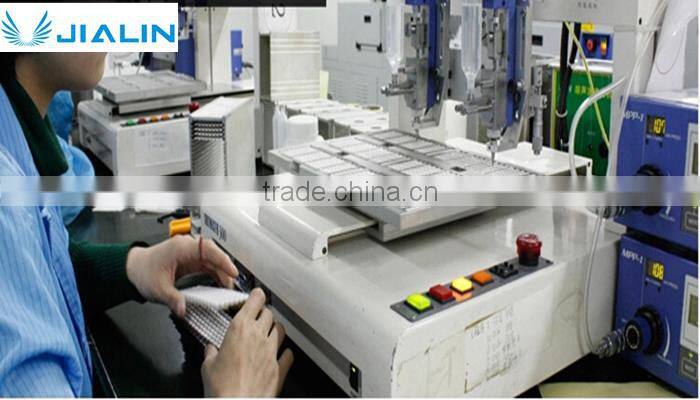

Fluid Dispensing

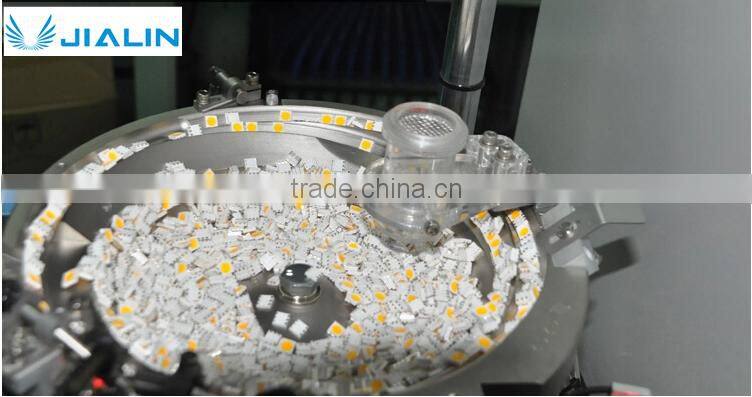

Beam Split

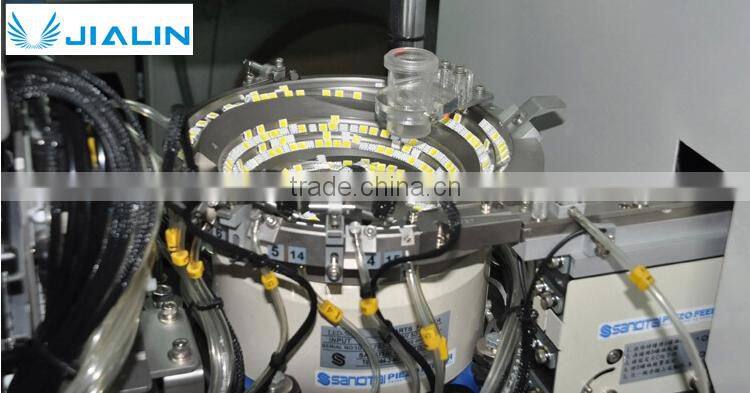

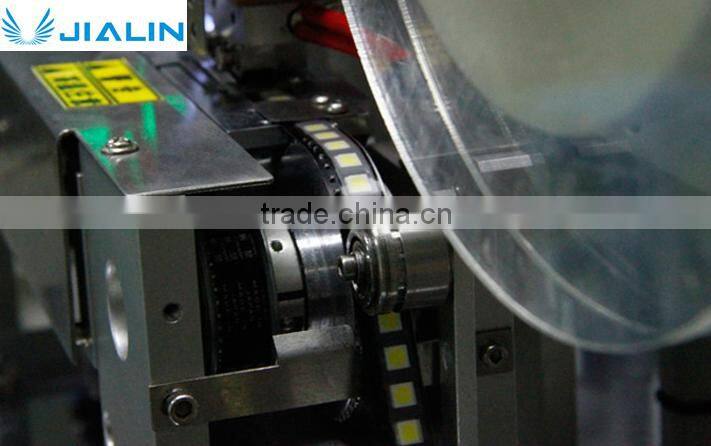

Braid

Finished Products

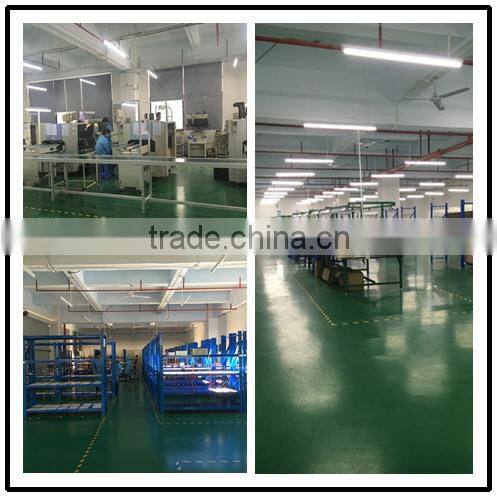

Company Information

Contact Us
Helen Taylor
Mobile:0086 186 8226 0580
Tel:0086 0755 86594858 Fax:0086 0755 86594858
Skype:helen.led QQ:2370753731
Shenzhen Jialin Technology Co.,Ltd.
Add: A2115, Phase 3, Hongji Garden, Zhongxin City, Longcheng Street, Longgang Dist., Shenzhen, Guangdong, China
