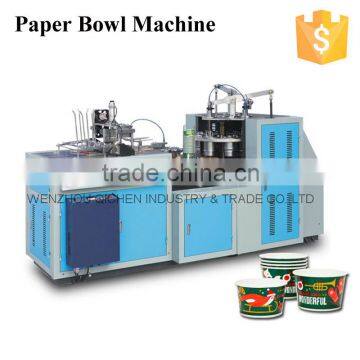

Ultrasonic Best Quality Paper Bowl Machine

Our service

we have been always insisting on developing specialization strategy in our industry and creating high quality products and service. We provide accessories and maintenance of the main parts during warranty. After the warranty, you can also get the best and professional service from us.

Description:

alibaba china paper bowl machine makes both one-side-PE-film-coated and two-side PE-film-coated

paper bowls after running a whole procedure of automatic pre-printed-fan-shape-paper feeding,

two-step pre-heating, bowl-side-body sealing(ultrasonic wave), silicone-oil lubricating(for top curling),

bottom punching,two-step bottom heating, bottom pre-folding, bottom knurling, top curling and bowl

discharging.

It is an ideal equipment of making soup paper bowls, noodle bowls, bigger paper cups and other

large food cone-shaping containers etc.

Samples made by paper bowl machine

Technical Specification

Size Range

Advantages

(1) Adopt 140# Index Gear Box for paper bowl machine, Normal one is 125 type.

140# type is much bigger and stronger than 125 type.

(2) We use two Index Gear Box (one is 140#, another one 100#), normally one gear box

is used in the paper bowl machine. 2-Gear Box keep the machine more stable.

(3) As showed above, we use two tension bars, while normally one is used.

Two make this part balanced, it will not swing after a long time.

Paper bowl machine competitive advantages:

 1. We using Divided box is 125 type, which has two years warranty.

 2. We using Speed reducer: 1:30 100 type

 3. We using φ30 import steel shaft for the machine

 4. We using 3 Cam to control the folding process.

 5. We using two times paper feeding process.

6. We using Multilayer suckers for the paper taking

(1)125# gear box,

We use 125 type gear box, which has two years warranty.

Normally, 100 type gear box is used.

v  125 type is much bigger and stronger than 100 type.

v  100 type gear box, if used for one year, is easier to have problem.

The gear box is very important to the machine. It control the whole machine, if there are some problems with these two parts, then, you have to change the gear box. In this case, the machine should be taken apart, because it is inside the machine. It takes much time, and sometimes you cannot install the machine correctly. So it is necessary to use better gear box.

(2) The frame of the machine

The frame of new machine is thicker which can bear more weight than thinner one. So when the machine works it is more stable.

Paper bowl machine whole production line
