D Oriental DOT-C1spray Bake Paint Booth Cabinet Spray Booth

D Oriental DOT-C1spray bake paint booth cabinet spray booth

Outside Size (mm) L*W*H: 7000*5350*3300

Inside Size (mm) L*W*H: 6900*3900*2600

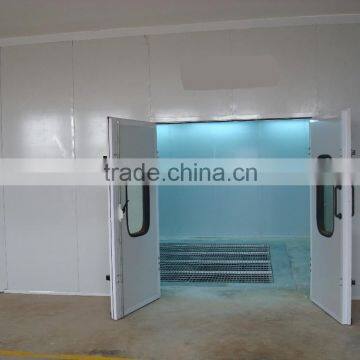

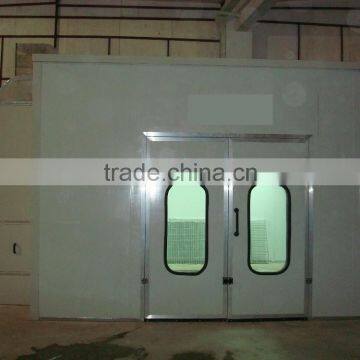

Main Door: 3-folds, 2800*2500(mm) W*H

Personal Door: 1 fold, 600*1800(mm) W*H

Total Power: 12.5kw

Cabin System:

  1. Wallboard: EPS (epispastics polystyrene) Colorful Steel Skin Boards, 50mm Thick, Tongue & Groove construction, Compound Construction, Aluminum-alloy Frame. Anti-flame and Heat-Insulation;

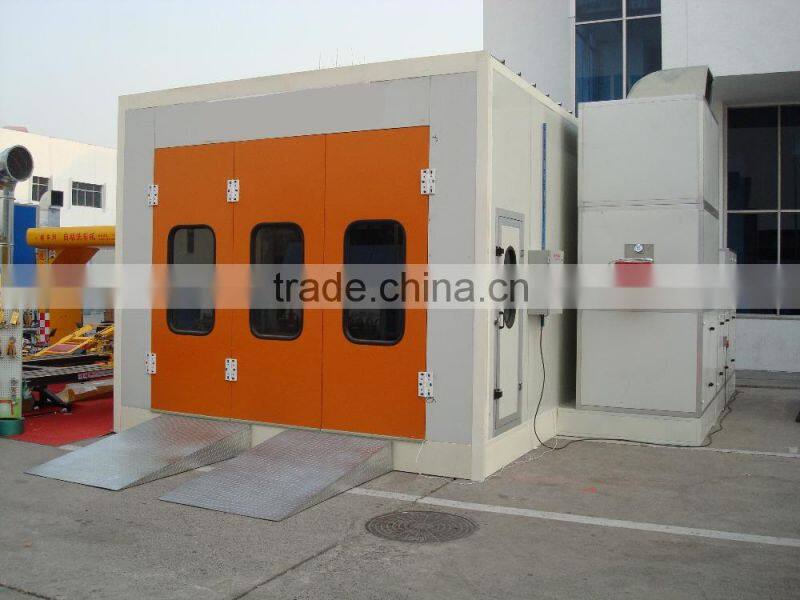

  2. Basement: Galvanized Steel Assemble, Height is 300 mm. Full grids. Two Embossed Steel Ramps: 1060x1750mm (W*L)

Generator setting type:

Side upper intake air, powder quadrate steel frame, coated steel.

Air Circulation System:

1. Inlet Fan:

Double-intake centrifugal fans

Blower capacity: 24000m3/h;

Power: 4kw;

Quantity: 2sets;

2. Outlet Fan:

Axial fan

Blower capacity: 20900m3/h;

Power: 3kw;

Quantity: 1set.

Purification System:

Dual filtering structure, the primary filter can capture granules larger than 10um. Ceiling filter can capture granules bigger than 4um. Its filtering rate reaches 98%. Air pressure balance gauge, TSP less than 1.2mg/m3;

Heating System:

  1. Burner: RIELLO G20 oil burner, heating productivity: 200000 Kcal/h, 1 set.

  2. Heat Energy Converter: stainless steel heat exchanger, argon arc welding;

  3. Max Temp: 80 census degree. Anti-explosion hole for protection. Electric damperfrom spraying to baking cycle.

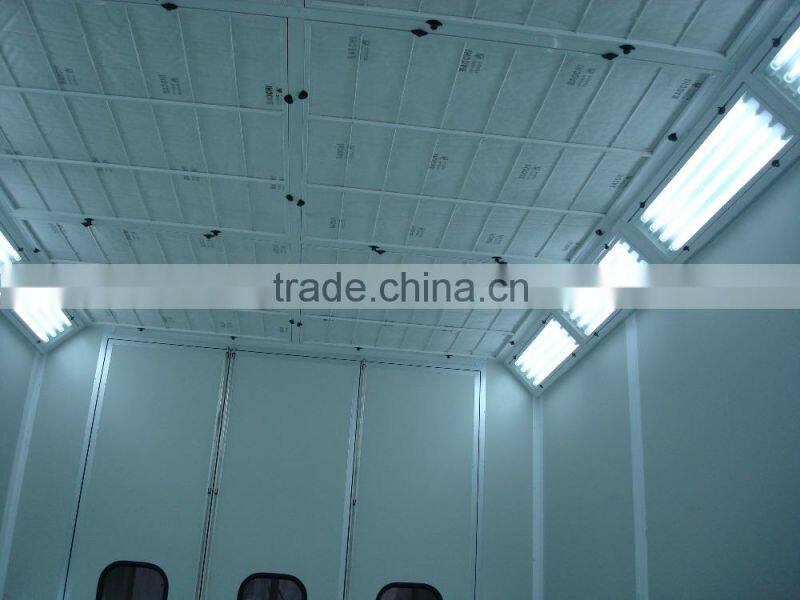

Light System: Ceiling lights: 8 units*3pcs*36w; Side lights: 8 units*2pcs*36w

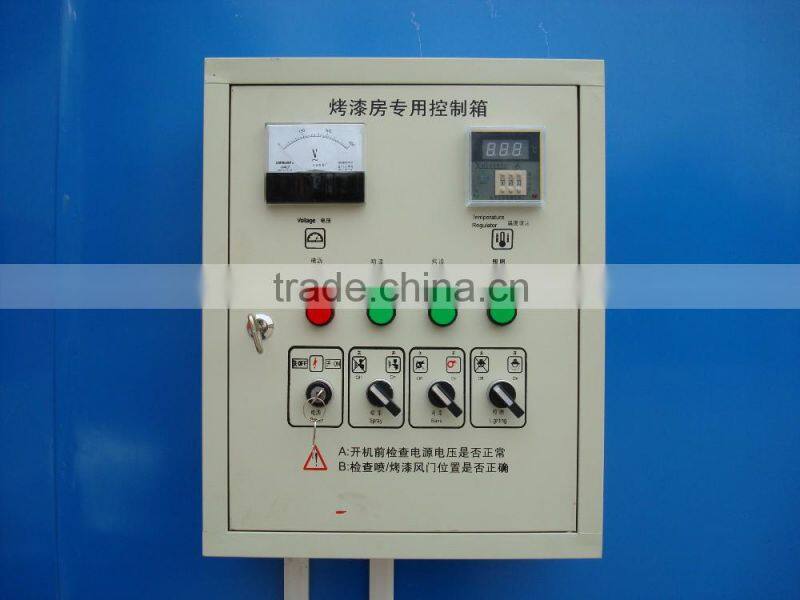

Controlling System: Lighting switch, spraying, risen-temperature spraying, baking, temperature controller, time setting, emergency stop, limited-temperature controller.

Environmental System: Multi-Layer Fiberglass Filter, active-carbon.

1. Customized products: all of the machines in our factory can be customized. If you have any other requirements of the machine, please feel free to contact me. We can design it for you.
2. Payment terms: T/T. 30% in advance after order confirmed, 70% in balance before
3. Delivery time: To effect shipment within 30 days after the receipt of deposit.
4. Warranty time: 1 year. During warranty time, we will deliver free spare parts through courier on our account if there happened to be any fault caused by our products' quality.
5. On-site services: We could send our engineer to customer's place for installation/trouble shooting/repair work.

Jinan D Oriental Technology Co., Ltd. is a China based corporation, integrating R&D, design, manufacturing, marketing and customer services. With development of more than a decade, we have held a steady position on painting equipment, automatic production line and automobile repair & maintenance industries.

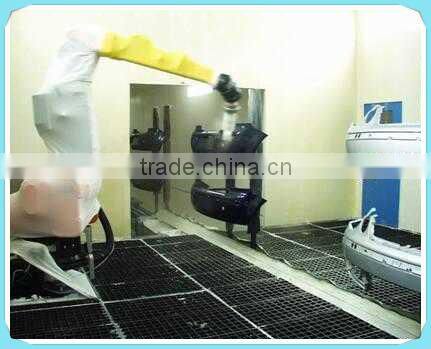

The Automatic Business Division was founded in 2008 to apply robotic spray baking system on composite materials, precise instruments, automobile industry, metal appliances, rail transportation, sanitary industry and furniture industry etc. D Oriental has been rewarded as Jinan Municipal Hi-Tech Company relying on our R&D and technology advantages.
