China manufacturer grade 80 alloy stainless steel chain
- shanghai ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | koto(lifting chain), koto(lifting chains) | |
| Model Number | KT-80, G80 | Structure | Welded Chain | |
| Function | Conveyor Chain | Material | Alloy | |
| Standard or Nonstandard | Standard |
Product Description

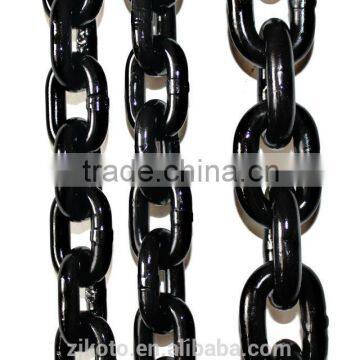

China manufacturer grade 80 alloy stainless steel chain
1)The G80 black lifting chains are widely used and enjoy high reputation both at home and abroad.
2)G80 black lifting chains are hot-dip galvanized with the diameter from 3mm to 24mm
3) we can design the chains ourselves
Size mm | Deviation±mm | Pitch mm | Deviation max | Deviation min
| Inside Width mm | Outside Width mm | Weight Kg/m | Working loae kn | Proof lood kn | Break load kn |
6 | 0.24 | 18.00 | 18.50 | 17.50 | 7.80 | 22.20 | 0.80 | 1.12 | 28.30 | 45.20 |
7 | 0.28 | 21.00 | 21.80 | 20.40 | 9.10 | 25.90 | 1.10 | 1.50 | 38.50 | 61.60 |
8 | 0.32 | 24.00 | 24.70 | 23.30 | 10.40 | 29.60 | 1.40 | 2.00 | 60.30 | 80.40 |
10 | 0.40 | 30.00 | 30.90 | 29.10 | 13.00 | 37.00 | 2.20 | 3.15 | 78.50 | 126.00 |
13 | 0.52 | 39 | 40.2 | 37.8 | 16.9 | 48.1 | 3.8 | 5.30 | 133 | 212.00 |
16 | 0.64 | 48 | 49.40 | 49.60 | 20.80 | 59.20 | 5.70 | 8.00 | 201.00 | 322.00 |
18 | 0.90 | 54.00 | 55.60 | 52.40 | 23.40 | 66.60 | 7.30 | 10.00 | 254.00 | 407.00 |
20 | 1.00 | 60.00 | 61.80 | 58.20 | 26.00 | 74.00 | 9.00 | 12.50 | 314.00 | 503.00 |
22 | 1.10 | 66.00 | 68.00 | 64.00 | 28.60 | 81.40 | 10.90 | 15.00 | 380.00 | 608.00 |
26 | 1.3 | 78.00 | 80.30 | 75.70 | 33.80 | 96.20 | 15.20 | 21.20 | 531.00 | 849.00 |
Our conmpany is a private company that specialised in the production of various kinds of chains including agriculturcal chains,industrial lifting chains,roller chains,leaf chains,and so on.
We have a full range of chains,Advanced equipment make sure to produce superior alloy steel chains,with medium frequency quenching and anticorrosive finish.Non standard chains are also avalibale as customers requst.
If any of the item interest you,pl feel free to let us know as soon as possobile.We shall be glad to send our qutation upon the receipt of your concrete enquiries
