YX-320 Label converting machine
- 15 Set / Sets per Month
- ningbo or shanghai
- T/T Credit Card
You May Like
Product Details
Place of Origin | Zhejiang, China | Brand Name | YINGXUAN | |
Model Number | YX-320 | Condition | New |
Product Description
Specifications

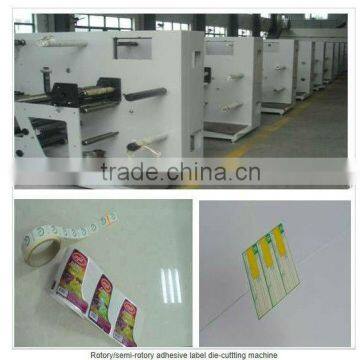

YX-320 rotary/semi-rotary label die-cutting machine is new developed converting machine equips with inline slitter.YX-320 rotary/semi-rotary label die-cutting machine adopts latest Rexrtoh-Bosch (Germany) servo and control system
include: unwinder, web-guider, lamination, register die-cutter, slitter and rewinder.
The register die-cutting system is our patent product, it can be full rotary or semi-rotary die-cutter
according to the production requirement.
When semi-rotary die-cutter, the tension among unwinder,
web-guider and rewinder will be the same (different from traditional intermittent type), the material
will not run away during the die-cut.semi-rotary die-cutting unit adopts one big magnetic cylinder,
if you have different applications, the only job is to change the flexible die.
Main Technical Parameters:
Model type | YX-320 |
Max. Die-cutting speed (rotary) | 120m/min |
Max.Die-cutting speed (Semi-rotary) | 65m/min |
Max. Die-cutting length (rotary) | 190.5-539.75mm |
Max. Die-cutting length (Semi-rotary) | 100-350mm |
Max .Die-cutting width | 300mm |
Max web width | 320mm |
Max. Unwinder dia. | 600mm |
Max. Rewinder dia | 600mm |
Die-cutting accuracy | ±0.1mm |
Slitting width | ≥20mm |
Power supply | 380V 3P |
