Home > Products > flexo printing machine > Flexo press (ZBS-5320) ,Flexo printing machine,Printing machinery Label printing machine

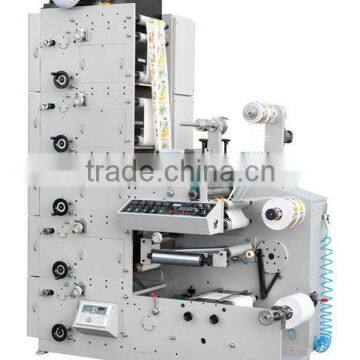

Flexo press (ZBS-5320) ,Flexo printing machine,Printing machinery Label printing machine
Negotiable
/ Set
1 Set(Min.Order)
- 20 Set / Sets per Month
- ningbo or shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Plate Type | Letterpress | |
| Place of Origin | Zhejiang, China | Model Number | zbs-320 | |
| Usage | Label Printer | Automatic Grade | Semi-Automatic | |
| Gross Power | 28KWS | Certification | CE |
Product Description
Specifications
double side flexographic printing machine is suitable for printing roll material, It 's an ideal machine for narrow size label1 Adopt the ceramic anilox cylinder to transfer the ink.
2, Unwinding and rewinding are controlled by magnetic power brake, clutch, (Or controlled by auto tension controller of Mitsubishi of Japan).
3, Each printing unit adopts 3600 plate-adjustment.
4, IR dryer for each printing unit.(UV dryer is for option)
5, This machine has die-cutting station, and it can make printing and die cutting finished in one process.
6, The ink rollers will be separated from the printing roller, and keep running when the machine stopped.
7, The main motor adopts frequency conversion stepless timing motor.
8, The machine can finish material-feeding, printing, lighting, drying, laminating, die-cutting and rewinding in a lump.It is an ideal machine for printing note and top-grade adhesive label
B.MAIN TECHNICAL SPECIFICATION
Printing speed | 50m/min |
Printing color | 4-6colours |
Max. width of paper | 320mm |
Max .printing width | 310mm |
Max. unwinding diameter | 600mm |
Max. rewinding diameter | 600mm |
Printing length | 175-320mm |
Precision of chromatography | ±0.1mm |
Dimensions | 2.0mX1.1m X2.6m |
Machine weight | About 2200kg |
