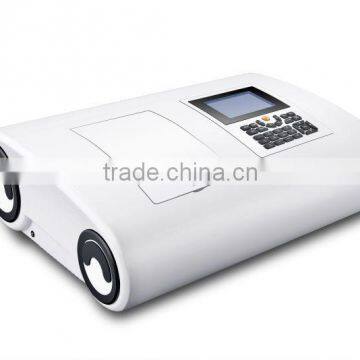

UV-9000

Features

   The innovative optical layout and state of art mono-chromator with high grade blazed holographic grating ensure accuracy. Its integrated design assures long term stability and durability.

   The precisely aligned detector and quality deuterium and halogen lamps enhance the precision across the UV/vis spectrum starting from 190nm and into the near-infrared 1100nm.

   Online software upgrade capability via Internet(for stand-alone models)

   Full A4 print-out of graphs and tables of results with popular inexpensive printers such as HP or Epson Deskjet.

   Real-time clock for date and time stamping of results

   Large LCD display (320*240 Dots Matrix)

Specifications

 Model    UV-8000SH

 Optical System      Double Beam(1200 Lines/mm Grating)

 Wavelength Range       190-1100nm

 Bandwidth     0.5/1.0/2.0/4.0nm

 Wavelength Accuracy  ±0.3nm

 Wavelength Repeatability    0.2nm

 Photometric Accuracy ±0.3%T

 Photometric Repeatability   0.2%T

 Photometric Range      -0.3-3A,0-200%T,0-9999C

 Stability ± 0.001A/h @ 500nm

 Baseline Flatness  ± 0.001A/h

 Noise     ± 0.001A/h

 Stray Light     ≤0.05%T @ 220nm,360nm

 Data Output Port  USB

 Printer Port   Parallel Port

 Display  320*240 Dots LCD

 Lamps    D2  Lamp & W  Lamp

 Detector        Silicon Photodiode

 Power Requirements    AC   220V/50Hz or  110V/60Hz

 Dimension     625*430*206mm

 Weight  30kg
