Home > Products > Fine wire drawing machine > 24DW fine wire drawing machine
24DW fine wire drawing machine
US$ 6,500 - 7,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T
You May Like
-
high speed aluminum wire drawing machine
-
24DW fine wire pulling machine/copper wire drawing machine
-
HXE-24DW Fine copper wire drawing machine Horizontal
-
fast small fine round copper wire drawing bench
-
HXE-24DW High speed fine copper wire drawing machine
-
fine wire drawing machine Competitive price small wire drawing machine china factory making cable equipment
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HXE | |
| Model Number | 24DW | Usage | Drawing |
Product Description

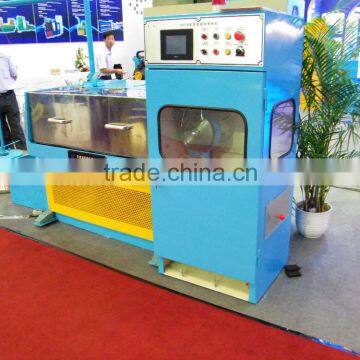

High speed copper wire drawing machine - horizontal type is used to drawing the copper wire from 0.6-1.2mm to 0.08-0.32mm. The max.line speed is 2500 meters per minute.,so the machine is of high efficiency. Besides it is easy to operate and maintain.
product parameter
| inlet diameter | 0.6-1.2mm |
| outlet diameter | 0.08-0.5mm |
| Max. line speed | 2500m/min |
| dies number | 24 |
| slip ratio of m/c | 13%+8% |
| capstan | ceramic plasma |
| Max. capstan diameter | 242mm |
| fix speed capstan diameter | 207mm |
| frame | iron cast |
| main motor | 15KW three phase AC motor |
| spool motor | 3.7KW three phase AC motor |
| revise system | PID synchronous control spool |
| power control | inverter control |
| transmission type | flat belt |
| pay off method | over-head |
| traversing unit | flat belt + synchronous motor |
| tension control | weight balance by swing arm |
| lubrication type | spray |
| applicable spooler size | 300mm |
| spooler capcity | 50-60kg |
| bobbin loading & unlosding | shaft type |
| power source | 380V |
| brake | pnematic brake |
MARKET DISTRIBUTION
Our products sell well in the Mid. east , Africa,South America,Asia,etc.The following is the chart of the market distribution.
