9DL Aluminum Rod Breakdown Machine
- Shanghai
- T/T
You May Like
-
Fast aluminum high speed rod breakdown machine-drawing usage
-
Aluminum rod breakdown Producing machine-13DL
-
Aluminum rod breakdown machine-Wire Drawing Machine -high efficience Low price China Supplier
-
HXE-13DL Aluminum rod breakdown machine/Aluminium rod wire drawing machine/ Al RBD
-
aluminum medium speed rod breakdown pulling machine
-
aluminum medium speed rod breakdown machine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HXE | |
| Model Number | HXE-9DL | Usage | Drawing |
Product Description

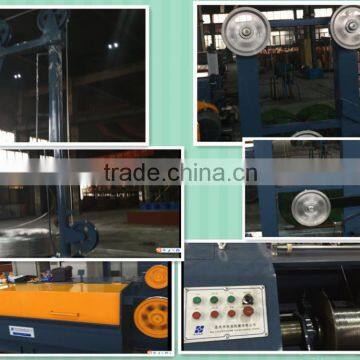

9DL Aluminum Rod Breakdown Machine
Aluminium rod breakdown machine (with automatic dual take up machine) is used to draw aluminium single aluminium wire from 9.5mm(Max.) to 1.7mm – 4.5mm.
I. Compositions of equipments
Name | Quantity |
1.Pay-off | 1 set |
2.HXE-9DLMain drawing machine | 1 set |
3.HXE-SX630 Automatic dual take up machine | 1 set |
4.Electric cabinet | 1 set |
5.Operation panel | 1 set |
6.User manual, including inverter instruction, Installation layout, etc |
|
7.Accessories |
|
II.Main technical parameters
1. Inlet size:9.5mm(Max.)
2. Outlet size:1.7mm – 4.5mm
3. Drawing speed:800m/min
4. Drum speed ratio:1.25
5. Capstan max size:650mm
6.Capstan:Iron cast
7.Pay off method: Portal type
8.Traversing unit: Free rod type
9.Lubrication type: Spray
10.Power source: (customized)
11. Die No:13
12. Main motor:75KW, with AC 75KW inverter drive.
13. Spool motor: Torque motor 40N.M*2set
14. Sped adjustment: By frequency inverter
15. Spool size:500mm-630mm
