Diamond grinding wheels
- shanghai xiamen guangzhou beijing zhuhai chengdu
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hubei, China | Brand Name | changli | |
| Model Number | from 105 to 180mm | Shape | Cup-Shaped | |
| Abrasive | Diamond | Bonding Agent | Metal | |
| Hardness | 75 | Viscosity | 65 | |
| Size | all kinds of size |
Product Description
Features of our diamond grinding wheel:

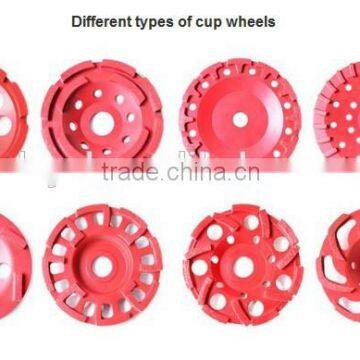

Including single row,double row,turbo and other special types
Fast cutting with minimal dust ,used dry or wet grinding
High working efficiency and using easily
Convenient installation with universal connection
Low-noise,no-dust,friendly surroundings,safety operation
long working life and hardness
We can make the customers' logo.
Specification of diamond grinding wheel:
Application | Diameter | Segment Height (mm) | Segment Thickness(mm) | Segment No. | Arbor (mm) |
Single row diamond grinding wheel | 105mm(4") | 5 | 7 | 8 | M14,5/8"-11,22.23 |
115mm(4.5") | 5 | 7 | 9 | M14,5/8"-11,22.23 | |
125mm(5") | 5 | 7 | 10 | M14,5/8"-11,22.23 | |
150mm(6") | 5 | 7 | 12 | M14,5/8"-11,22.23 | |
180mm(7") | 5 | 7 | 14 | M14,5/8"-11,22.23 |
Application | Diameter | Segment Height (mm) | Segment Thickness(mm) | Segment No. | Arbor (mm) |
Double row diamond grinding wheel | 105mm(4") | 5 | 7 | 16 | M14,5/8"-11,22.23 |
115mm(4.5") | 5 | 7 | 18 | M14,5/8"-11,22.23 | |
125mm(5") | 5 | 7 | 20 | M14,5/8"-11,22.23 | |
150mm(6") | 5 | 7 | 24 | M14,5/8"-11,22.23 | |
180mm(7") | 5 | 7 | 28 | M14,5/8"-11,22.23 |
Application | Diameter | Segment Height (mm) | Segment Width(mm) | Segment No. | Arbor (mm) |
Turbo diamond grinding wheel | 105mm(4") | 5 | 20 | Turbo | M14,5/8"-11,22.23 |
125mm(5") | 5 | 20 | Turbo | M14,5/8"-11,22.23 |
China supplier provide diamond segment for marble and granite cutting
Packaging: box, cartoon, wooden-case etc.
Shipping:
1.Send by Fast Express if sample or urgent order with light weight.The freight is highest,the delivery time is 3-7days.
2.Send by Air if the weight is between 50kg to 100kg.The freight is middle,the delivery time is 7-14days.
3.Send by Sea if the weight is more than 100kg.The freight is lowest,the delivery time is 10-25days
