Water Proof Membrane TPO With Superior Durability
- Qingdao
 - T/T

You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | chensheng | |
| Model Number | xx-tpo |
Product Description
Specifications
plastic membrane1.1.2mm~2.0mm thickness
2.New Technology,easier installation
3.ISO9001:2008 Certification
4.Eco-friendly
TPO roofing waterproofing membrane
TPO is a waterproofing sheet, consisting of thermoplastic polyolefin compound resin materials as the base stock, reinforced with polyester mesh fabric. The thickness: 1.2/ 1.5/2.0mm.
Advantages
1>Weather resistance and durability;
2>Excellent weld ability;
3>No any crisp agents to prevent materials brittleness;
4>Intermediate enhanced polyester mesh fabric to have high tensile strength, fatigue resistance and penetrating resistance suitable for mechanically attached roofing systems;
5>Excellent the same high and low temperature resistance as rubber materials which can keep flexible at -50° C and keep mechanical strength in high temperature;
6>Excellent chemical resistance to acids, bases, and restaurant exhaust emissions;
7>Dimension stability;
8>White-based light-color and smooth surface with high reflection, energy saving and anti-dust functions;
9>Use heat welding for the seam areas to form a reliable seamless waterproof layer.
type I: Homogeneous TPO Membrane
type II: surface with non-woven favric

type III: Internal reinforced

Technical datas
  | Specification  | |||||||
H  | L  | P  | G  | GL  | ||||
The resin thickness of Middle fabric, mm≥  | —  | 0.40  | ||||||
Maximum tension,N/cm ≥  | —  | 200  | 250  | —  | 200  | |||
Tension strength,Mpa≥  | 12  |
  |
  | 12  |
  | |||
Maximum tension elongation,%≥  |
  |
  | 15  |
  |
  | |||
Fracture elongation,%≥  | 500  | 250  |
  | 400  | 200  | |||
Heat treatment size change rate %≤  | 2.0  | 1.0  | 0.5  | 0.1  | 0.1  | |||
Low temperature bend  | -40°C No crack  | |||||||
Water tightness  | 0.3Mpa,2h, No seepage  | |||||||
Attack resistance  | 0.5kg·m,No seepage  | |||||||
Static charge resistance  | —  | 20kg ,No seepage  | ||||||
Seam strip strength ,N/mm≥  | 4.0 or Membranes break  | 3.0  | ||||||
Right-angle tear strength,N/mm≥  | 60  |
  |
  | 60  |
  | |||
Trapezoid tear strength N≥  | —  | 300  | 450  |
  | 350  | |||
Bibulous rate (70°C 168h), %  | After soaking≤  | 4.0  | ||||||
Air-cure later≥  | -0.40  | |||||||

 Heat aging (115°C)
  | Time  | 672h  | ||||||
Appearance  | No blister,flaw,delamination,coherence,hole  | |||||||
Tensile strength retention,%≥  | 90  | |||||||
Elongation rate of keeping,%≥  | 90  | |||||||
Low temperature bend  | -40°C, No crack  | |||||||

 Chemistry resistance  | Appearance  | No blister,flaw,delamination,coherence,hole  | ||||||
Tensile strength retention,%≥  | 90  | |||||||
Elongation rate of keeping,%≥  | 90  | |||||||
Low-temperature bending  | -40°C, No crack  | |||||||
 Artificial weather accelerated aging  | Time  | 1500hb  | ||||||
Appearance  | No blister,flaw,delamination,coherence,hole  | |||||||
Tensile strength retention%≥  | 90  | |||||||
Elongation rate of keeping%≥  | 90  | |||||||
Low temperature bend  | -40°C ,No crack  | |||||||

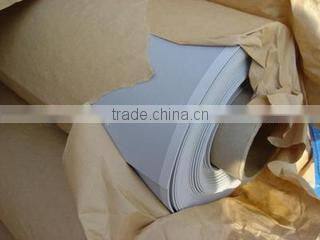

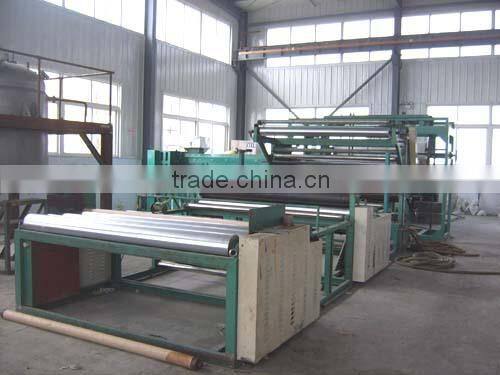

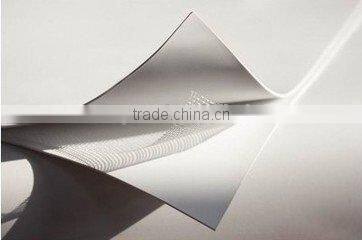

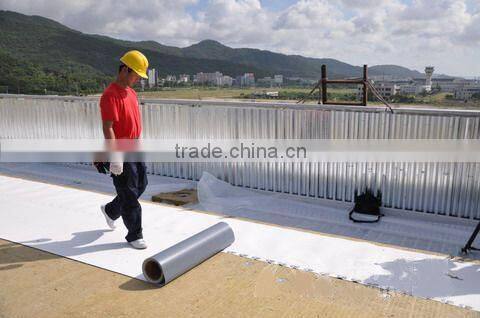

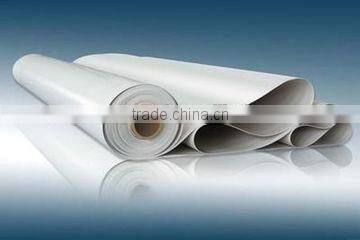

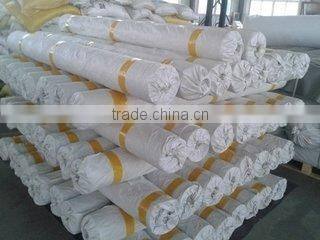

TPO pictures for you reference:



1. Our warranty period is one year against the date of shipment.
2. Free samples of waterproof membranes are available for your closer checking.
3. Well trained and experienced sales person to help you with any of your questions.
4. Strong technical support.
1.PE bags
2.58kg to 100kg /roll,


 The company mainly supply SBS/APP modified bitumen waterproof membrane, Self-adhesive bitumen membrane/Tape, Polythene and polypropylene polymer compound waterproof membrane, PVC waterproof membrane, EPDM coiled rubber waterproof membrane, TPO waterproof membrane,Polyester/Compound felt for SBS/APP membrane, PP Non-woven fabric,Colorful polyurethane waterproof coating and some other relevant waterproofing products.
Products got the approval of ISO9001 certification, and ISO14001 certificate. And some products can meet American ASTM and CE international standards.
