Product Details
Place of Origin | Shandong, China | Brand Name | Chensheng | |
Model Number | Xx-TPO |
Product Description

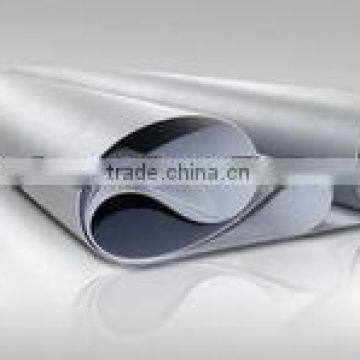

different thickness TPO roof waterproof membrane for roof
Product Introduction
Thermoplastic Polyolefin (TPO) is a waterproof membrane. Its raw material is polymer
and can be reinforced with polyester mesh and with fabric backing,manufactured by advanced extrusion machining technology.
Specifications
Item | Specification | ||
Length(m) | 20m(Special specification can be customized) | ||
Width(m) | Standard width2.05m | ||
Thickness(mm) | 1.2mm | 1.5mm | 2.0mm |
Classification
H-Homogeneous TPO membrane
L-TPO membrane with fabric backing
P-TPO membrane reinforced with fiber
Features
|| It's easy to install with good system integrity, few accessories.
|| Excellent tensile strength, tearing resistance and penetration resistance performance.
|| No plasticizer. They have been tested as having excellent resistance to thermal aging and ultraviolet, durable and exposed.|| Hot-air welding. The peel strength of joint is high.
|| Fast welding speed.
|| Environment friendly, 100% recycled, without chlorine.
Advantage
1> Weather resistance and durability;
2> Excellent weld ability;
3> No any crisp agents to prevent materials brittleness;
4> Intermediate enhanced polyester mesh fabric to have high tensile strength, fatigue resistance and penetrating resistance suitable for mechanically attached roofing systems;
5> Excellent the same high and low temperature resistance as rubber materials which can keep flexible at -50° C and keep mechanical strength in high temperature;
6> Excellent chemical resistance to acids, bases, and restaurant exhaust emissions;
7> Dimension stability;
8> White-based light-color and smooth surface with high reflection, energy saving and anti-dust functions;
9> Use heat welding for the seam areas to form a reliable seamless waterproof layer.
TPO Membrane | Standard: Q/0783WHY | ||||||
NO. | Item | Unit | Value | ||||
N | L | P | |||||
I | II | ||||||
1 | Resin Thickness on Middle Mesh≥ | mm | 0.4 | 0.4 | |||
2 | Tensile Properties | Max. Strength ≥ | N/cm | - | 200 | 196 | 250 |
Tensile Strength≥ | Mpa | 12 | - | - | - | ||
Elongation at Max. Strength ≥ | - | - | 15 | 15 | |||
Breaking Elongation ≥ | % | 500 | 250 | - | - | ||
3 | Dimensional Stability after Heat Treatment ≤ | % | 2 | 1 | 1 | 0.5 | |
4 | Foldability at Low Temperature | -40℃ No cracks | |||||
5 | Watertightness | 0.3Mpa, 2h No penetration | |||||
6 | Resistance to Impact | 0.5kg*m, No penetration | |||||
7 | Resistance to Static Loading | - | - | 20kgs No penetration | |||
8 | Joint Peel Strength | N/mm | 4.0 or membrane broken | 3 | |||
9 | Overlap Joint Strength ≥ | N | - | 290 | |||
10 | Right Angle Tearing Strength | N/mm | 60 | - | - | ||
11 | Joint Shear Resistance | N/mm | - | 245 | 245 | 450 | |
12 | Water Absorption (70℃, 168h) ≤ | % | 4 | 3 |
Packing and Shipping
Packing Details:SBS Modified Bitumen Waterproofing Membrane for Swimming Pool. Packed in rolls with pallets or as per clients' requirement.
Delivery Time:Within 15 days after receipt deposit.
Company Information
Xuxin Waterproof Materials CO.,Ltd is one specialized supplier on waterproof materials.Products got the approval of ISO9001 certificate, ISO14001 certificate. And some products can meet American ASTM and CE international standards.As a public company, we mainly supply SBS/APP modified bitumen waterproof membrane, Seladhesive bitumen membrane/tape,PE/PVC/EPDM/TPO/HDPE Waterproof Membrane, PP non-woven fabric,Waterproof Coating, Drainage Board, Geotextile,Color sand and etc.
Certificates
Products got the approval of ISO9001 certificate, ISO14001 certificate. And some products can meet American ASTM and CE international standards.
