Drip Irrigation System Water Pipe

FOB Price

US$ 0.8 - 2 / Box

5 Boxes(Min. Order)

Port Qingdao

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	DEMETER
Material	PE	Length	30-100meters, 30-100meters
Thickness	0.45mm, 0.45mm

Product Description

Specifications

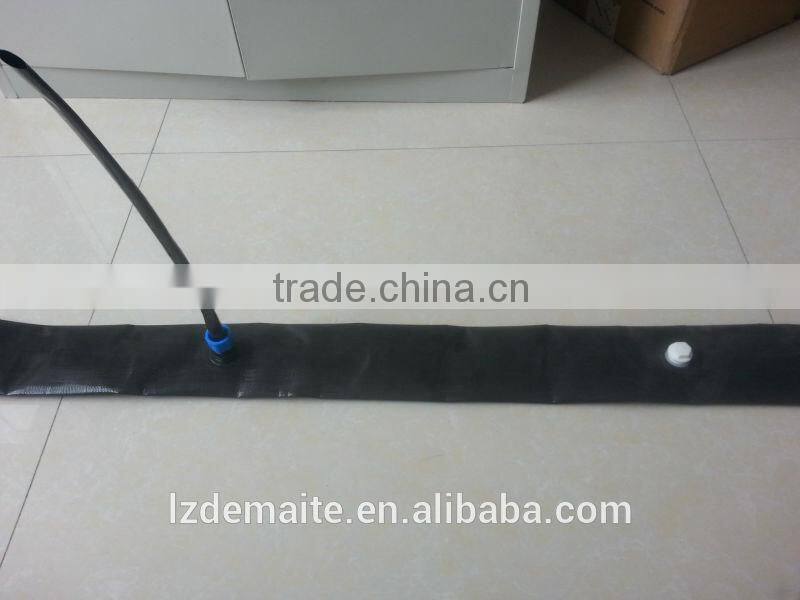

drip irrigation system water pipe
1.Get state approved patent certificate
2.Can be retrieved easily
3.Multi usage

drip irrigation system water pipe

Advantage:

1. Get state approved patent certificate

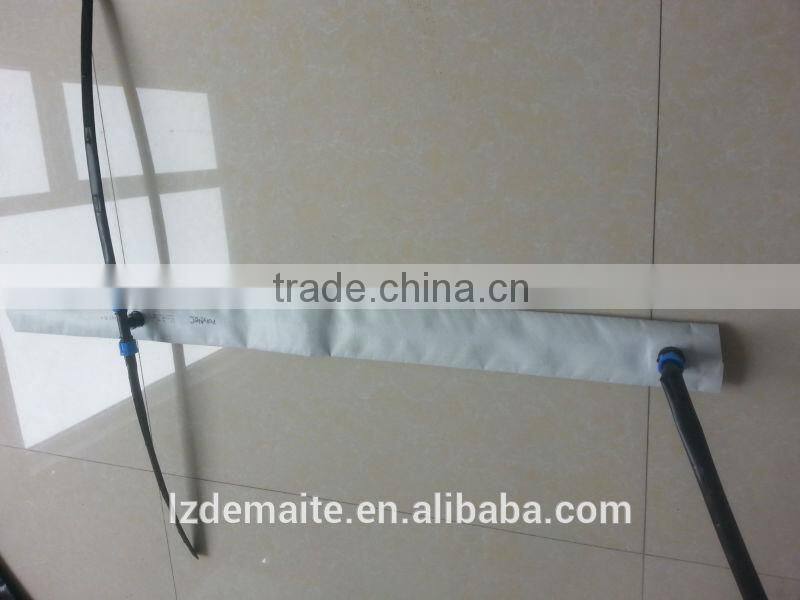

2. Water duct is connected with bypass by mosaic, bypass is connected with capillary tube to distribute the water in the water pipe.

Simple structure, convenient to install and dismantle, high connecting efficiency for the water duct and capillary tube, saving installation time;

Water duct can be retrieved easily and reused with high economic benefits

3. Water duct is locked and sealed up with bypass or end cap by patch, or by pad of bypass and seal groove itself, with good sealing effect

4. For the new type water pipe and assembly, the via hole has inside screw structure and the bypass and end cap has external thread that can be compatible with inside screw

5. End cap can be installed to plug the via hole if the bypass is no need, water delivery net can be arranged according to the requirement

6. To save water and make the limited water in good use

Parametric:

The parametric of PE Composite Water Pipe
Type	Max. working pressure ( bar )			Thickness of the pipe wall (mm)			Internal diameter (mm)	Fold diameter (mm)
Type	Max. working pressure ( bar )			Thickness of the pipe wall (mm)
Diameter	Common	Strengthen	StrengthenⅡ	Common	Strengthen	StrengthenⅡ
50mm	3.5bar	4.5 bar	5bar	0.4mm	0.6 mm	0.7 mm	50 mm	80.7 mm
63mm	3.25 bar	4.25 bar	4.75bar	0.4 mm	0.6 mm	0.7 mm	63 mm	101.2 mm
75mm	3 bar	4 bar	4.5bar	0.4 mm	0.6 mm	0.7 mm	75 mm	120.6 mm
90mm	2.75 bar	3.5 bar	4bar	0.4 mm	0.6 mm	0.7 mm	90 mm	142 mm
100mm	2.5bar	3 bar	3.5bar	0.4 mm	0.6 mm	0.7 mm	100 mm	161.5 mm
110mm	2.25bar	2.75	3.25bar	0.4 mm	0.6 mm	0.7 mm	100 mm	178.1mm

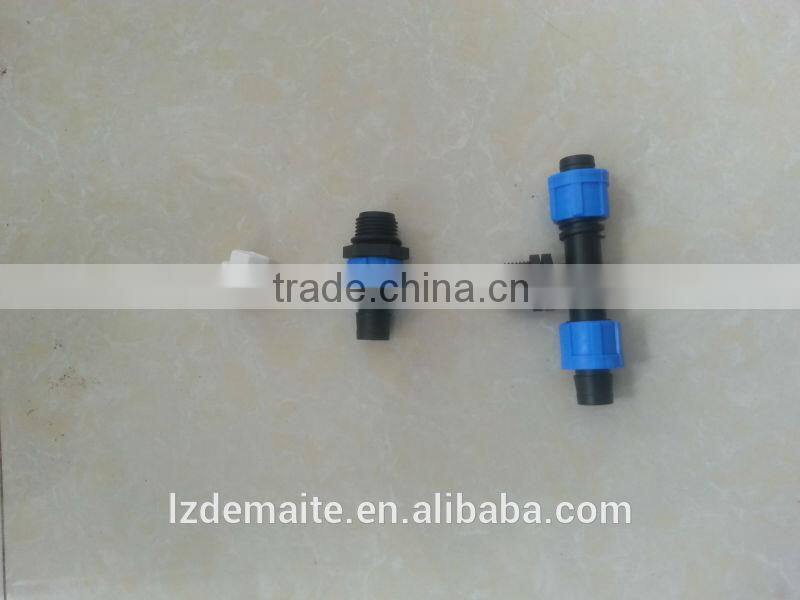

Accessories:

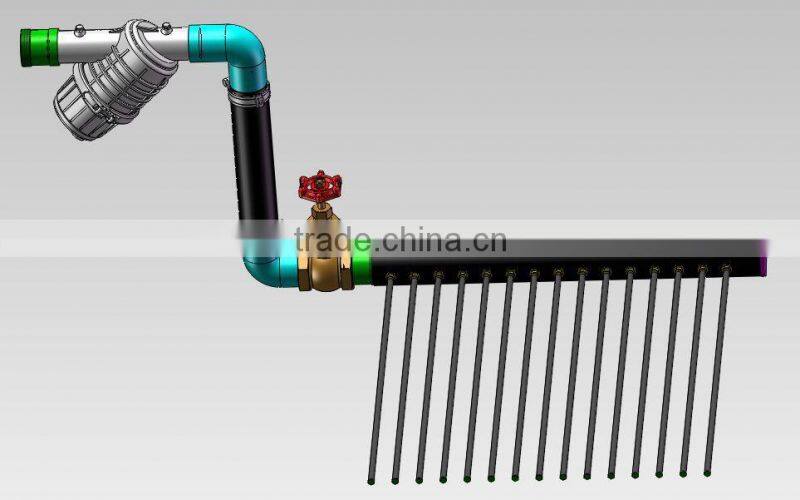

Plan A:

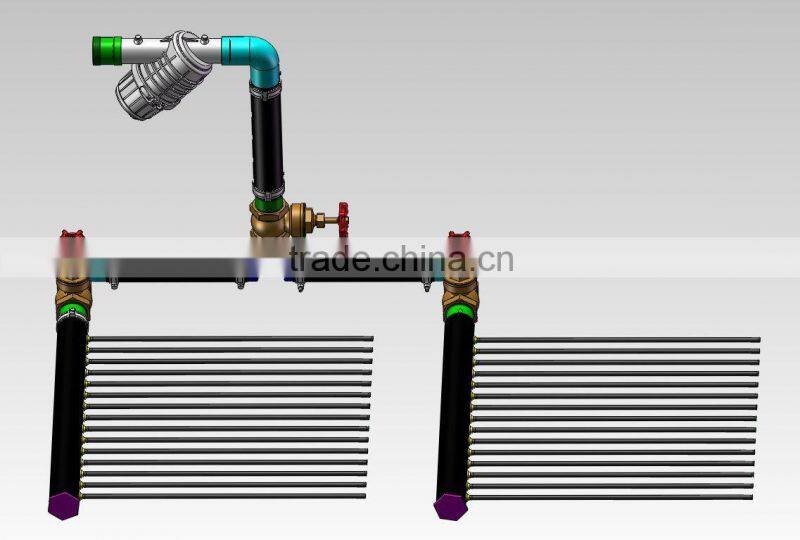

Plan B:

Plan C:

Plan D:

Our Team:

Our Exhibition:

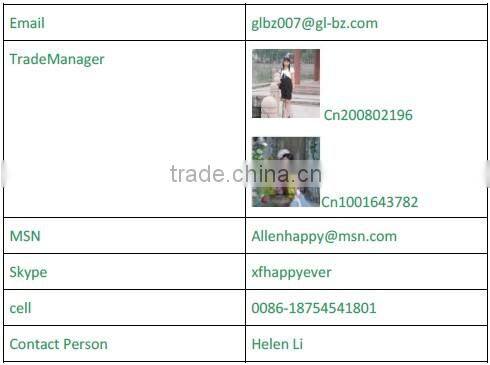

our contaction
