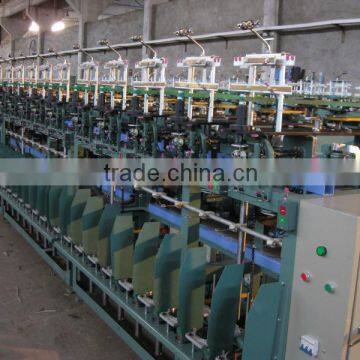

FB753B Chenille Machine
- Shanghai China
- T/T D/P D/A Money Gram Credit Card
You May Like
Product Details
| Condition | New | Application | make chenille yarn | |
| Type | Chenille Machine | Production Capacity | 2.5kg/spindle for 4Nm yarn per day | |
| Place of Origin | Jiangsu, China | Brand Name | Wintex | |
| Model Number | FB753B-80 | Spinning Method | Ring Spinning | |
| Automatic | Yes | Dimension(L*W*H) | 2040x1700x2600mm for every 10 spindles | |
| Weight | 1000kgs /10 spindles | Power(W) | 4.1kw | |
| Certification | CE, ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Chenille Machine is suitable for making chenille yarn, it can make curtains, sofa fabrics, carpets, etc.Application:
FB753B-80 Chenille Machine is suitable for spinning wool, cotton, polyacrylonitrile fiber, polyamide
fiber, polyester, through rotor, 2-3 piles of yarns are cut into short pile and gripped into the 2-ply-core-yarn, then luxurious chenille yarn is obtained.
Specifications:
1) Spindle Gauge: 200mm
2) Spindles per frame: The spindles can be combined to 80 spindles on the basis of 20 spindles.
3) Internal diameter of ring: 112mm
4) Lift Stroke: 280mm(can be adjusted)
5) Lift Speed: Adopts imported inverter and PLC to control it.
6) Count: 0.5 - 8Nm
7) Roller Diameter: 29.5mm
8) Spindle Speed: 4725 - 6000rpm
9) Rotor Speed: 6000-15000rpm
10) Production: 6.8 - 10.5m/min
11) Power: 4.1kw / 20 spindles
12) Every 10 spindles size: 2040* 1700* 2600 (L*W*H)
13) Waste suction and Stop Motion can be installed according to customers' requirment.
