Home > Products > Drainage board > Composite Drainage Board
Composite Drainage Board
- Qingdao
- T/T PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | CHENSHENG | |
| Model Number | Xx-Drain board |
Product Description
Drainage board

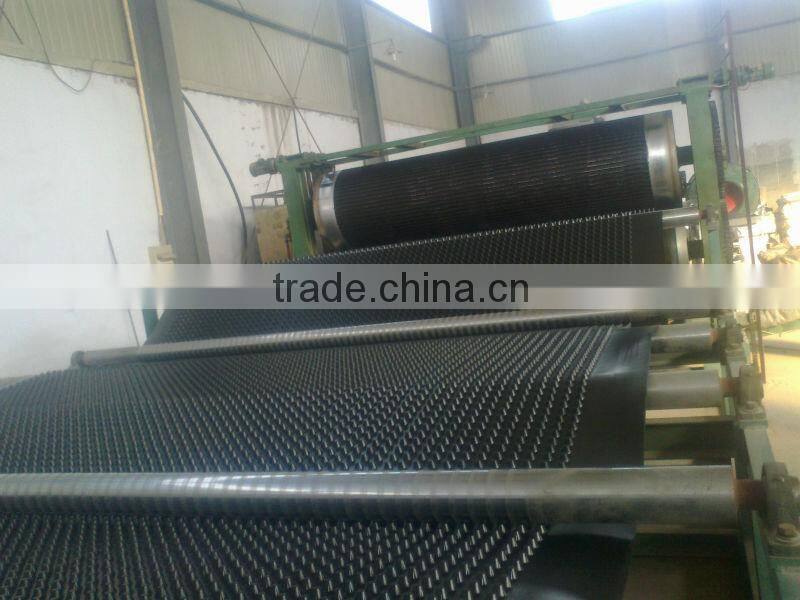

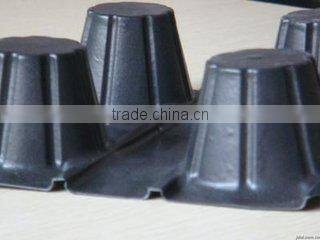

Green roof drainage board with a special plastic sheet extrusion process will be closed to the protruding cylinder shell to form a bump-like membrane, shell continuous, with a high degree of three-dimensional space and some supports, can resist the long-term high-pressure, no deformation. Shell top cover geotextile filter layer, to ensure that the drainage channel will not be blocked by foreign objects and, as particles or concrete backfill.
Specification
1. Dimple height:8/12/16/20 mm
2. High compressive strength
3. Width:1m or 2m
4. Color: Black, white or other
5. Resistance to chemicals, root penetration, microorganism
6. It won't rot when in contact with soil or growing medium
7.Material:HDPE
8.Weight:650g/m2----1270g/m2
9.Thickness:1.0mm----1.5mm
10.Whole thickness(single or double side):10mm----40mm
11.Tensile loading:>150kpa --- >300kpa
12.Drain capacity:5.6—24.8cm3/s
Application

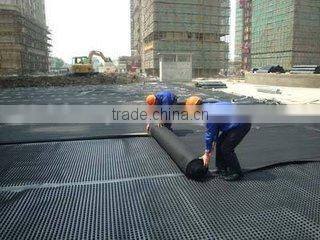

Landscape engineering, garage top greening, roof garden, football field, golf course, beach project.
Municipal engineering, road base, subway, tunnel, landfill.

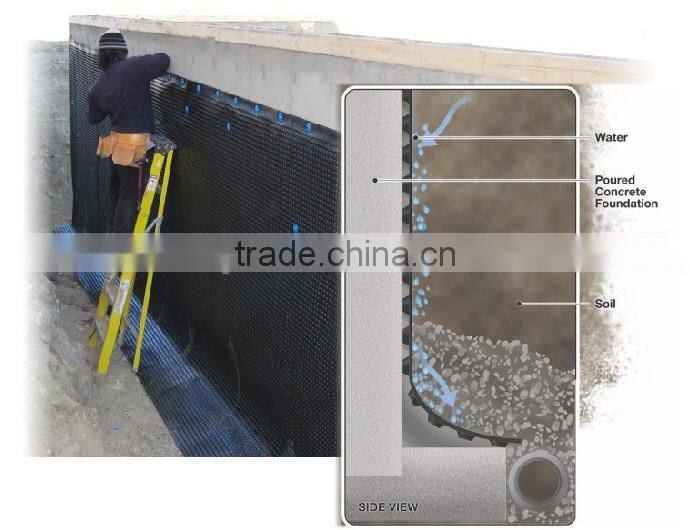

Construction engineering, upper or bottom layer of building foundation, basement wall, bedding filtration and heat insulation.Traffic engineering, highway, railway basement, dam and slope
Parameter Index
Item | Height(mm) | Thickness(mm) | Material | Tensile Strength | Pass water capacity in MD(cm3/s≥) | Spec. (mm) |
XX-H10 | 10 | 1.0 | HDPE | 400 | 5.6 | 2000X30000 |
XX-H20 | 10 | 1.0 | HDPE | 320 | 8.9 | 2400X20000 |
Packing and Shipping
Our Service
1.Sample: The sample is free,you only should pay for the express freight.
2.If you order to us, we promise the quality, if some quality problem happened,then
1)We will dispatch our Quality and Problems Appraisers to make a confirmation.
2)Have a negotiation of the compensation and sign agreements.
3)Our After-Sales Department will perform the duties as the agreements.
Company Information
Xuxin Waterproof Materials CO.,Ltd is one specialized supplier on waterproof materials.Products got the approval of ISO9001 certificate, ISO14001 certificate. And some products can meet American ASTM and CE international standards.As a public company, we mainly supply SBS/APP modified bitumen waterproof membrane, Seladhesive bitumen membrane/tape,PE/PVC/EPDM/TPO/HDPE Waterproof Membrane, PP non-woven fabric,Waterproof Coating, Drainage Board, Geotextile,Color sand and etc.
Frequently Asked Questions
Q1:How to get the sample?
A :We can provide you samples for quality inspection.According to our company policy, samples are free, we only charge the freight fee.The freight fee will be returned If you place the order.
Q2:What's are the MOQ?
A :The MOQ is 500 square meters usually.Also we can according to your condition to set the MOQ.
Q3:How about the delivery time?
A :Delivery time about 15days after your deposit or L/C at sight.
Q4:What kind of payment do you support?
A :T/T, L/C and Paypal are accepted.
Q5:What's your main market?
A :Our products are exported to Southeast Asia,The middle East,West Europe,Africa,Australia and etc.
Q6:Can we visit your factory to inspect the goods for the order?
A :Welcome to visit our factory to inspect the quality.We sincerely hope to establish a win-win cooperation relationship with you.
