Home > Products > FPV Transmitters > SKY-8200 5.8G Wireless 32CH Fpv 200mw Super Small and Light Transmitter Hubsan H301s Spy Hawk
SKY-8200 5.8G Wireless 32CH Fpv 200mw Super Small and Light Transmitter Hubsan H301s Spy Hawk
Negotiable
/ Piece
1 Piece(Min. Order)
- Hongkong Shenzhen
- Credit Card
You May Like
-
SKY-8200 5.8G Wireless 32CH Fpv 200mw Super Small and Light Transmitter 5.8g Fpv 4ch rc Airplane Rtf With Gps Module
-
SKY-8200 Wireless 32CH 5.8g Fpv 200mw Transmitter for Fpv Glasses
-
SKY-8200 5.8G Wireless 32CH Fpv 200mw Super Small and Light Transmitter for Cheerson Cx-20
-
SKY-8200 5.8G Wireless 32CH Fpv 200mw Super Small and Light Transmitter Cx20 Auto-pathfinder Fpv Quadcopter
-
SKY-8200 5.8G Wireless 32CH Fpv 200mw Super Small and Light Transmitter for rc Airplane Fpv
-
Sky-A01 Mushroom 5.8g Fpv Antenna 5.8GHZ Clover Leaf Antenna for Audio Video FPV TX RX
Product Details
| Type | Airplane | Power | Battery | |
| Material | Plastic | Plastic Type | ABS | |
| Scale | Other, fpv transmitter | Radio Control Style | RC Hobby | |
| Place of Origin | Guangdong, China | Brand Name | SKYSIGHTHOBBY | |
| Model Number | SKY-8200 |
Product Description

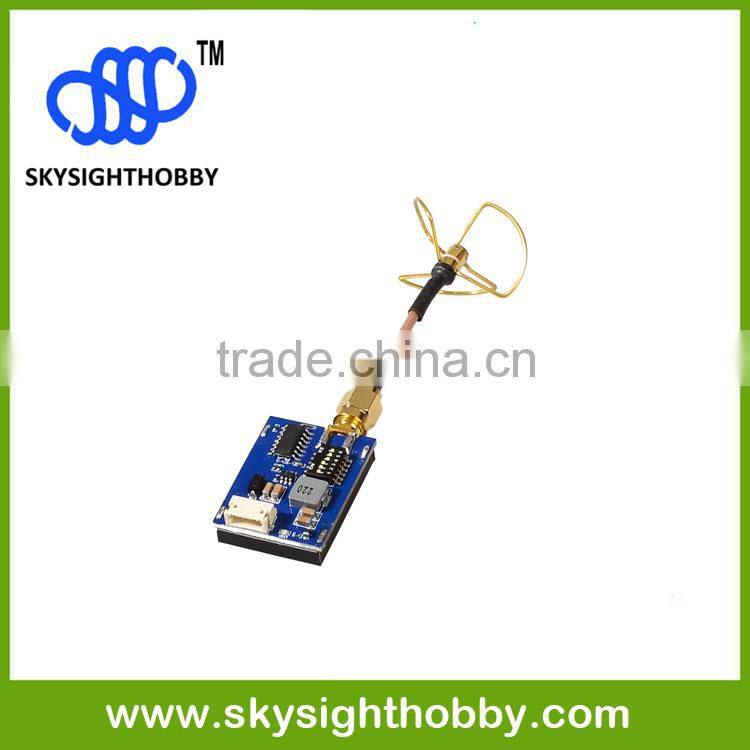

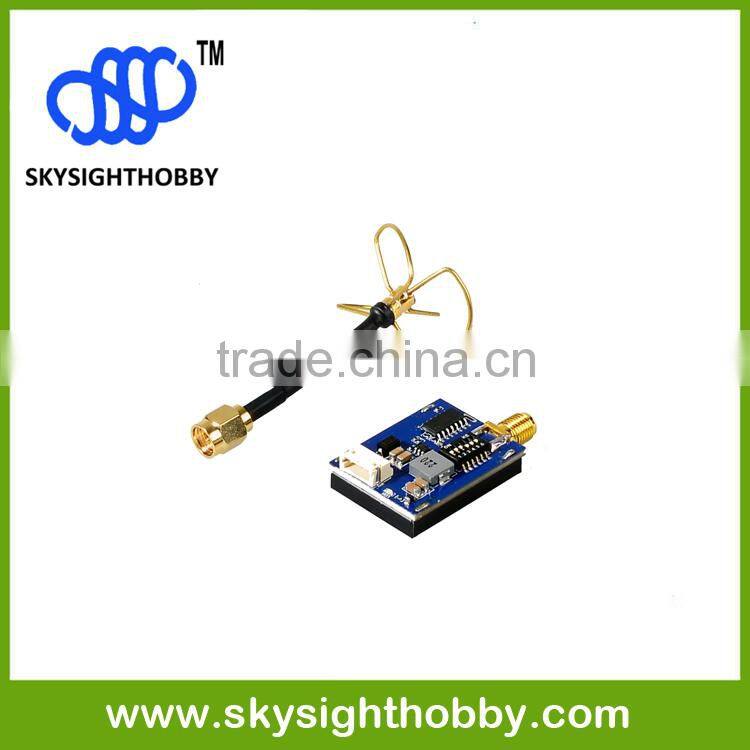

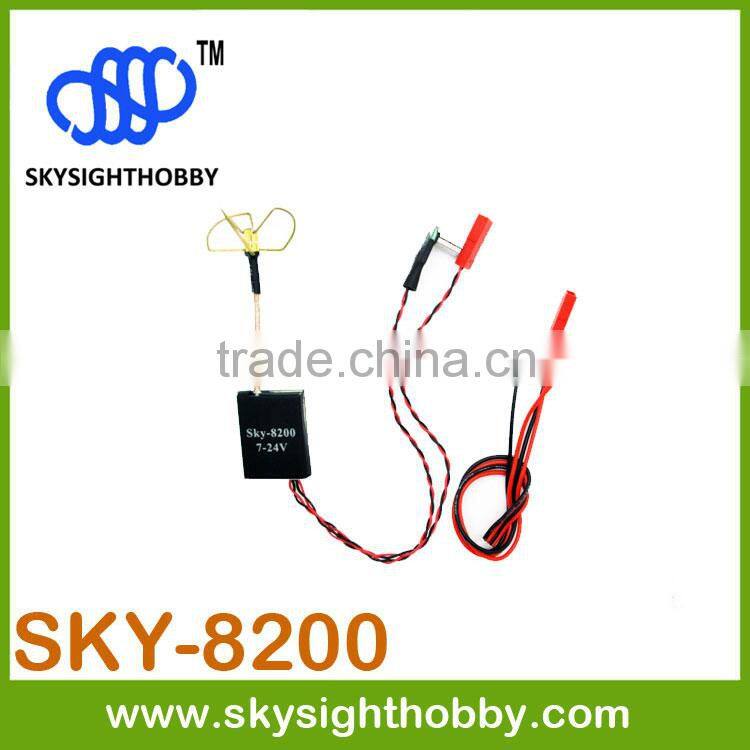

SKY-8200 5.8G wireless 32CH fpv 200mw super small and light transmitter for hubsan h301s spy hawk
Product Overviews
Specifications:
- Modulate: Wideband FM modulate
- Video format: NTSC/PAL
- Output impdentance: 50ohm
- Output power: 23dbm
- Operating voltage: 7-24V(12V typical)
- Supply current: 80mA
- Operating temperature: -10~+85°C
- Video Band Width: 0-8.0Mhz
- Audio carrier frequency: 6.5MHz
- Video input level: 0.8-1.2Vp-p(1.0 typical)
- Video input impedance: 75ohm
- Audio input level: 0.5-2.0Vp-p
- Audio input impedance: 10Kohm
- Dimension: 32*24*9mm
Band Selection and Resulting Frequencies:
| A | B | C | D | |
| 1 | 5705 | 5733 | 5865 | 5740 |
| 2 | 5685 | 5752 | 5845 | 5760 |
| 3 | 5665 | 5771 | 5825 | 5780 |
| 4 | 5645 | 5790 | 5805 | 5800 |
| 5 | 5885 | 5809 | 5785 | 5820 |
| 6 | 5905 | 5828 | 5765 | 5840 |
| 7 | 5925 | 5847 | 5745 | 5860 |
| 8 | 5945 | 5866 | 5725 | 5880 |
Packaging
Package Detail:
- 1 x fpv transmitter (TX)
- 1 x Cable set
