High Speed Competitive Price Small Plastic Extruder Coextrusion Extruder

FOB Price

US$ 80,000 - 90,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Granules
Plastic Processed	ABS	Screw Design	Double-screw
Automatic Grade	Auto	Place of Origin	Zhejiang, China
Brand Name	Xingxu	Model Number	YX-21P
Voltage	380V	Power(W)	160KW
Dimension(LWH)	16500X5200X3300MM	Weight	10T
Certification	ISO,CE	After-sales Service Provided	Engineers available to service machinery overseas

high speed competitive price small plastic extruder coextrusion extruder

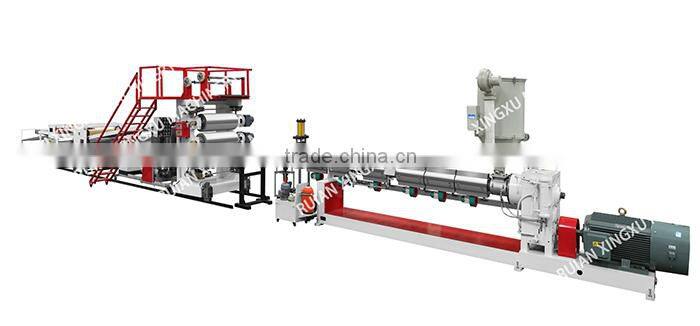

This machine is composed of Φ90 extruder,screen changer, mould, calender, lamination, roll-temp system,

haul-off unit, cutter, collection table.

Product raw material: ABS granules
Product maximum width: 900 mm
The thickness of product: 1-4 mm
The maximum extrusion yield: 200-380 kg/hr. ( around 230kg/hr)
The machine power: total machine 140 kw (heating power 63 kw), normal operation of the actual power about 100 kw
